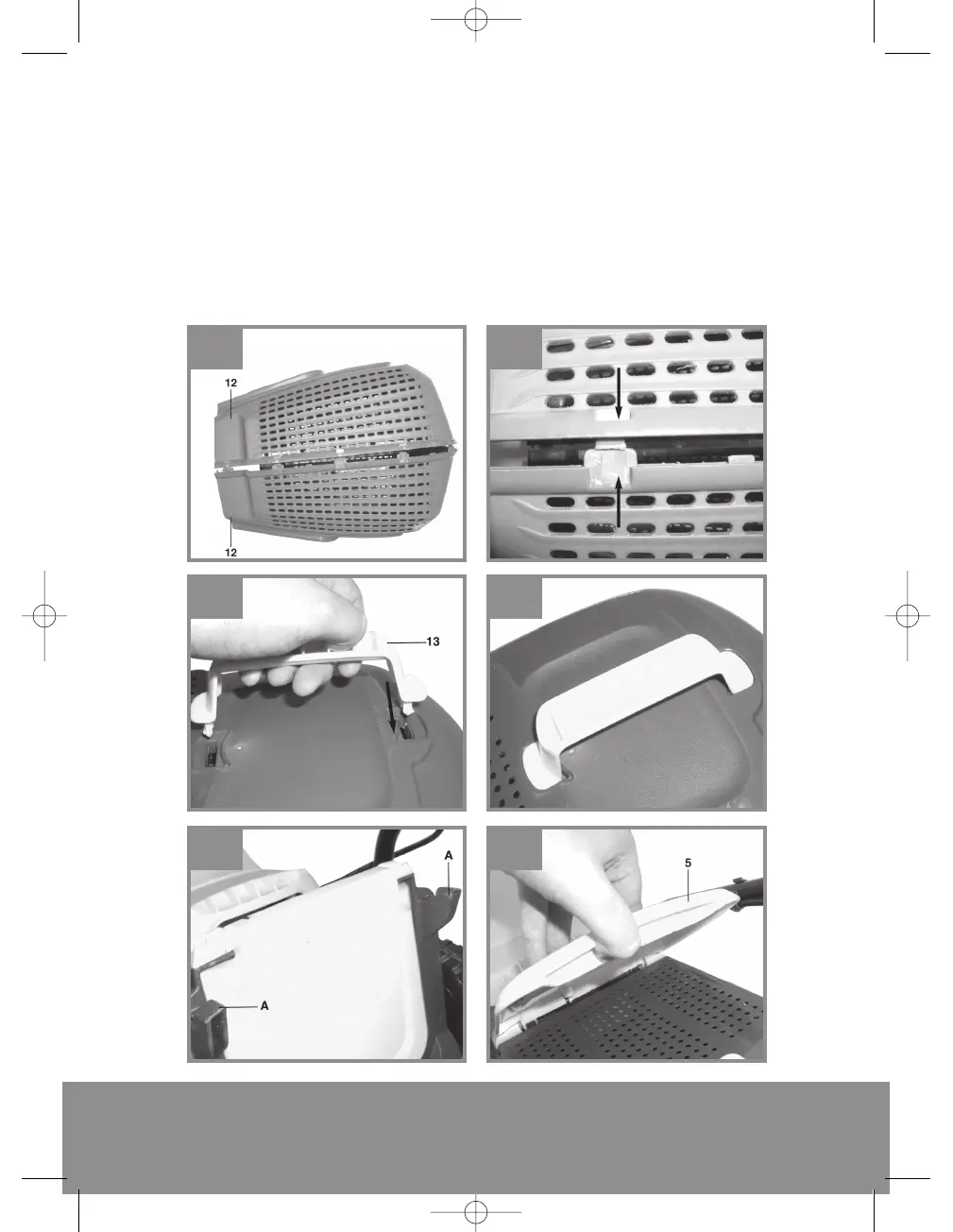

Fitting the grass box (Fig. 4a to 4f)
Fit the two halves of the grass box together (Fig. 4a / Item 12). The
two halves are identical. Ensure that all the plastic lugs engage
correctly (Fig. 4b). Next push the grass box handle (Fig. 4c / Item 13)
into the openings on the grass box. Check that the handle is secure
and correctly positioned as shown in Fig. 4d. Before you fit the grass
bag you must ensure that the motor is switched off and the blade is
not rotating. The grass box must be attached to the two hooks on the
mower (Fig. 4e / Item A). To do this, open the ejector flap with one
hand (Fig. 4f / Item 5) and attach the grass box with the other hand as
shown in Fig. 4f. The ejector flap is held against the grass box by a spring.
Helpline No. UK/Northern Ireland 0151 6491500
Rep. Ireland 1890 946244
Model Number: 41688
11
4b4a
4d4c
4f4e
