ASSEMBLY
Assembly

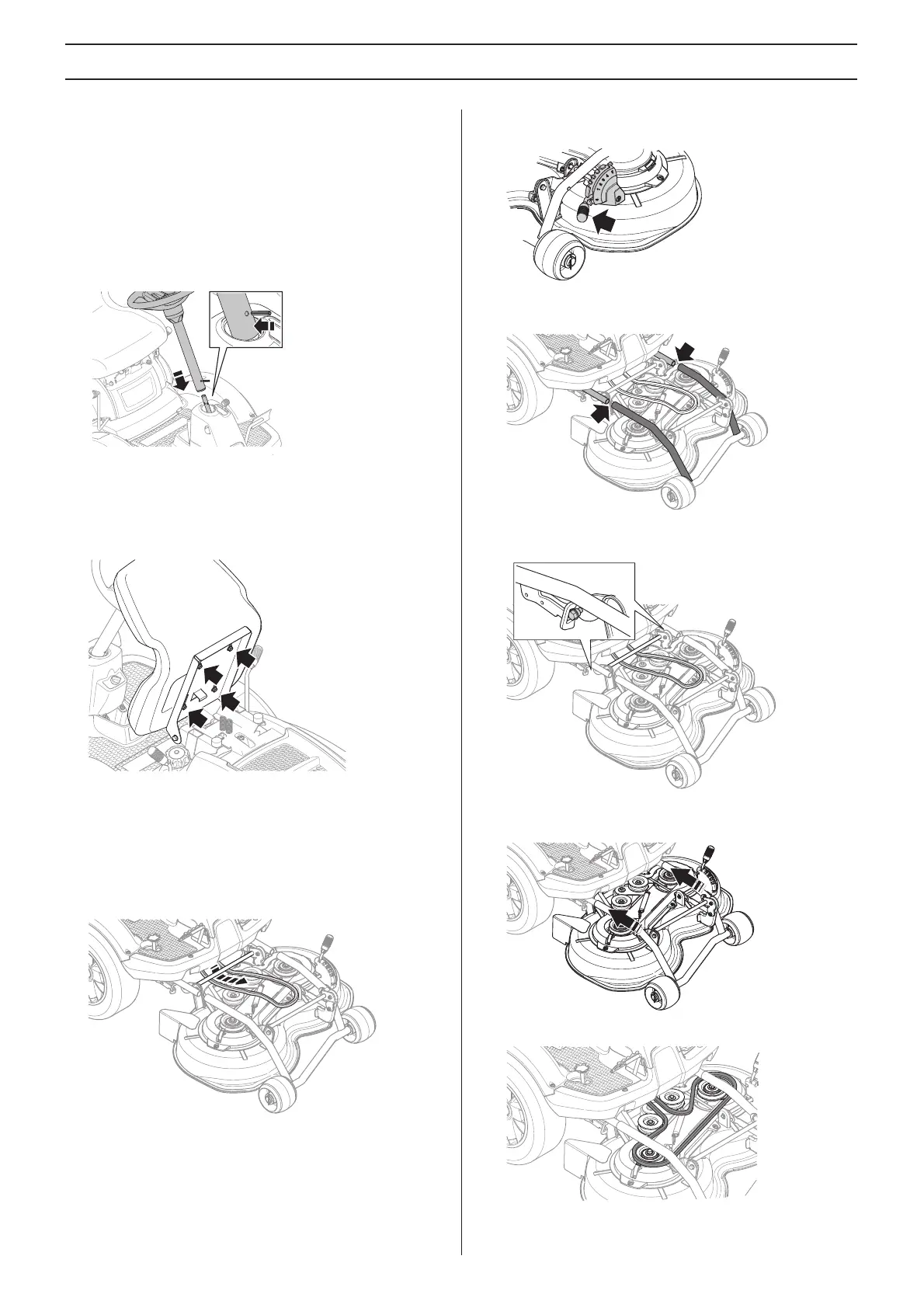

The ride-on mower must first be assembled before it can be
used.
Fit the steering wheel
Fit the steering wheel/steering rod on the control rod shaft,
ensure that the holes are aligned, and knock the spring pin in
all the way through the steering rod.
Fit the seat
Fit the seat with the four supplied washers and screws.
Adjust the seat to the required position.
Fit cutting unit.
Attach the cutting deck according to the following instructions,
which can also be found under the cutting deck cover.
1 Apply and lock the parking brake.
2 Place the belt under the stay of the cutting deck.
3 Check that the lever for setting the cutting height is in the
S position.
4 Fit the cutting deck's pipe together with the deck frame's
pipe.
5 Push the cutting deck in and make sure the guide bolts fit
into the grooves on the deck frame, one on each side.
6 Grab the pipes and push the deck in. Push the deck until
you feel the pipes touch bottom.
7 Fit the belt according to the picture.
