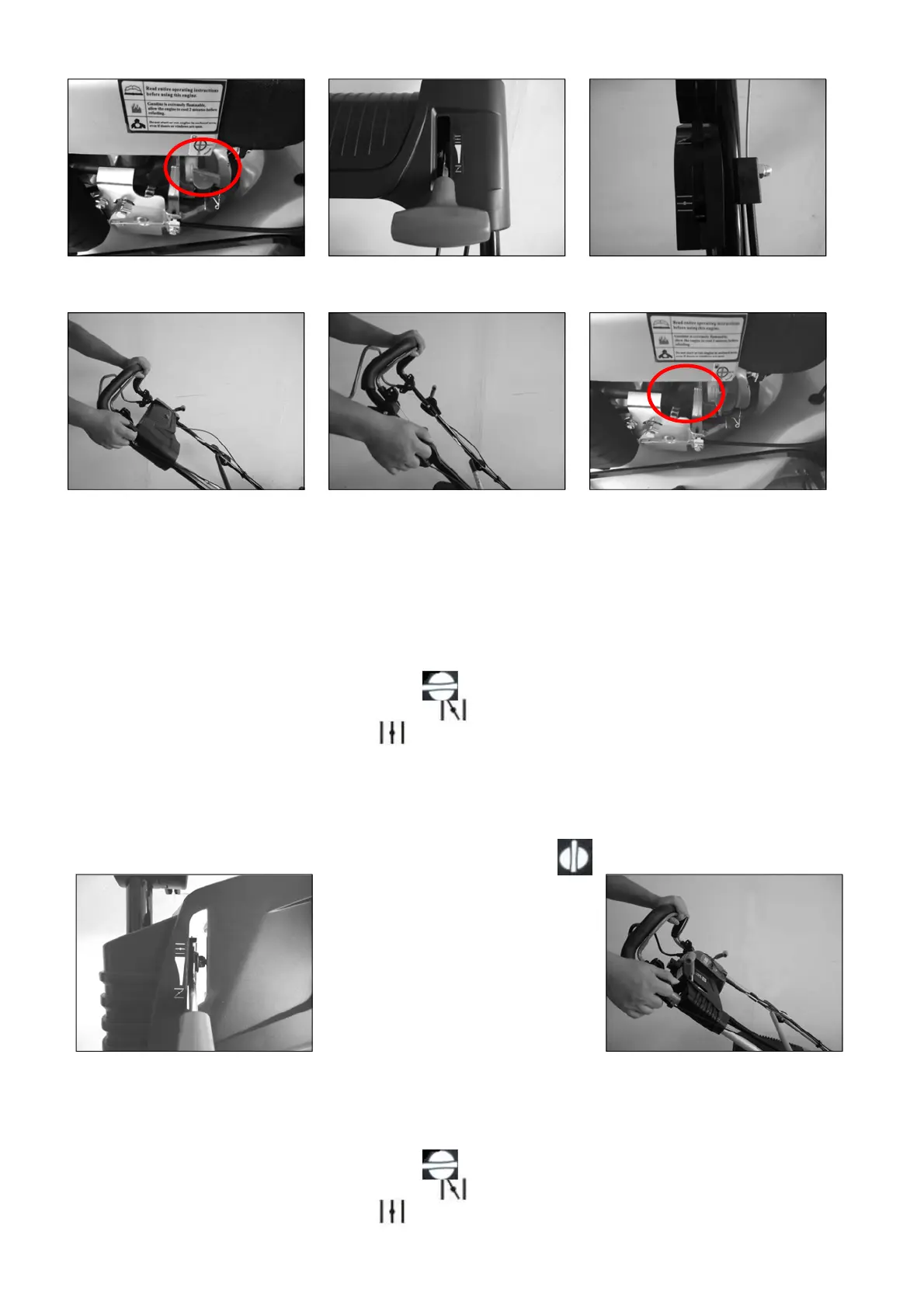

Figure 31 Figure 32. GBD-46R (DYM1676CE-3) Figure 33: GBD-51R (DYM162601)
Figure 34: GBD-46R (DYM1676CE-3) Figure 35: GBD-51R (DYM162601) Figure 36
7.2.1 for GBD-46REV (DYM1676SED-3) GBD-51REV (DYM1678SD-3)
7.2.1.1 starting manually
1. The unit is equipped with a rubber tip #10 on the spark plug, make sure it is fastened securely.
2. Open the fuel valve (fig. 31). Set it to the “ “ position.
3. For a cold start, turn the choke lever #13 to “ ” position. Immediately after the engine starts
turning, turn the choke lever to the “ ” position (fig. 37).
4. Standing behind the unit, push & hold the brake control handle against the upper handle (fig. 34).
5. Pull out the starter handle slowly until you feel a resistance in the rope. Then completely pull the rope out
with one fast movement. Once the engine starts, return it slowly to the rope guide bolt (fig. 38).
Release the brake control handle to stop engine and blade.
6 After having finsihed to mow, please turn the fuel lock to the ” ”.position (fig. 36).
Figure 38
7.2.1.2 starting electrically
1. The unit is equipped with a rubber tip #10 on the spark plug, make sure it is fastened securely.
2. Open the fuel valve (fig. 39). Set it to the “ “ position.
3. For a cold start, turn the choke lever #13 to “ ” position. Immediately after the engine starts
turning, turn the choke lever to the “ ” position (fig. 40).
