Garland M2R User Manual

Garland Commercial Ranges Ltd.
1177 Kamato Road,
Mississauga, Ontario
L4W 1X4 CANADA
General Inquires 1-905-624-0260
USA Sales, Parts and Service 1-800-424-2411
Canadian Sales 1-888-442-7526
Canada or USA Parts/Service 1-800-427-6668

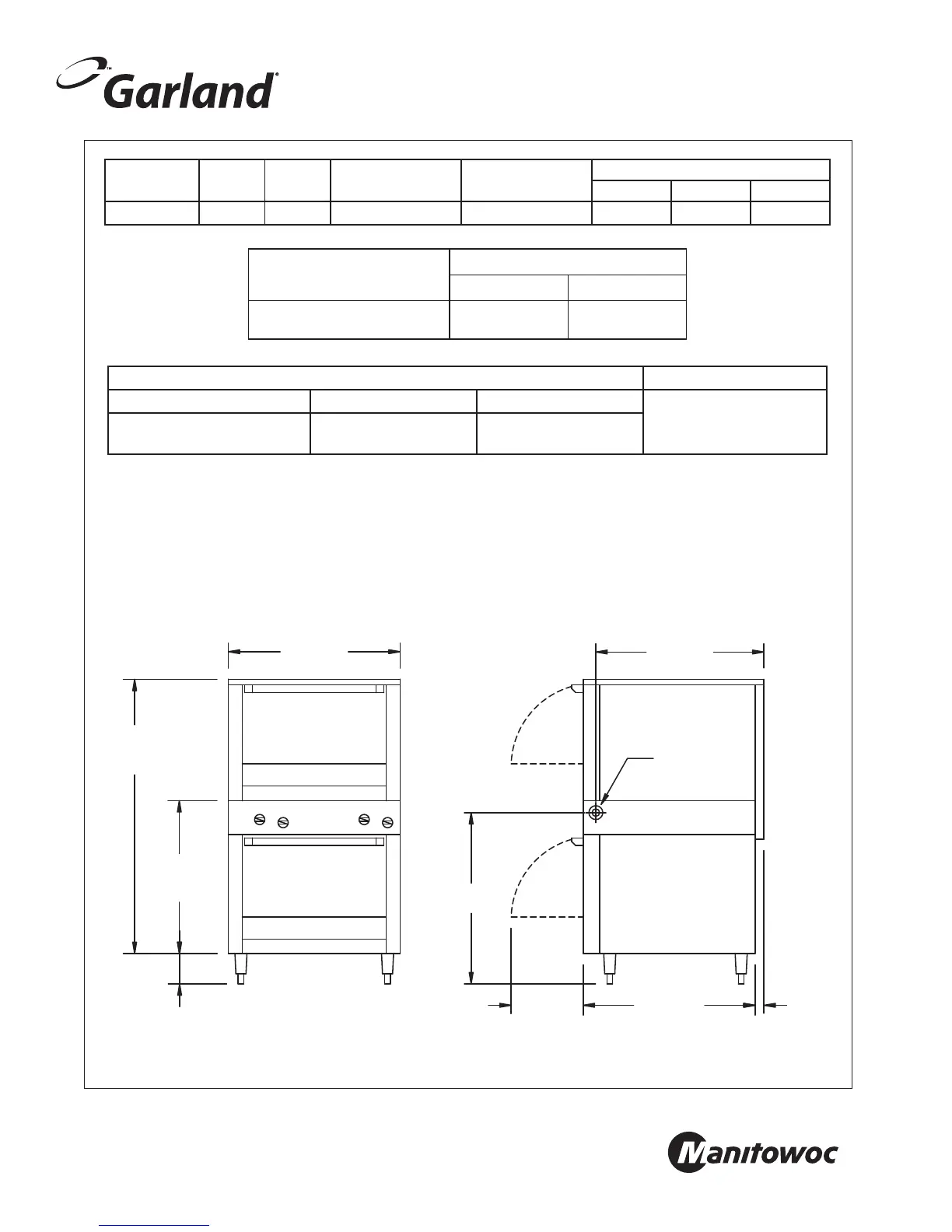

Master Series Heavy Duty Double Oven
Fo r m# M 2R (11/11/13)
54-1/4"
[1378mm]
M2R
30-1/4"
[768mm]
M1R
6"
[152mm]
34"
[864mm]
33-1/4"
[845mm]
1-1/4" NPT
GAS INLET
33-7/8"
[860mm]
14-1/4"
[362mm]
34"
[864mm]
1-3/4"
[44mm]
Product
Width:
In(mm)
Depth:
In(mm)
Height: In(mm)
(w/ NSF Legs)
Height: In(mm)
(w/o NSF Legs)
Oven Interior: in(mm)
Width Depth Height
M2R 34(864) 38(965) 60 -3/8(1534) 54-3/8(1381) 26 -1/4(667) 29(737) 13-1/2(343)
INPUT-BTU/hr
M2R
Natural Propane
Oven Totals
80,000 (23.44kW) 70.000 (20.50kW)
R=Range w/Oven
INSTALLATION NOTES Shipping Wt: (Lb/Kg) – Cu Ft
Combustible Wall Clearances ¹ Entry Clearances Operating Pressure
M2R 730/331– 100
Sides: 6” (152mm)
Back: 6” (152mm)
Crated:39-1/4”(997mm)
Uncrated: 34-1/4” (870mm)
Natural:6WC(15mbar)
Propane:10WC(25mbar)
¹NOTE:Installationclearancereductionsareapplicableonlywherelocalcodespermit.
Data applies only to North America
Gas input ratings shown here are for installations up to
2,000 ft. (610m) above sea level.
Specify altitudes over 2,000 ft.
Please specify gas type when ordering.

Garland M2R Specifications

General

Brand	Garland
Model	M2R
Category	Oven
Language	English
