5
tension testers are available from drive belt suppliers.
Drive belts should be adjusted after the first 40 hours
of use and every three months after that.
In addition to adjustments explained in the
maintenance instructions, you may attempt repairs
your self. However, if you are not sure how to repair
the unit, be sure to request service from a qualified
technician or your local distributor.
THE CONTROLS

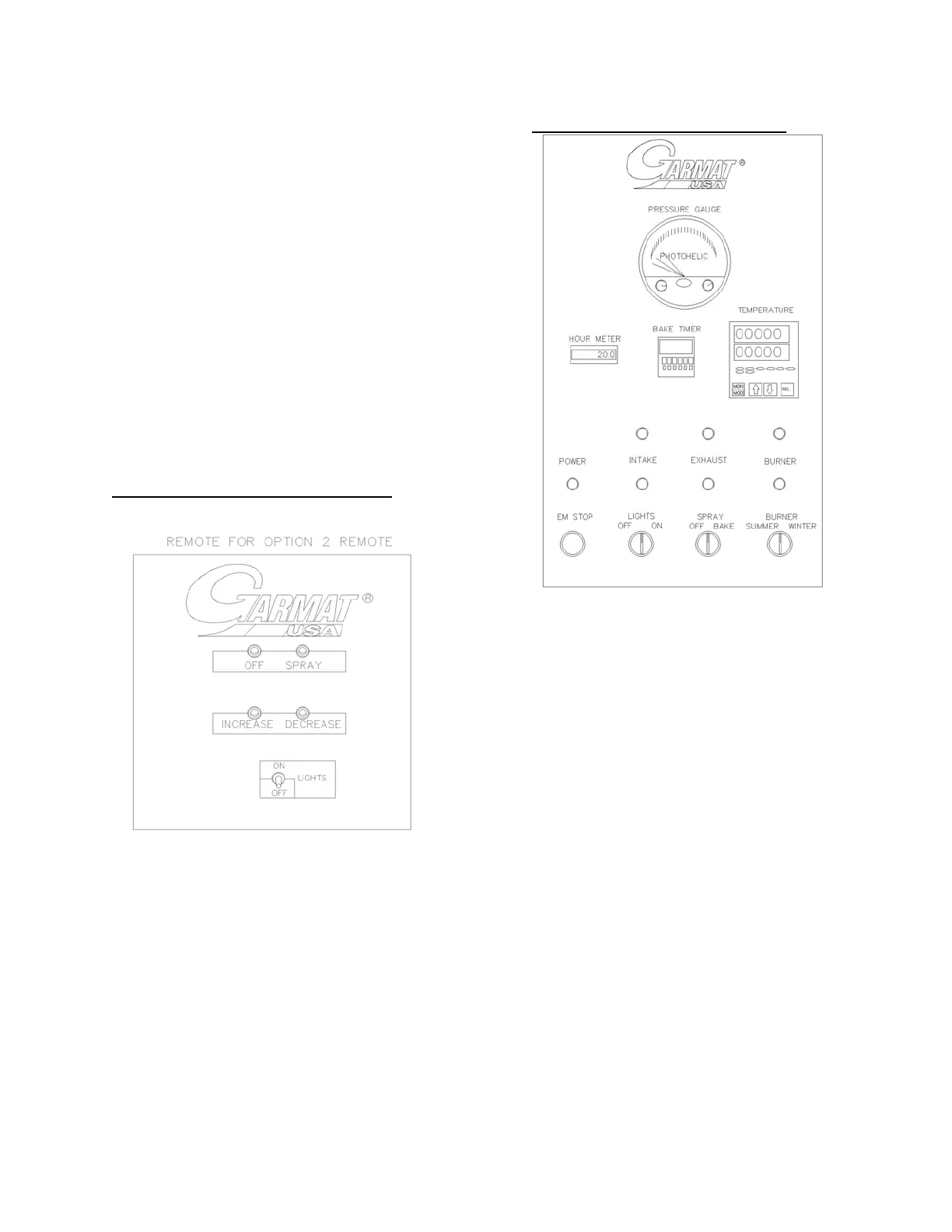

Identification of components. The control
components are located on the face of the Remote
Control Panel. There are three available options for
control of the booth.
44006(X) STANDARD FRONTIER:
1. SPRAY SWITCH, is a black push button
switch that will start the intake and exhaust
fans when pushed.
2. OFF SWITCH, is a black push button
switch that will turn off the intake and
exhaust fans when pushed.
3. LIGHT SWITCH, is a toggle switch that
turn the lighting on and off.
4. INCREASE/DECREASE PRESSURE
SWITCHES, are black push buttons that
open and close the pressure damper.
46008(X) DELUXE FRONTIER:
1. EMERGENCY (EM) STOP SWITCH is red
in color.
2. LIGHTS ON/OFF SWITCH
3. OFF/SPRAY/BAKE SWITCH OR
OFF/SPRAY SWITCH
4. BURNER SUMMER/WINTER SWITCH
5. POWER PILOT LIGHT (GREEN) indicates
booth is ready for or already in operation when lit.
6. THE INTAKE PILOT LIGHT (RED), THE
EXHAUST PILOT (RED) OR THE BURNER
PILOT (RED), when lit indicates a problem exists
with the Intake Motor, the Exhaust Motor, or the
burner safeguard system.
7. HOURMETER records hours of operation in
the spray mode. The hour meter is used to
schedule filter replacement.
8. BAKE TIMER is energized only during the
bake mode. This timer features a bar (top portion
of unit), which initializes at 100% at the right and
decreases to 0 at the end of the timed period. The
mode indication (lower left corner of the timer)
should be set at C. The bake time is set via
thumbwheels (lower center). The timer function
(lower right) should be set at M for minutes.
