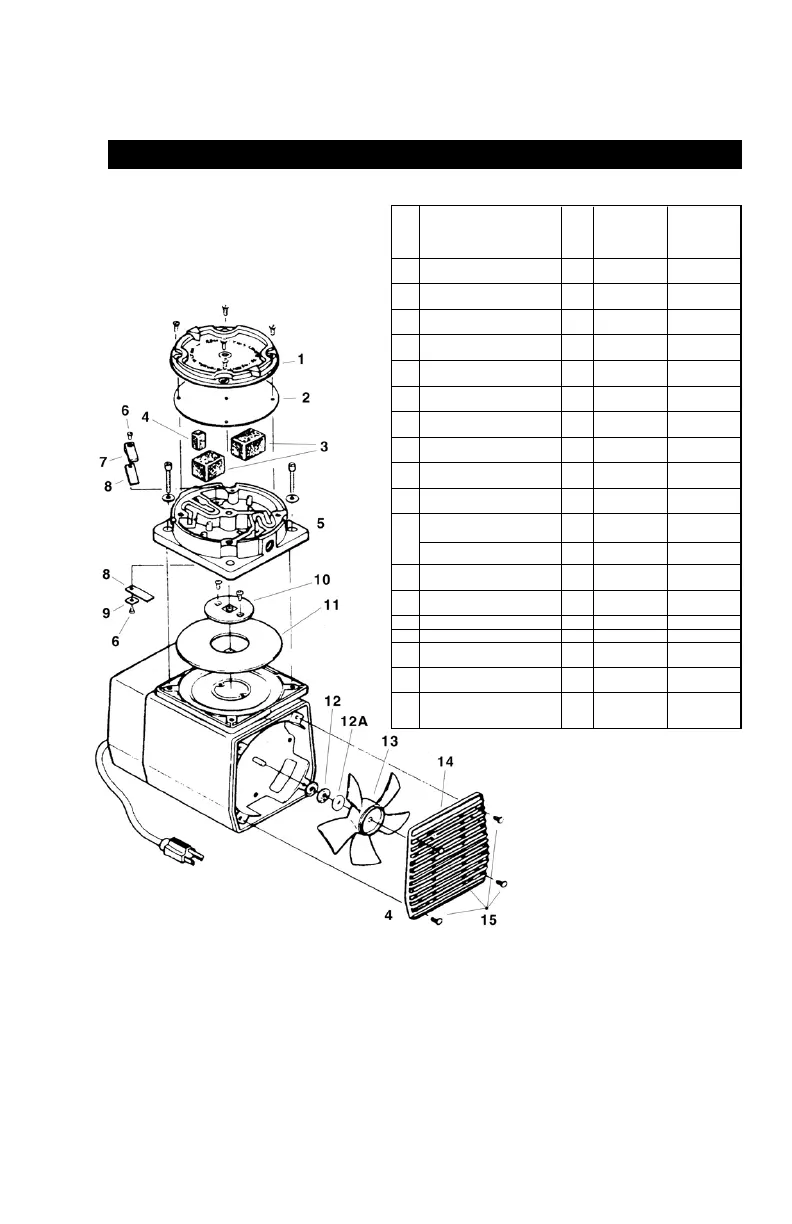

Gast DOA Shown - DAA;DOA Series Exploded View

5
REF DESCRIPTION QTY DOA-P101-AA
DOA-P101-BN DAA-V155-EB*
1 COVER 1 AF808
2 AF808
2 ∆ HEAD GASKET 1 AF820
2 AF820
3 ∆ FILTER/MUFFLER ELEMENT 2 AT713
4 AT713
4 ∆ FILTER ELEMENT 1 AT712A
2 AT712A
5 HEAD 1 AF804
2 AF804
6 ∆ VALVE SCREW 2 BB317
4 BB317
7 ∆ VALVE LIMITER 1 AF856
2 AF856
8 ∆ LEAF VALVE 2 AF817
4 AF817
9 ∆ VALVE RETAINER 1 AF819A
2 AF819A
10 RETAINER PLATE 1 AF809
2 AF809
11 DIAPHRAGM 1 AF818A****
Compressor-Blue 2 AF818A****
DIAPHRAGM
Vacuum-RED 2 AF818B
12 FELT SPACER 3 AA929
6 AA929
12A SPACER 1 AD996
2 AD996
13 FAN - Clockwise 1 AT837 AT837
13A FAN - Counterclockwise 1 AT837A
14 GRILLE 1 AF807
2 AF807
15 RIVOT 4 AE946
8 AE946
*** SERVICE KIT 1 K294A
2 K294K
EXPLODED PRODUCT VIEW, PARTS & ORDERING INFORMATION
DAA / DOA SERIES
* DOA shown. The Double-ended (DAA – not illustrated) models are two DOAs mounted back to back with heads rotated.
*** Item not shown.
****Pattern side up for compressors. Pattern side down for vacuum pumps.
∆ Denotes parts included in the Service Kit.
∆ The service kit may contain parts for more than one model or style diaphragm pump. Parts not needed may be discarded.
Parts listed are for stock models. For specific OEM models, please consult the factory.
When corresponding or ordering parts, please give complete model and serial numbers.
