GasTech R Series User Manual

Natural Gas Equipment Tecnologies
Type R

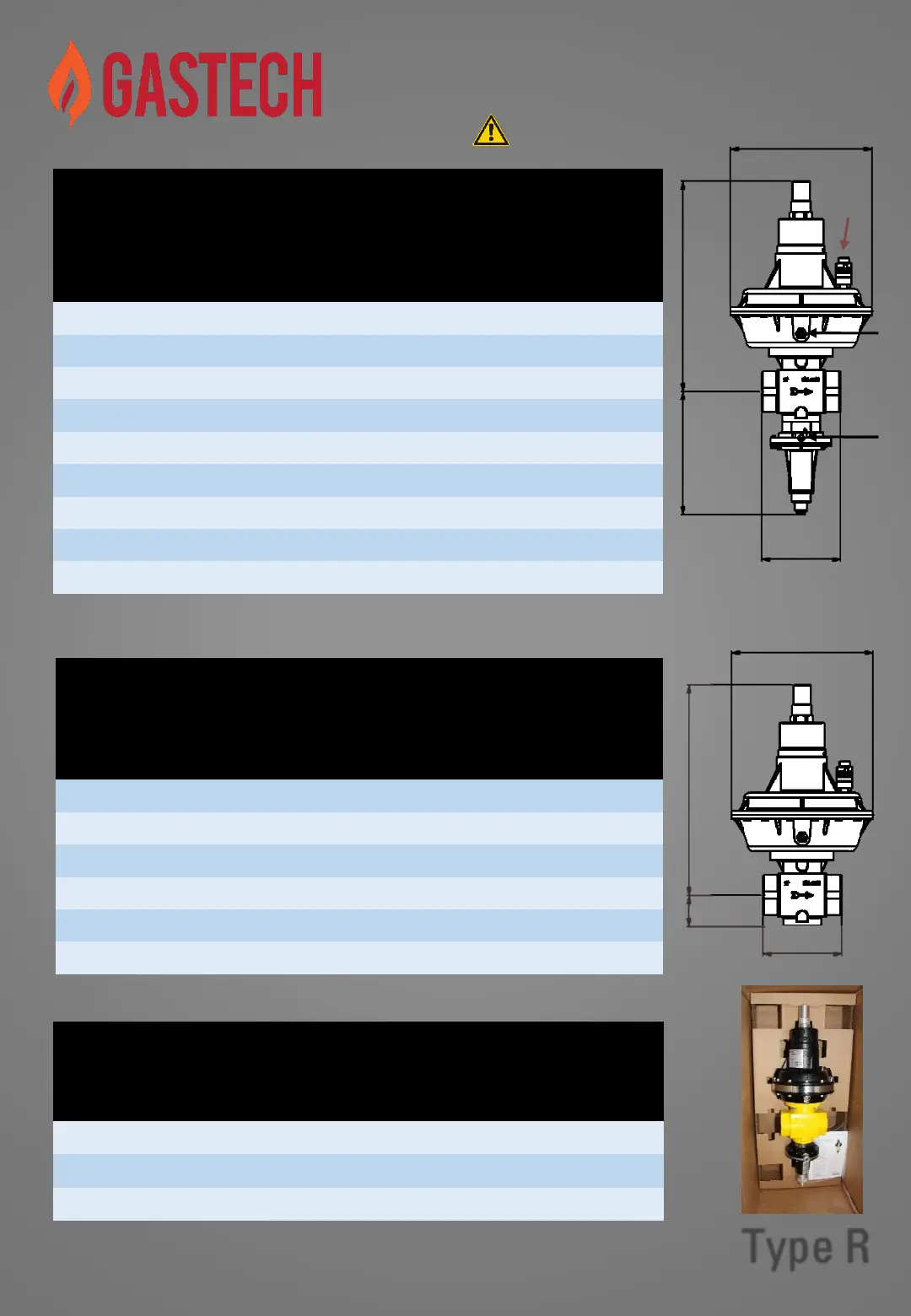

ÖLÇÜ VE AĞIRLIKLAR REGULATOR+SSV
DIEMENSIONS AND WEIGHTS
Kod
Code
Çap
Connec.
A B C D imp Kg
R25/S BP 1’’ x 1’’ 210 104 238 195 10 5.2
R25/S MP 1’’ x 1’’ 210 104 238 195 10 5.2
R25/S AP 1’’ x 1’’ 210 104 238 195 10 5.2
R40/S BP 1’’1/2 x 1’’1/2 210 132 238 195 10 6
R40/S MP 1’’1/2 x 1’’1/2 210 132 238 195 10 6
R40/S AP 1’’1/2 x 1’’1/2 210 132 238 195 10 6
R50/S BP 2’’ x 2’’ 280 156 410 220 10 14
R50/S MP 2’’ x 2’’ 280 156 410 220 10 14
R50/S AP 2’’ x 2’’ 210 156 395 220 10 14
Tüm ölçüler mm
All dimensions in mm
A
B
C
D
G¼’’
İmp.
İmp.
B
A
C
D
ÖLÇÜ VE AĞIRLIKLAR REGULATOR
DIEMENSIONS AND WEIGHTS
Kod
Code
Çap
Connec.
A B C D imp Kg
R25 BP-MP 1’’ x 1’’ 210 104 238 195 10 4.0
R25/S AP 1’’ x 1’’ 210 104 238 195 10 4.4
R40 BP-MP 1’’1/2 x 1’’1/2 210 132 238 195 10 4.8
R40 AP 1’’1/2 x 1’’1/2 210 132 238 195 10 4.8
R50 BP-MP 2’’ x 2’’ 280 156 410 220 10 13
R50 AP 2’’ x 2’’ 210 156 395 220 10 13
AMBALAJ ÖLÇÜ ve AĞIRLIKLARI / PACKAGING WEIGHTS
Kod
Code
DIEMENSIONS VOLUME WEIGHT
R25/S 40 x 25 x 25 0.025 6.5
R40/S 40 x 25 x 25 0.025 7.0
R50/S 75 x 30 x 30 0.067 15.2
