Gate NanoASR User Manual

08
WWW.GATEE.EU

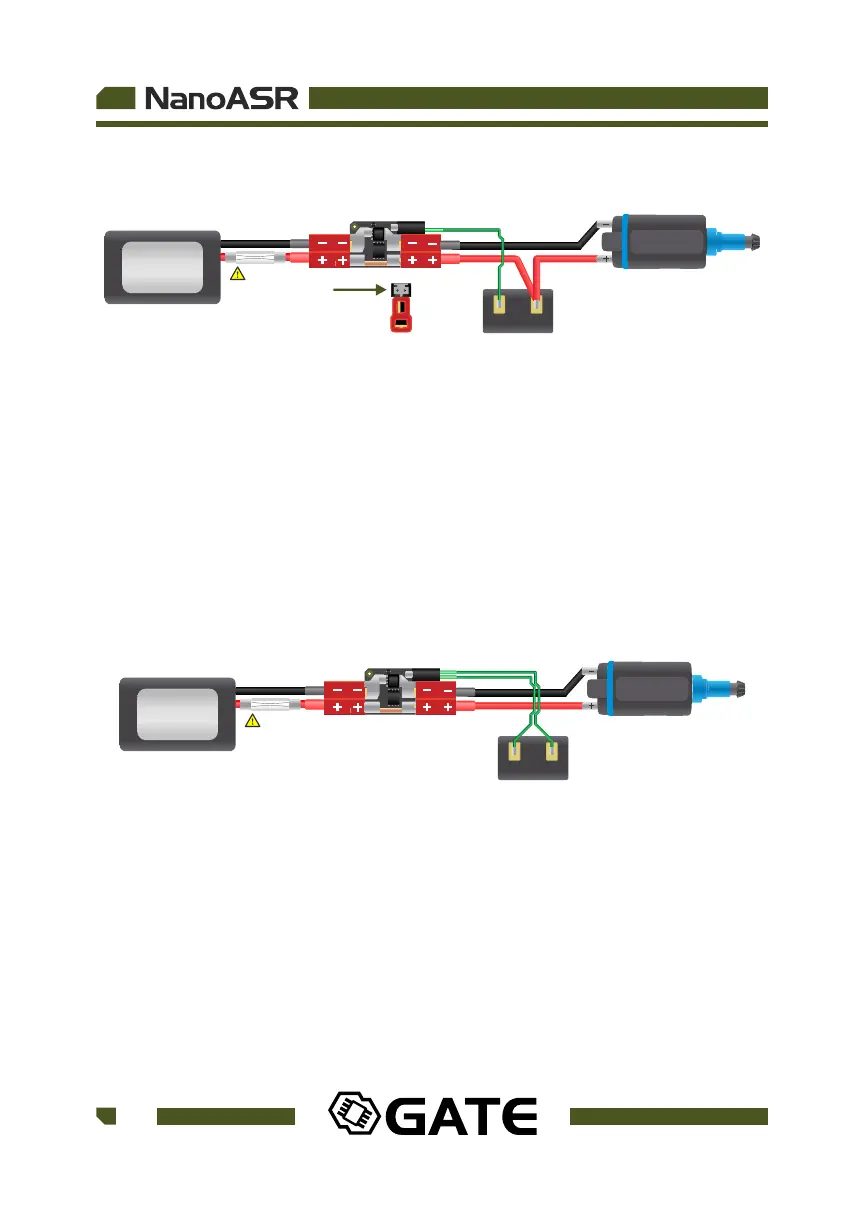

Fig 2. Connection-modification scheme - the top view
b) Installation of with replacement of wires
Replacing the existing AEG wiring with a high-quality, low-resistance wiring in
conjunction with the installation of a MOSFET allows for the ultimate in efficiency.
16 awg or thicker wire is recommended. Solder the double signal wire (04 -
provided with the kit) to the contacts, according to the Figure 3.
NanoASR
Fig 3. Complete re-wiring scheme
USER GUIDE
03
TOP PIN
AEG Motor
CONTACTS
BATTERY
up to 14.8V
FUSE
BATTERY
up to 14.8V
FUSE
04
AEG Motor
CONTACTS
