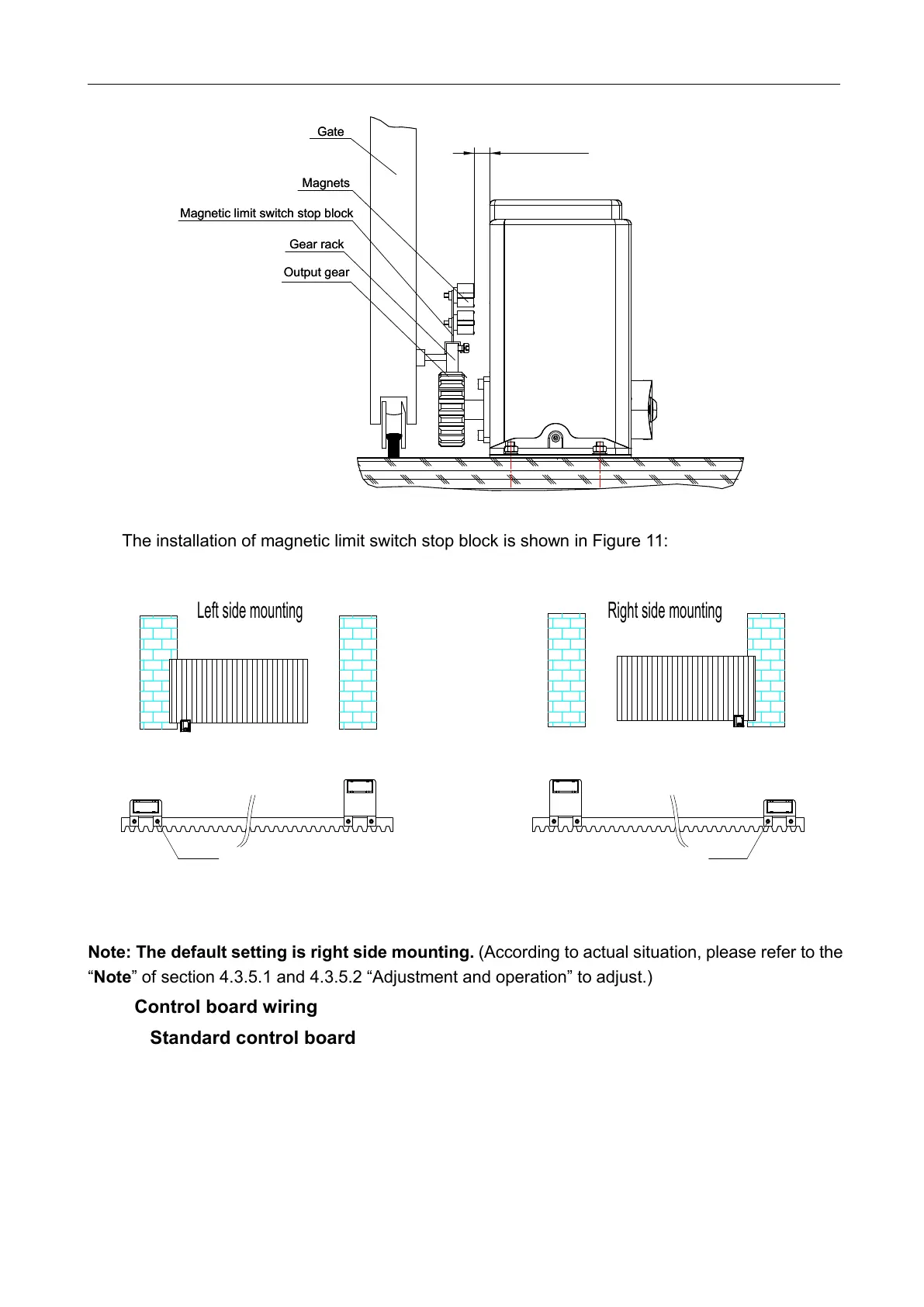

GateGate
MagnetsMagnets
MagneticMagnetic limitlimit switchswitch stopstop blockblock
GearGear rackrack
OutputOutput geargear
≤20mm
Figure 10
The installation of magnetic limit switch stop block is shown in Figure 11:
M6×18M6×18 M6×18M6×18
Left side mounting
Right side mounting
Figure 11
Note: The default setting is right side mounting. (According to actual situation, please refer to the
“Note” of section 4.3.5.1 and 4.3.5.2 “Adjustment and operation” to adjust.)
4.3.5 Control board wiring
4.3.5.1 Standard control board
