4”-6”
Approx.
4”-8”
Approx.
!

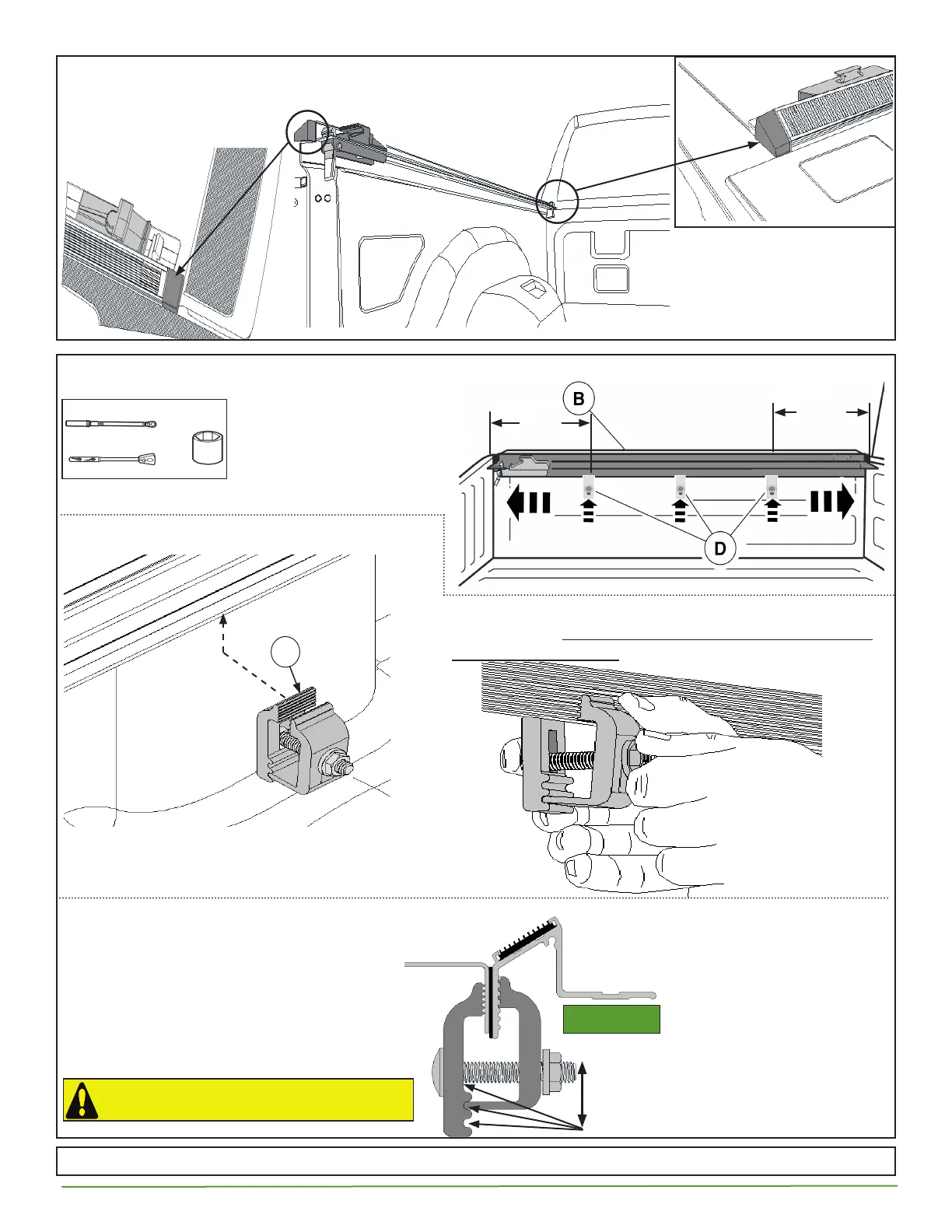

Repeat steps 3-5 on passenger side for item C. Proceed to step 7 when complete.
End Seal Compressed At Cab.
With Tailgate Closed, Position Side Rail Compressing End Seals Equally Between Cab and
Tailgate.
End Seal Compressed
At Tailgate.
1/2”
Install three clamps per driver and passenger side.
D
Install clamps as shown.
This Clamp is
Adjustable
To Level side rail, adjust
clamps up or down as
needed.
Attention: In most truck applications
the rails will not be perfectly level,
some upward tilt or downward tilt is
acceptable.
Attention: Clamp placement
depends on the trucks rear
corner, middle, and front corner
post locations.
LEVEL
Tighten clamps securely on
WARNING
side rails before driving vehicle.
3
4
5
6
When installing clamps, finger tighten nut holding back
side of clamp. Be sure teeth on clamps engage with the
teeth on the side rails.
To Next Page
