Cover tension is controlled by a four position adjustable block. To start, place blocks in position shown
below, with 4 on top and closest to front header. Secure blocks with hitch pin in #2 hole, this is the least
amount of tension.
B
Thread nut onto bolt, enough to be tight but still able to move freely. DO NOT over tighten nut and plastic
washer connection.
9/16” 9/16”
A
E
F
Passenger side detailDrivers side detail

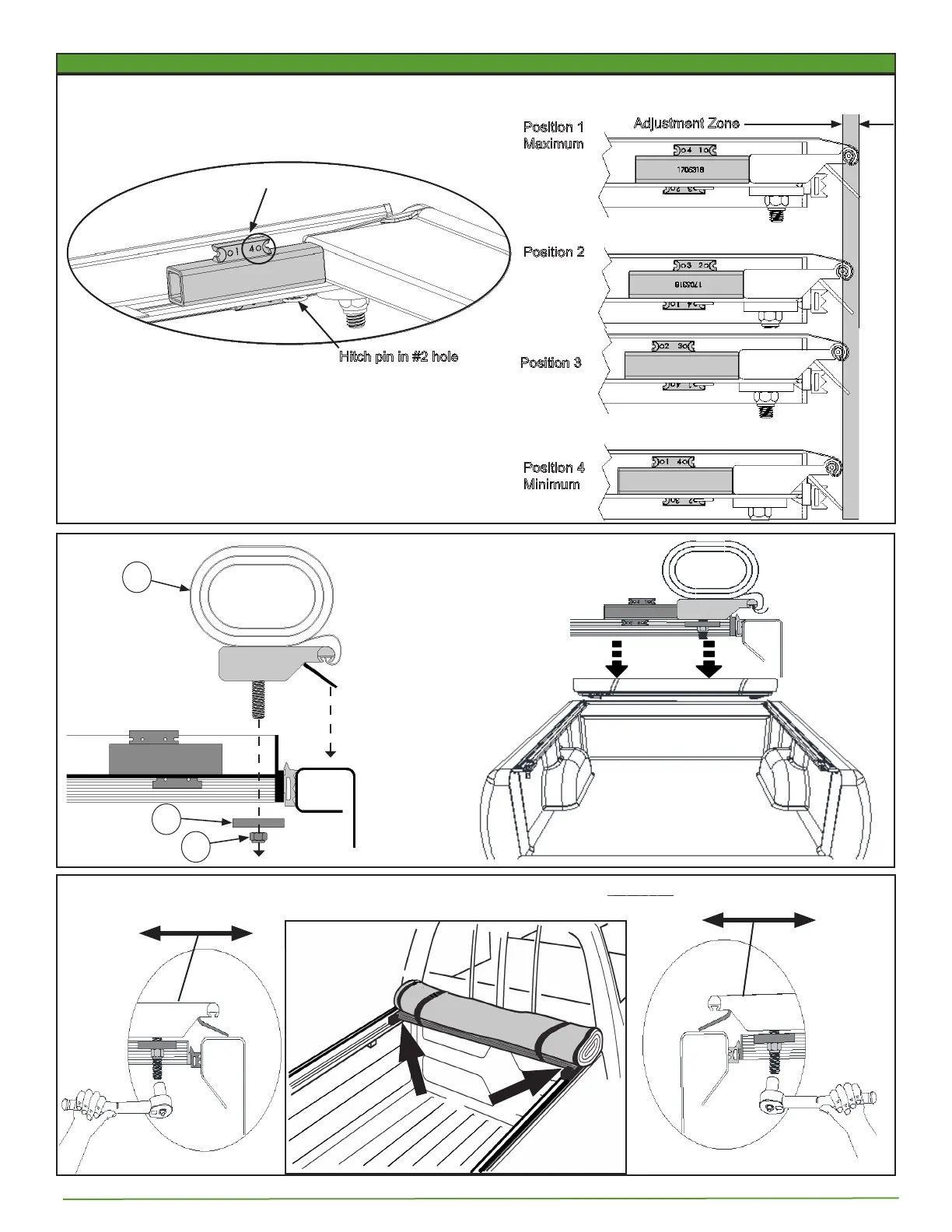

Setting cover tension
1. Set cover tension during warmest part of the day.
2. Roll cover open to adjustable block.
3. Pull Hitch pin and rotate blocks to the desired position.
Replace Hitch pin. (Driver and passenger blocks
must always be in the same position.)
4. Close cover and re-check adjustment. Repeat until
satisfactory tension has been achieved.
Position 3
Position 4
Minimum
Hitch pin in #2 hole
Position 1
Maximum
Position 2
(Position 4)
Adjustment Zone
7
SETTING TENSION ADJUSTMENT BLOCKS
8
9
