P.4
ESC
Motor
No1,3
No2,4
Oil

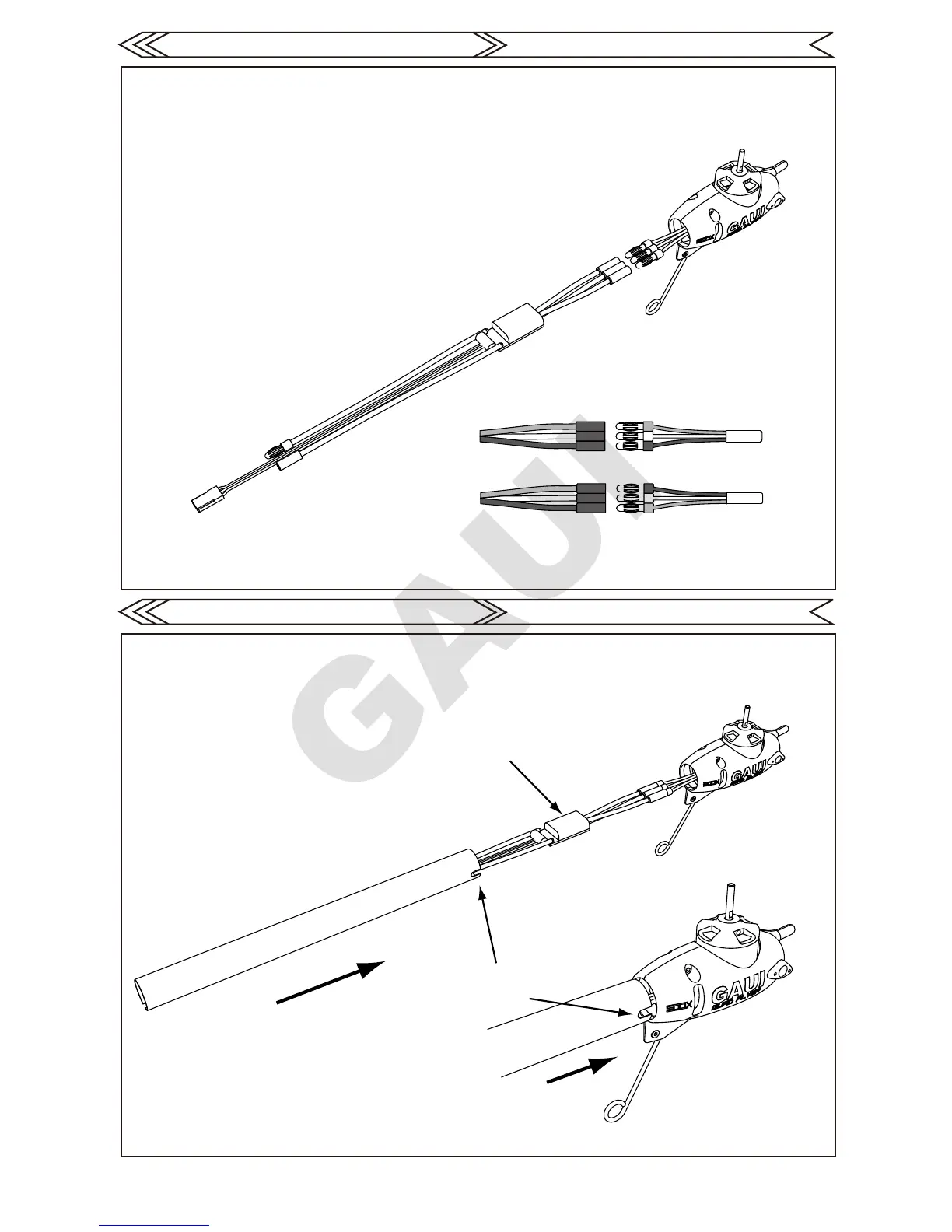

將電子變速器接至馬達。(注意四組馬達接頭的顏色區別：1、3為順向，2、4為反向)
將電子變速器外膜上一點油酯並套入軸管內。(注意軸管缺口位置)
機身製作
機身製作
缺口
Main Frame Assembly
Connect ESC to Motors (Attention on cable connections: Motor + ESC (1&3) connect the
same color cables together; Motor + ESC (2&4) red connects to black, black connects to
red & the other cable should connect same color cable.
Put a small amount of lubricant oil over the ESC cover and insert into the boom arm
(attention on the Position Indicator Gap).
Main Frame Assembly
Position Indicator Gap
