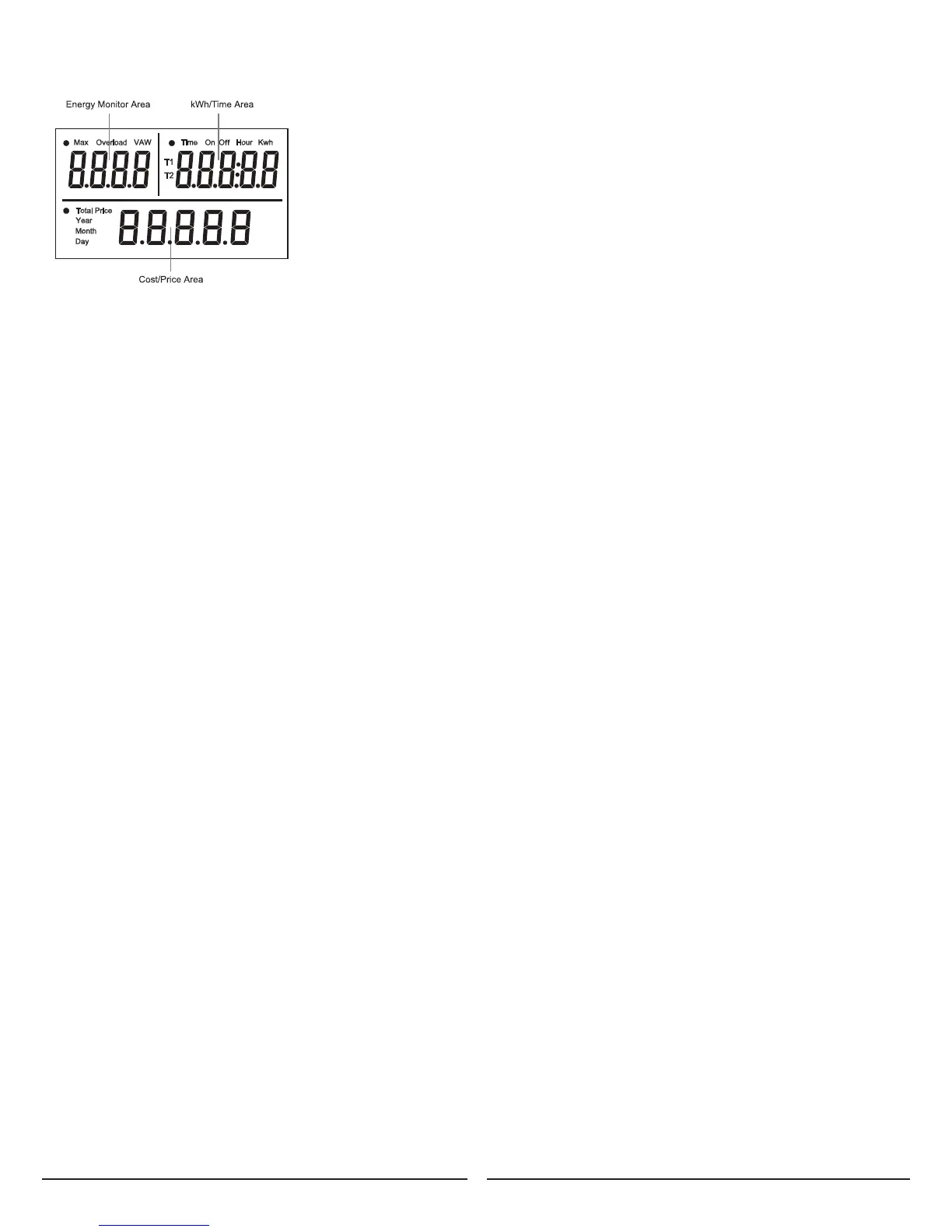

I I. SCREEN AND BUTTONS
A. "CHANGE" Button
Press this button to scroll through the following readings on the Energy Monitor area:
B. "MODE" Button
1. Used to switch among different modes.
2. Used for setting adjustment.
C. "PRG" Button
1. Used to enter setting mode and select the desired digit or item.
2. Used to clear all total cost, energy usage time and total consumed energy data together.
I I I. ENERGY MONITOR
Press CHANGE to scroll through the following readings on the energy monitor area:
The voltage reading indicates how many volts are available from your wall socket. The wattage and
amperage readings indicate the energy presently being used by the appliance. The maximum amperage,
maximum voltage and maximum wattage readings indicate the highest readings recorded when the
corresponding display Is being shown. If you switch to another display, the highest reading will be
cleared.
READINGS
- (W) Watt = Wattage
- (Max W) Watt = Highest recorded wattage used by load
- (V) Volt = Line Voltage
- (Max V) Volt= Highest recorded Line Voltage
- (A) Ampere= Load Current
- (Max A) Ampere = Highest recorded current drawn by load
- (Overload A) Ampere= Current Overload Threshold
- (Overload W) Wattage = Wattage Overload Threshold
You can set a desired current or wattage overload threshold. When the present current or
wattage exceeds the threshold, the symbol "Overload" will blink on display as alarm if a relevant
display is being shown.
• Wattage
• Maximum Wattage
• Line Voltage
• Maximum Line Voltage
• Load Current
• Maximum Load Current
• Current Overload Threshold
• Wattage Overload Threshold
• Wattage
• Maximum Wattage
• Line Voltage
• Maximum Line Voltage
• Load Current
• Maximum Load Current
• Current Overload Threshold
• Wattage Overload Threshold
To Next Page
