GBF PL963 Series - Page 6

POWER
1
2
3
4
5
LAN
RESET
2
BELL
ON=5S
OFF=1S
BELL
Black w/White Stripe(+)
Black(-)
12VDC/1000mA
Plug-In
Transformer
(Supplied)

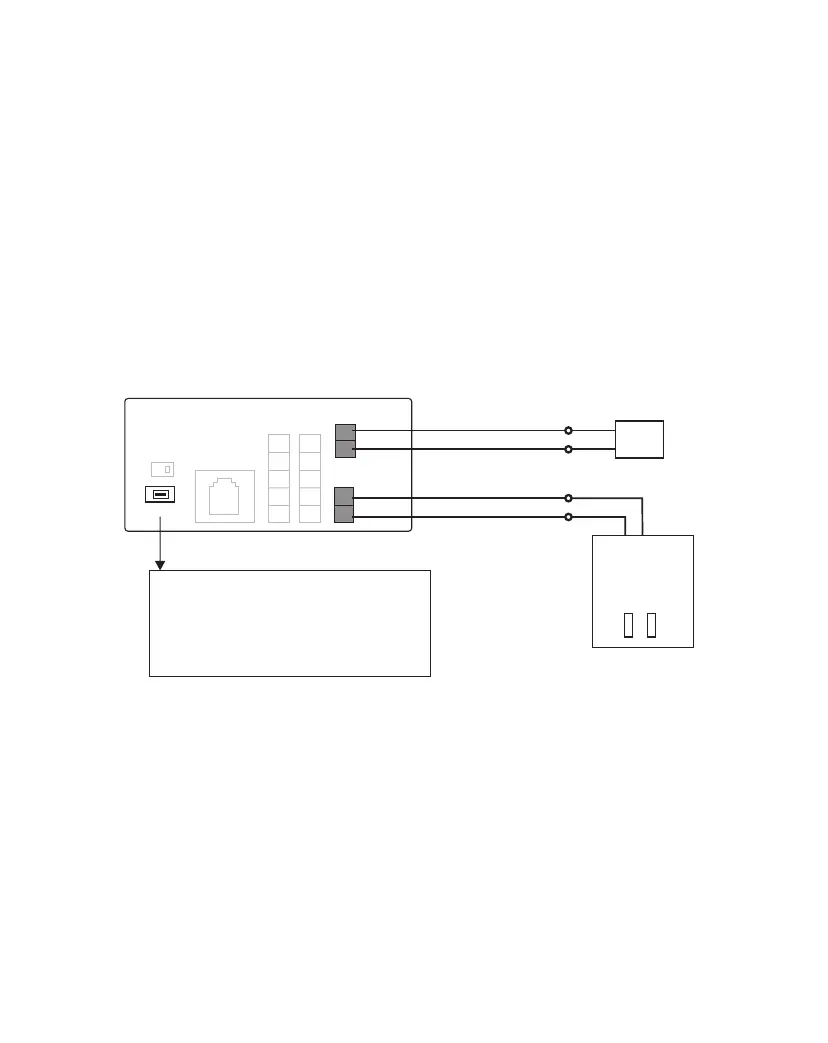

Wiring Diagram for Power Supply Connections and
Connection to Existing Door Chime (Optional)
*
1
+
-
-press and hold for 3 seconds until you hear Di sound,
device will reboot and enter WiFi configuration status
within 2 minutes.
-press and hold for 10 seconds until you hear DiDi
sound, device will be factory default within 2 minutes.
-press and hold for 15 seconds until you hear DiDi
DiDi DiDi sound, device will be unbinded.
1
2
3
4
5
5
PL963M/PMLockandBellRelaysareRatedMaximum3Ampsat250VACor30VDC
LOCK1
LOCK2
