CHV Mini Series Service
Manual
2.2 Outdoor Units

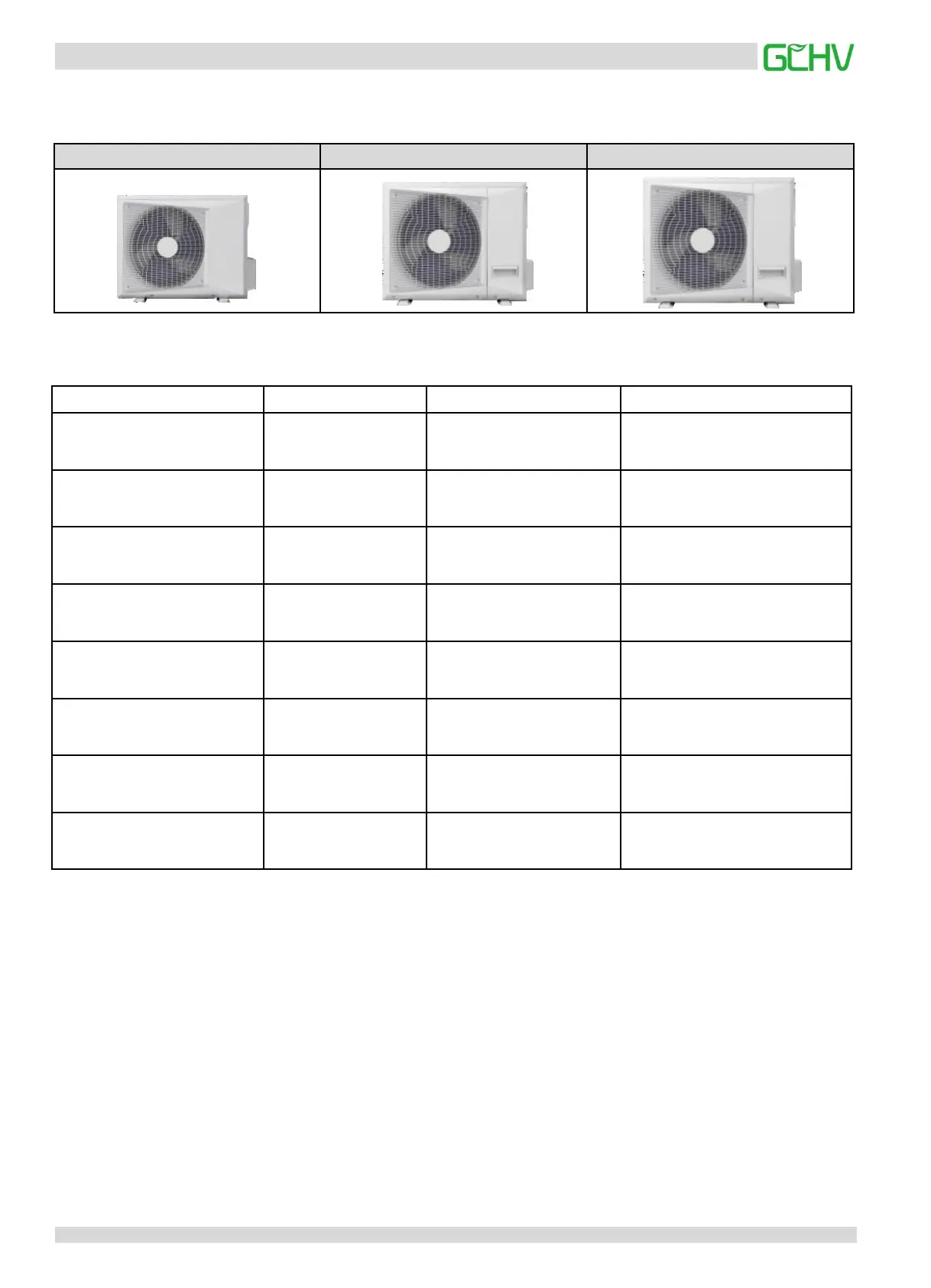

Table 1-2.2:Outdoor unit appearance
8kW 10/12.5kW 12.5/14/16kW
Model name Net dimension(mm) Net/Gross weight(kg) Power supply
CHV-DH080W/R1
Width:935
Height:702
Depth:383
47/50 220~240V/1N/50Hz
CHV-DH100W/R1
Width:1032
Height:810
Depth:445
60/65 220~240V/1N/50Hz
CHV-DH125W/R1
Width:1100
Height:870
Depth:528
85/95 220~240V/1N/50Hz
CHV-DH140W/R1
Width:1100
Height:870
Depth:528
90/100 220~240V/1N/50Hz
CHV-DH160W/R1
Width:1100
Height:870
Depth:528
90/100 220~240V/1N/50Hz
GCHV-D125W/HZR1-D01
Width:1032
Height:810
Depth:445
67.4/72.2 380~415V/3N/50Hz
GCHV-D140W/HZR1-F01
Width:1100
Height:870
Depth:528
87.5/97.4 380~415V/3N/50Hz
GCHV-D160W/HZR1-F01
Width:1100
Height:870
Depth:528
90/100 380~415V/3N/50Hz
Table 1-2.3:Outdoor unit specification
