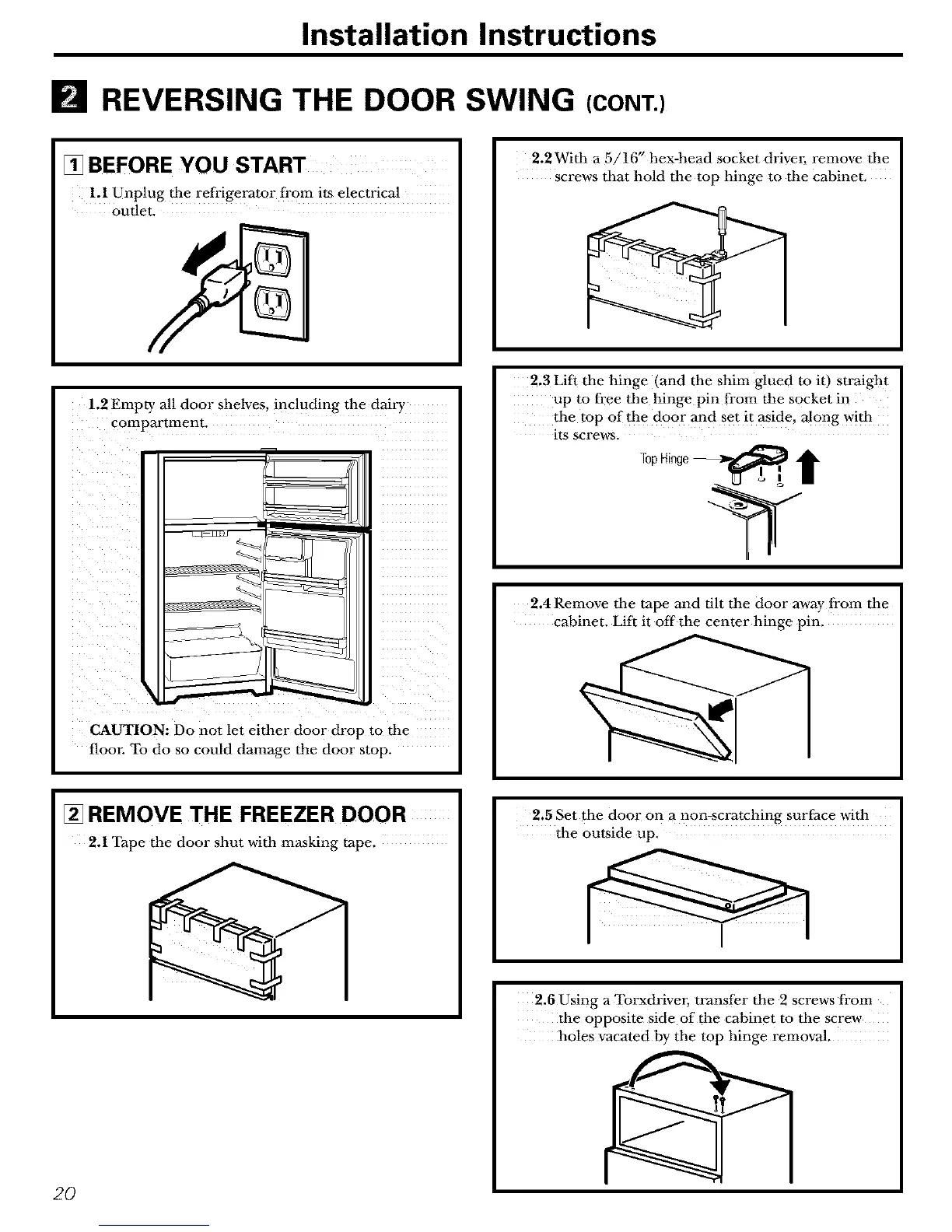

Installation Instructions
[] REVERSING THE DOOR SWING (CONT.)
[]BEFORE YOU START
1.1 Unplug the refrigerator fi'0m its electrical
outlet.
2.2 With a 5f 16" hex-head socket drivm; remove the
screws that hold the top hinge to the cabinet.
1,2 Empty all door shelves, including the dairy
comparrmem.
CAUTION: Do not let either door drop to the
floo_: To do so could damage the door stop.
2.3 Lift the hinge (and the shim glued to it) straight
up to fi'ee the hinge pin from the socket in
the top of the door and set it aside, along with
its screws.
T°pHinge_ I
2.4 Remove the tape and tilt the door away fi'om the
cabinet. Lift it off the center hinge pin.
[] REMOVE THE FREEZER DOOR
2.1 Tape the door shut with masking tape.
2O
2.8 Set the door on a non-scratching surface with
the outside up.
2.6 Using a Torxdrivm; transfer the 2 screws from
the opposite side of the cabinet to the screw
holes vacated by the top hinge removal.
