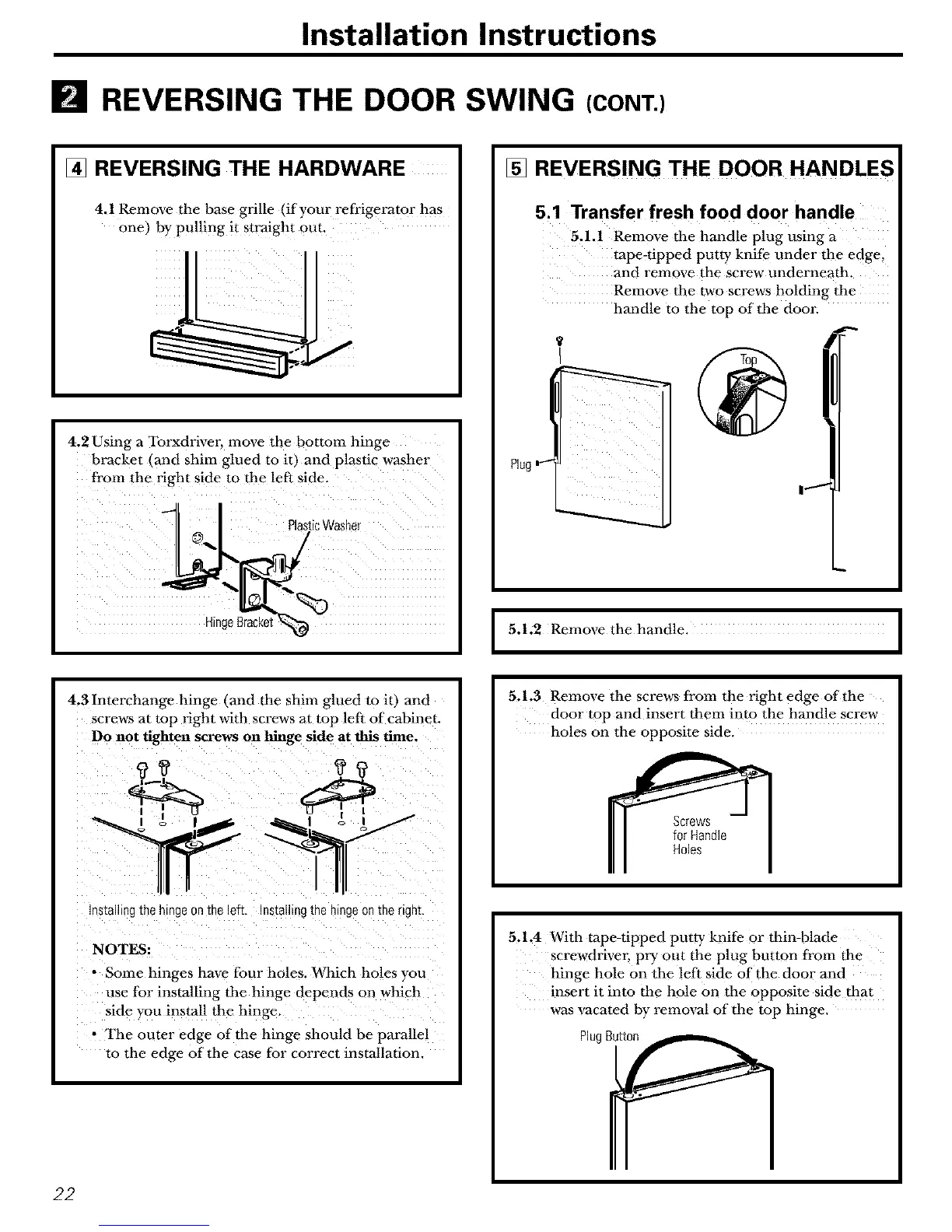

Installation Instructions
[] REVERSING THE DOOR SWING (CONT.)
[] REVERSING THE HARDWARE
4.1 Remove the base grille (if'your refi'igerator has
one) by pulling it straight out.
4.2 Using a Torxdrivm; move the bottom hinge
bracket (and shim glued to it) and plastic washer
from the right side to the left side.
PlasticWasher
Hing
[] REVERSING THE DOOR HANDLES
5.1 Transfer fresh food door handle
Plug'_
5.1.1 Remove the handle plug using a
tape-tipped putty knife under the edge,
and remove the screw underneath.
Remove the two screws holding the
handle to the top of the doon
5.112 Remove the handle.
4.3 Interchange hinge {and the shim glued to it} and
screws a[ top right with screws at top left of cabinet.
Do not tighten screws on hinge side at this time.
ns[amngme nmgeonthe left. installingthe hingeonthe right
NOTES:
• Some hinges have four holes. Which holes you
use for installing the hinge depends on which
side you install the hinge.
• The outer edge of the hinge should be parallel
[o the edge of the case tor correct installation.
5.1,3 Remove the screws from the right edge of the
door top and insert them into the handle screw
holes on the opposite side,
5.1.4 With tape-tipped putty knife or thin-blade
screwdrivm; pry out the plug button from the
hinge hole on the left side of the door and
insert it into the hole on the opposite side that
was vacated by removal of the top hinge.
