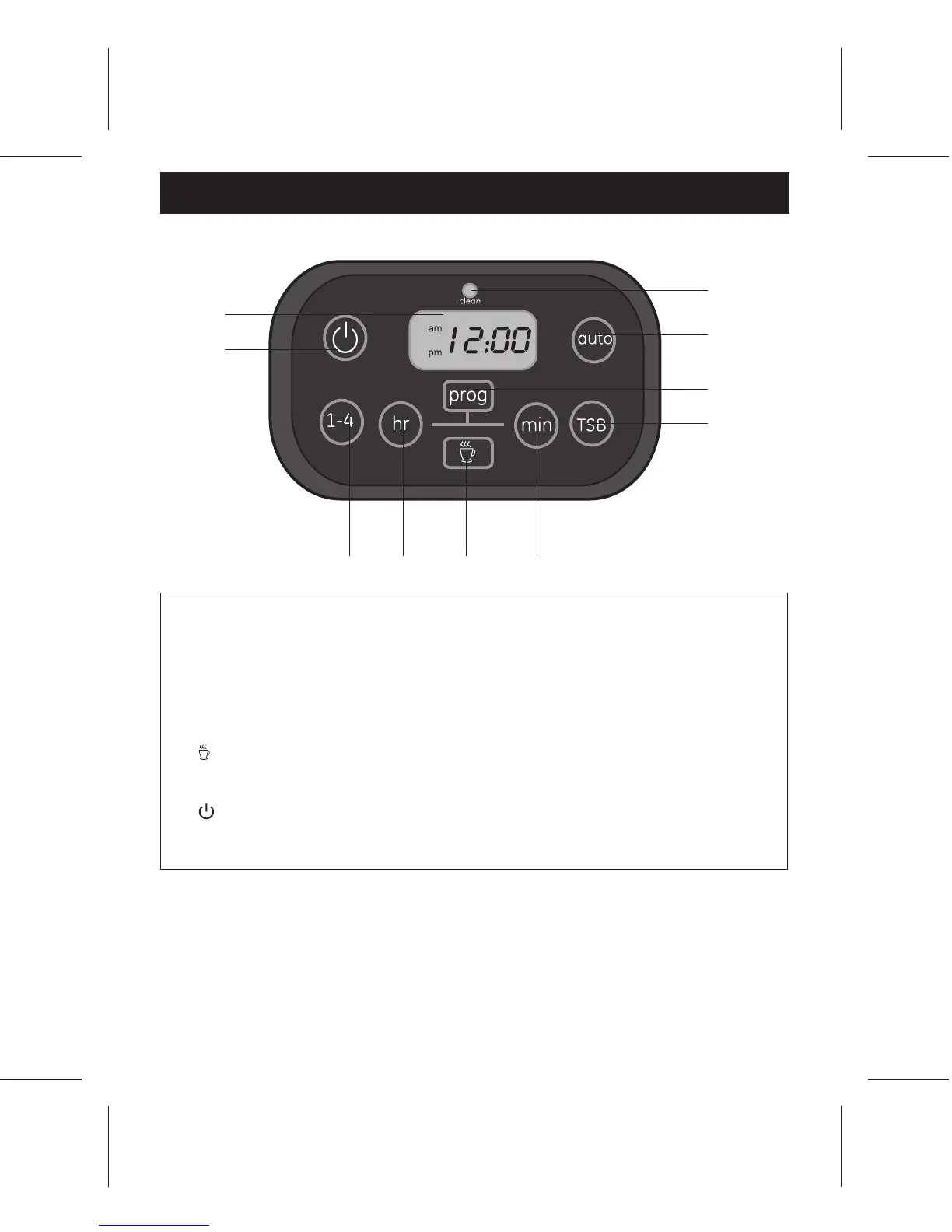

PARTS
5
Name Function
22
clean indicator/
button
Reminds that cleaning is due/Time to change charcoal filter
Starts automatic cleaning process.
23
auto button
Starts program operation
24
prog button
Sets and saves program
25
TSB button
Shows time since brewing ended (count up)
26
min button
Sets minutes (time/program)
27
button
Adjusts keep warm plate temperature
28
hr button
Sets hours (time/program)
29
1-4 button
Gives stronger taste to first 4 cups of coffee
30
button
Turns off/on, starts manual brewing cycle
31 LCD display Shows real time/program time/temperature(F)/Error message
