Place the compression nut and ferrule (sleeve)
onto the end of the tubing as shown.
Insert the end of the tubing into the water valve
connection as far as possible. While holding the
tubing, tighten the fitting.
Fasten the tubing into the clamp provided to hold
it in a vertical position. You may need to pry open
the clamp.
Remove the plastic flexible cap from the water valve
(refrigerator connection).
Place the compression nut and ferrule (sleeve)
onto the end of the tubing and connect it to the
shutoff valve.
Make sure the tubing is fully inserted into the valve.
Tighten the compression nut securely.

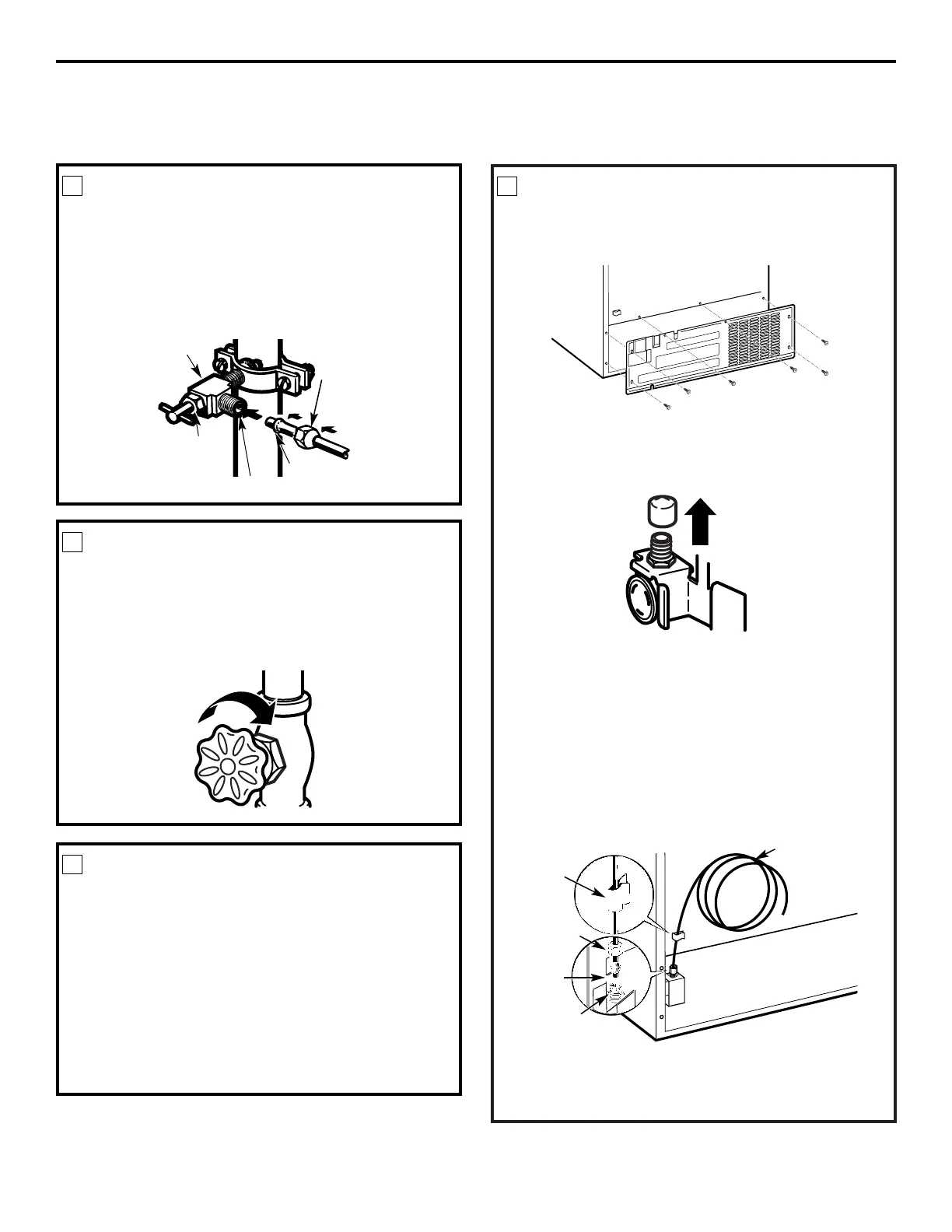

CONNECT THE TUBING TO THE
VALVE
7
Saddle-Type Shutoff Valve
Compression Nut
Packing Nut
Outlet Valve
Ferrule (sleeve)
Turn the main water supply on and flush out the
tubing until the water is clear.
Shut the water off at the water valve after about
one quart (1 liter) of water has been flushed
through the tubing.
FLUSH OUT THE TUBING
8
NOTES:
• Before making the connection to the refrigerator,
be sure the refrigerator power cord is not plugged
into the wall outlet.
• If your refrigerator does not have a water filter,
we recommend installing a water filter if your
water supply has sand or particles that could clog
the screen of the refrigerator’s water valve. Install
it in the water line near the refrigerator.
CONNECT THE TUBING TO THE
REFRIGERATOR
9
CONNECT THE TUBING TO THE
REFRIGERATOR
(CONT.)
9
INSTALLING THE WATER LINE (CONT.)
Remove the access cover.
1/4″
Compression
Nut
Tubing
Clamp
1/4″ Tubing
Ferrule
(sleeve)
Refrigerator
Connection
Installation Instructions
Reattach the access cover.
To Next Page
