Fresh Food Compartment—Lower Light
(on some models)
This light is located either behind the top drawer or right above the
top drawer (depending on your model).
Unplug the refrigerator.
If the light is behind the top drawer
you will need to
remove the drawer and the shelf above it. See the
About storage drawer removal
and the
About the
refrigerator shelves
sections.
Grasp the bottom of the light shield and pull it
forward and up.
After replacing with an appliance bulb of the same or lower
wattage, replace the shield. If the light was behind the top drawer,
you will need to replace the drawer and the shelf above it. Plug the
refrigerator back in.
3
2
1
22
Unplug the refrigerator.
Remove the shelf just below light shield. (The shelf will be
easier to remove if it is emptied first.)
Pull the light shield toward you to reach the bulb.
After replacing with an appliance bulb of the same or lower wattage, reinstall the
shield and shelf and plug the refrigerator back in.
3
2
1
Freezer Compartment
Operating Instructions
Installation Instructions
Safety InformationTroubleshooting TipsCustomer Service
Pin
Grooved Retainer
(one on each side)

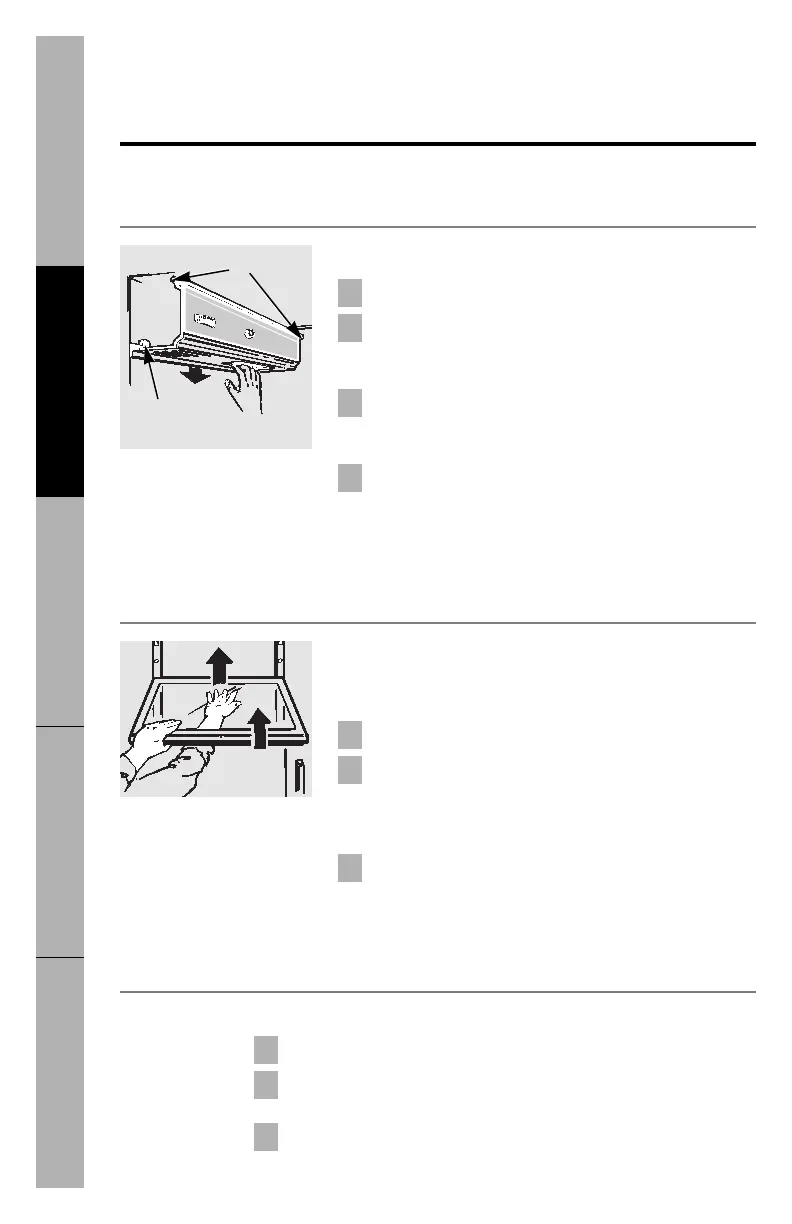

Fresh Food Compartment—Upper Light
Unplug the refrigerator.
To align the control knob properly, note position
of numbered control for proper reassembly, turn
control to
OFF
and pull off knob.
Pull bottom of light panel down about 1/4 inch
(6 mm) just enough to disengage lip at rear from
grooves in retainers on rear wall.
Lift panel to disengage top from pins on side walls
and remove panel.
After replacing with an appliance bulb of the same or lower
wattage, reinstall panel (hang top on pins; pull bottom down, push
it back and release it to let lip engage grooves in retainers). Replace
temperature control knob in OFF position, turn it to previous setting
and plug the refrigerator back in.
4
3
2
1
