GE 20543 - Mounting Bracket Installation; Hanging the Fan Motor

8
Fan Installation

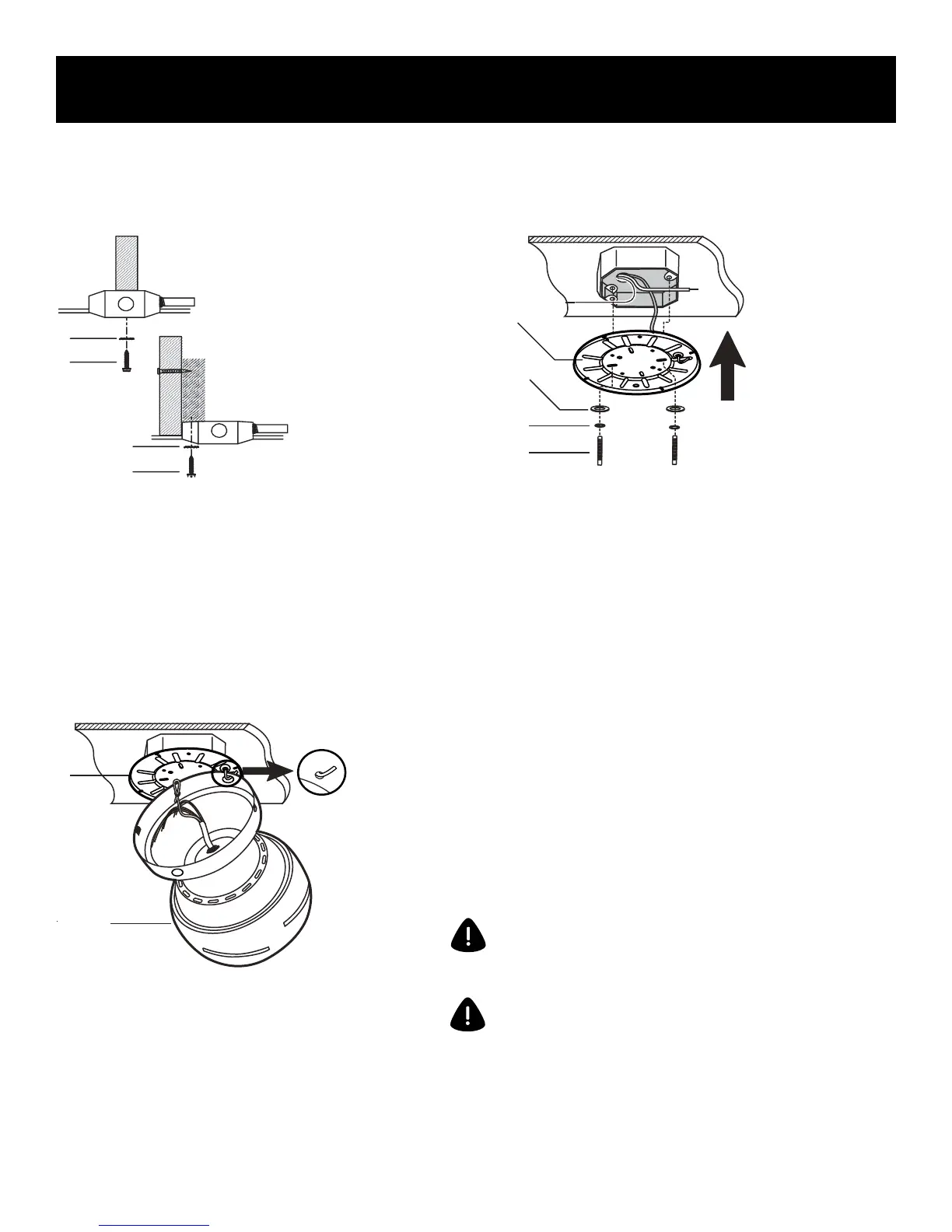

INSTALLING THE MOUNTING BRACKET
HANGING THE FAN
1. Use metal outlet box (sold separately)
suitable for fan support. Secure outlet box
directly to the building structure using wood
screws (A) and star washers (C). Outlet box
must support 15.9 kg (35 lb.) min.
1. Lift the fan into position by hanging the
fan motor assembly (R) onto the hook from
the ceiling mounting bracket (Q) allowing it
to hang freely.
2. Install mounting bracket (Q) to the
outlet box in ceiling using the mounting
screws provided with the outlet box (two
additional mounting screws (B), spring
washers (D) and flat washers (E) provided in
the hardware bag).
C
A
C
A
Q
E
D
B
Q
R
WARNING: the hook on the mounting plate is only provided
to balance the fan while making the electrical connections.
Do not leave the fan unattended while the fan is hanging
from the hook.
WARNING: do not stand under the fan while fan is hanging
from the mounting hook and take necessary precautions to
protect floors during the fan installation.
