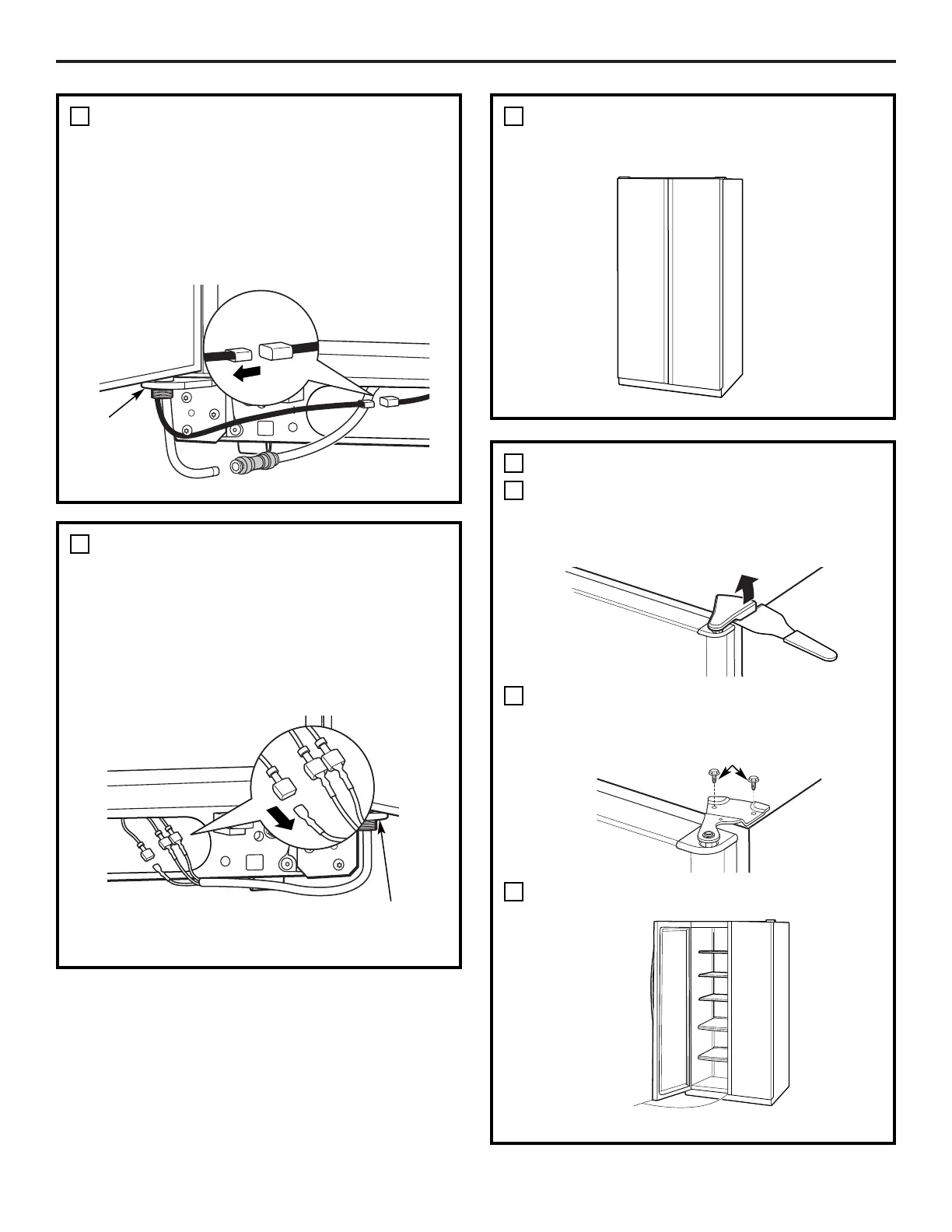

Installation Instructions
DISCONNECT THE POWER
COUPLING (on some models)
If the refrigerator has a water dispenser,
there is a power line (harness) from the
cabinet into the bottom hinge on the
freezer door that must be disconnected.
To disconnect, pull apart at the coupling.
4
Bottom
freezer
hinge
DISCONNECT THE ELECTRICAL
CONNECTORS (on some models)
If the refrigerator has a refreshment
center, there are electrical connectors
(harnesses) from the cabinet into the
bottom hinge on the refrigerator door
that must be disconnected.
To disconnect, pull apart each connector.
5
Bottom
refrigerator
hinge
CLOSE THE FREEZER AND
REFRIGERATOR DOORS
6
REMOVE THE FREEZER DOOR
Remove the freezer door top hinge cover
(if equipped) by either squeezing it and
pulling it up or by prying it off with a
plastic putty knife.
Remove the two 5/16" or 1/8" hex head
screws, then lift the hinge straight up to
free the hinge pin.
Open the freezer door to 90.°
7
A
C
B
5/16" or 1/8" hex head
90°
