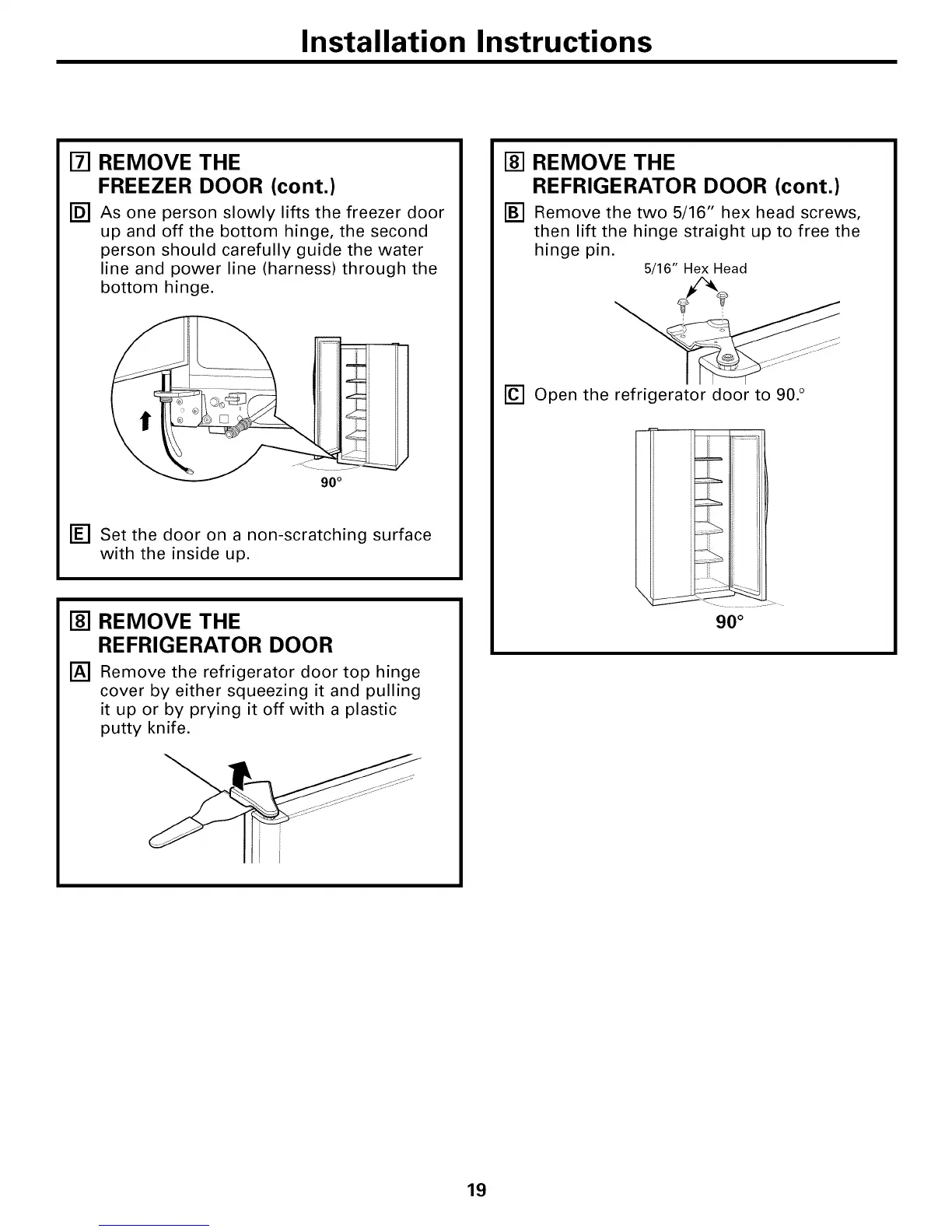

Installation Instructions
m REMOVE THE
FREEZER DOOR (cont.)
[] As one person slowly lifts the freezer door
up and off the bottom hinge, the second
person should carefully guide the water
line and power line (harness) through the
bottom hinge.
['_ Set the door on a non-scratching surface
with the inside up.
[] REMOVE THE
REFRIGERATOR DOOR
[_] Remove the refrigerator door top hinge
cover by either squeezing it and pulling
it up or by prying it off with a plastic
putty knife.
181REMOVE THE
REFRIGERATOR DOOR (cont.)
[] Remove the two 5/16" hex head screws,
then lift the hinge straight up to free the
hinge pin.
5/16" Hex Head
['C-']Open the refrigerator door to 90. °
i ,, i
90 °
19
