GE ACUXL16 User Manual

Cable # Description Belden Cable Number ( or equal) Max. Distance
1
Communication (RS-485)
Power (24 VDC)
#9842 or Alpha #6222C, 24 AWG, 2-pair, braid overall shield AND #9409 or
Alpha #1897C, 18 AWG, 2-conductor/unshielded
4,000’ (1,220 m) 4,000’
(1,220 m)
2
Exit Request Button / Sensor
Input
#9407-22 AWG, 2-conductor (unshielded) 1,000’ (305 m)
3
Door Lock Control from
Controller or RRE
#9409-18 AWG, 2-conductor (unshielded) 1,000’ (305 m)
4 Standard Reader Varies with type of reader/keypad. See manufacturers instructions. varies
5
Controller to Host
Communication or other
ACU panels OR Controller to
10/100 Hub Communication
#9842 or Alpha #6222C, 24 AWG, 2-pair/braid overall shield #1583A-24 AWG,
4-pair (unshielded)
4,000’ (1,220 m) 328’
(100 m)

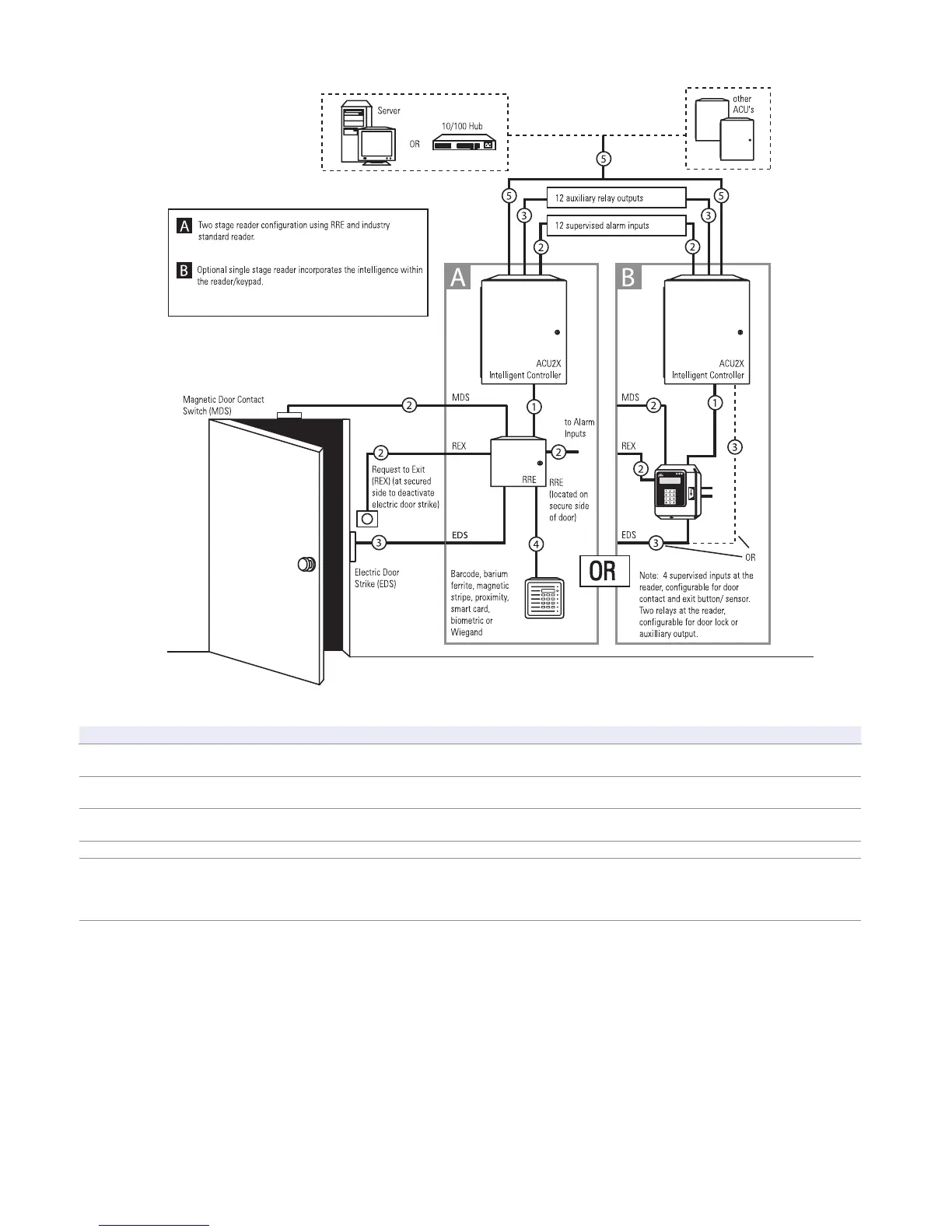

Configuration

GE ACUXL16 Specifications

Operating Environment

maximum temperature	+65 C (+150 F)
minimum temperature	0 C (+32 F)
humidity	0 to 95% relative

Power

input voltage	120/240 VAC
frequency	50/60 Hz
4 amp power supply maximum current	1.0 amps
4 amp power supply maximum power	120 watts
8 amp power supply maximum current	2.0 amps
8 amp power supply maximum power	240 watts

Weight and Dimensions

height	20.12” (51.1 cm)
width	16.50” (41.9 cm)
depth	5.00” (12.7 cm)
weight with batteries (4 amp units)	44 lbs (20 kg)
weight with batteries (8 amp units)	62 lbs (28.1 kg)
weight without batteries (4 amp units)	32 lbs (14.5 kg)
weight without batteries (8 amp units)	38 lbs (17.2 kg)
