10 31-2000356 Rev. 0
Installation Instructions
2

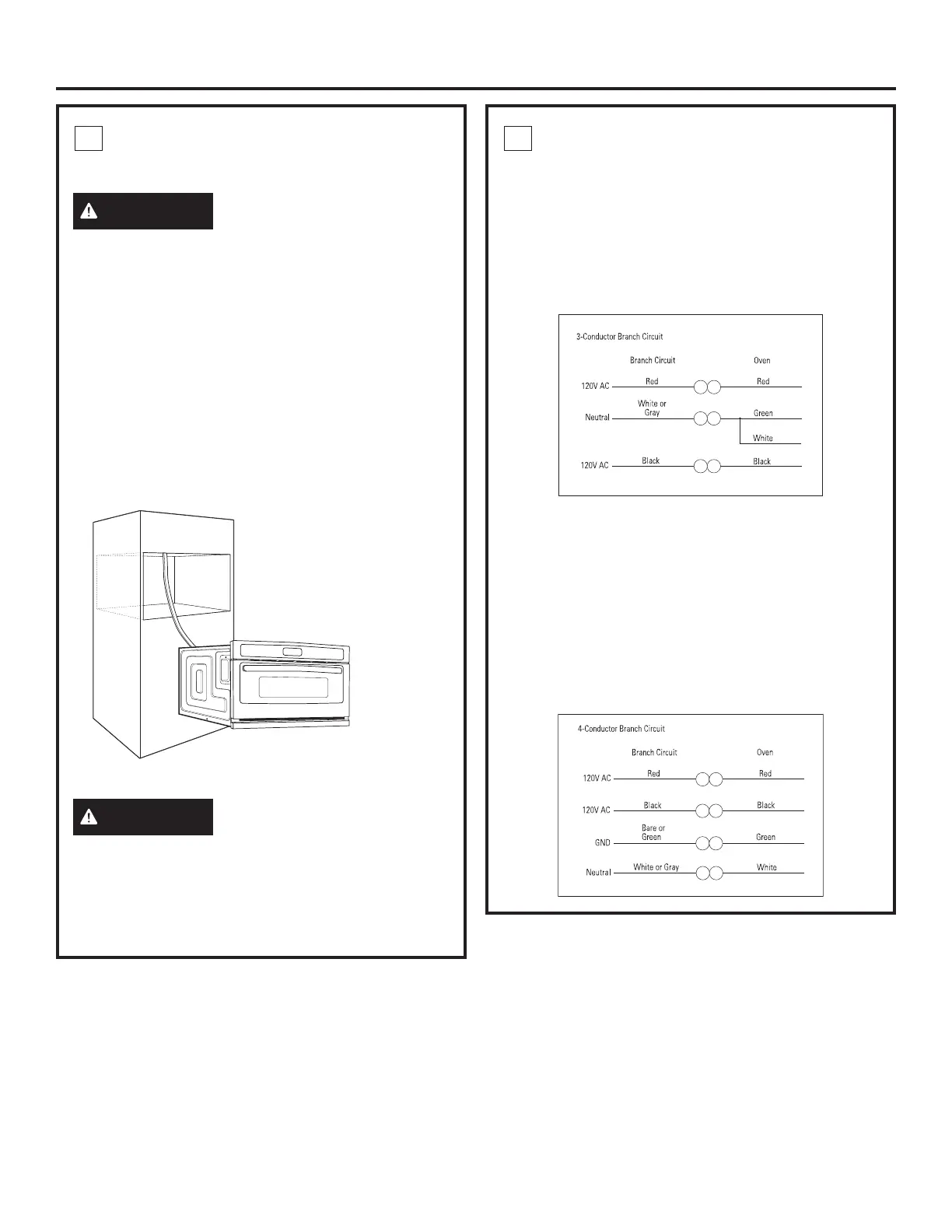

ROUTE CONDUIT THROUGH
CUTOUT
CAUTION
Two people are required to lift
the oven into the opening.
Grasp the bottom at front and rear. Discard foam
base. DO NOT USE HANDLE OR CONDUIT TO
LIFT THE OVEN. DAMAGE WILL OCCUR.
With oven in front of the cabinet opening:
• Insert conduit into cabinet opening. Connect oven
wiring and branch circuit.
• Lift the oven into the opening while continuing to feed
the conduit in the direction of the installed junction
box. Be sure the conduit does not get pinched
between the back of the oven and the cabinet wall.
• Leave oven a few inches forward of the cabinet
front frame. Do not push the unit all of the way into
the cutout.
(Oven shown without
accessory storage drawer.)
WARNING
• Disconnect power to the junction box before
making the electrical connection.
• Electrical ground is required on this appliance.
• Do not connect the electrical supply until appliance
is permanently grounded.
2
ROUTE CONDUIT THROUGH
CUTOUT (CONT.)
When connecting to a 3-conductor branch
circuit:
• Connect oven red lead to branch circuit red lead.
• Connect oven black lead to branch circuit black lead.
• Connect oven green ground lead and white lead
to branch circuit neutral (white or gray).
When connecting to a 4-conductor branch
circuit:
• Connect oven red lead to branch circuit red lead.
• Connect oven black lead to branch circuit black lead.
• Break connection between oven white lead and
oven green ground lead.
• Connect oven white lead to branch circuit neutral
lead (white or gray).
• Connect oven green ground lead to branch circuit
ground lead (green or bare copper).
To Next Page
