GE AEE24DT User Manual

Installation Instructions
11

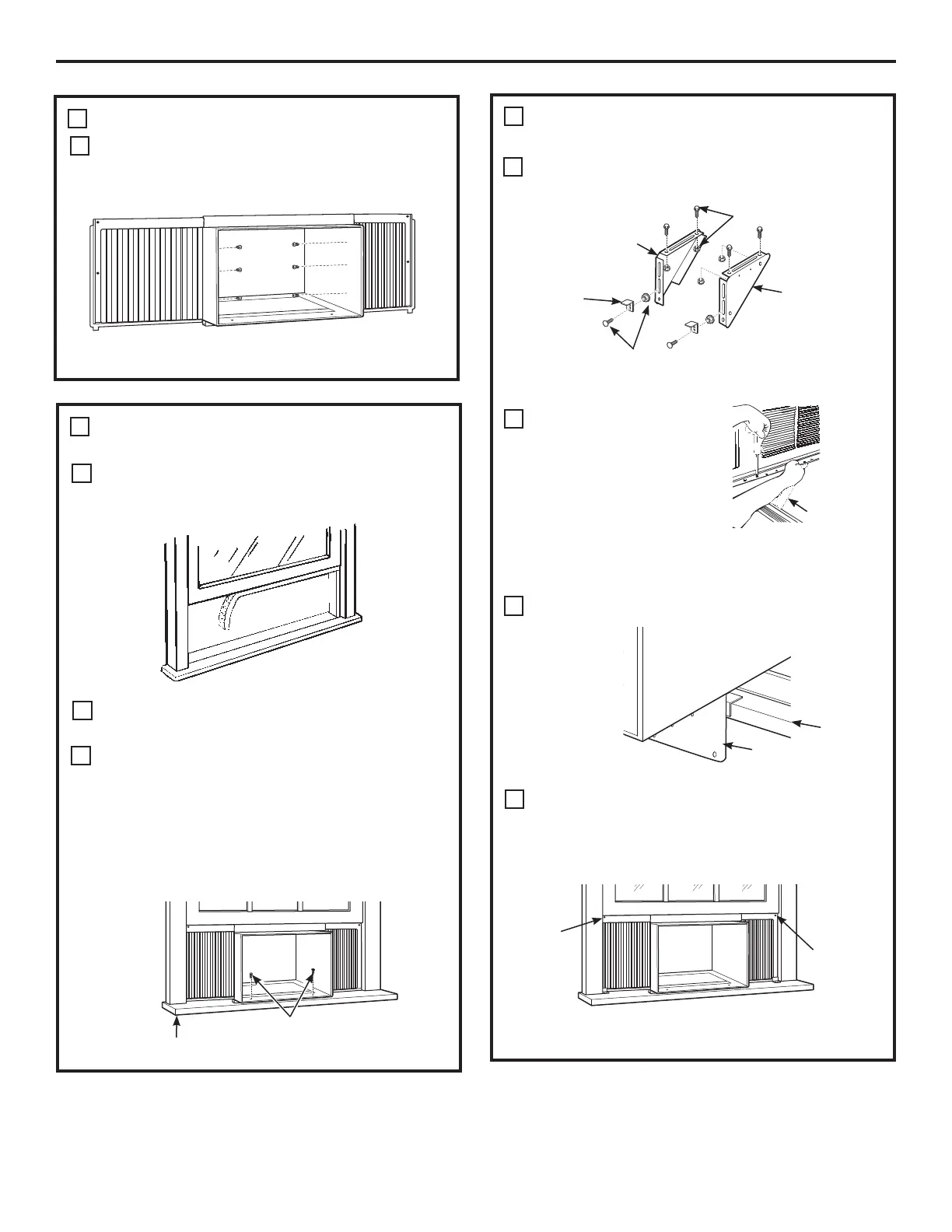

PREPARE THE WINDOW AND INSTALL
THE CASE
Cut the window sash seal to the length of the
window sash. Peel off the backing and attach the
seal to the underside of the window sash.
Open the window and mark the center of
the window sill.
Carefully slide the case into the window
and center the case. Lower the window
behind the top mounting rail. Pull the
bottom of the case forward so that the
bottom mounting rail is tight against the
back of the window sill. Mount the case
to the window sill using 2 type C screws.
Drill pilot holes, if necessary.
5
PREPARE THE WINDOW AND INSTALL
THE CASE (continues)
Assemble the V-support and Sill Angle
bracket with Type F nut and bolt
Position the left
V-support under the left
side panel of the wall
case and against the
outside wall. Adjust the
Sill Angle Bracket to
rest on the sill. Attach
the V-support to the wall case using 2 Type
E bolts. Re-adjust the Sill Angle Bracket if
necessary.
Repeat with Right V-Support.
Extend the left and right accordion panels
to the vertical window sashes. Drill pilot
holes and attach the top corners with 2 type
C screws.
5
2 type C screws
Sill
B
A
C
D
V-support
F
Sill
V-support
G
E
Left
Sill angle
bracket
V-support Type
F bolt and nut
Right
Type E bolt
and nut
PREPARE THE CASE (continues)
Attach the side retainers to the case using 6
type A screws. Mount the screws from the
inside of the wall case.
4
E
Type C
screw
Type C
screw
