GE AEL08LVW1 - Window Installation

Installation Instructions

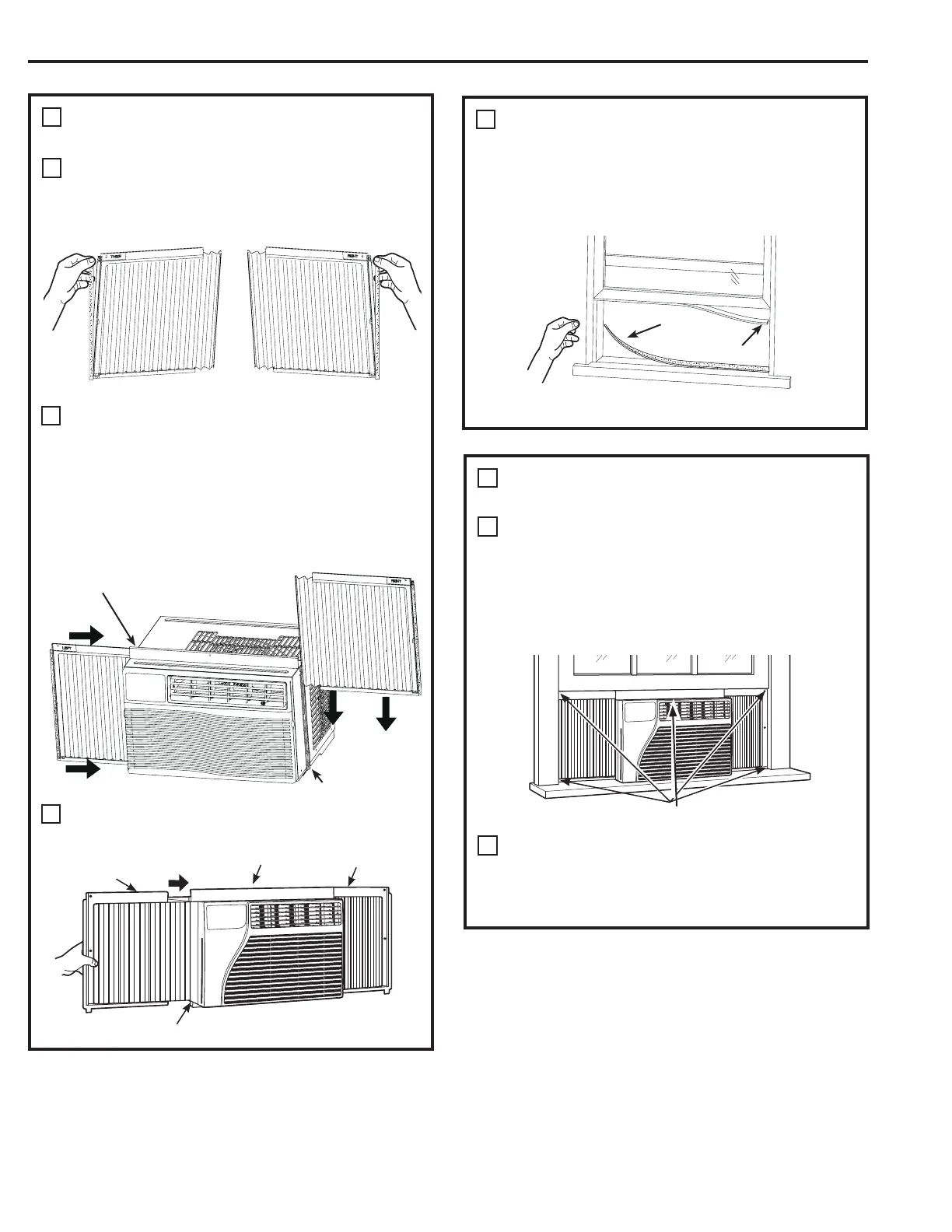

PREPARE THE AIR CONDITIONER
(cont.)
Remove the backing from the accordion
seal (two short strips). Stick one sealing strip
respectively on the left side and right side of
the accordion panels, as shown.
Slide the free end of the accordion panel into
the side panel rails. Slide the panel down. Be
sure to leave enough space to slip the top
and bottom of the frame into the rails on the
cabinet.
NOTE: There is a right and a left accordion
panel. Be sure to use the proper panel for each
side.
Slide the left and right accordion panels into
the top and bottom mounting rails.
4
INSTALL THE AIR CONDITIONER IN
THE WINDOW
Place the air conditioner on the sill with the
bottom mounting rail against its back edge.
Center it and close the window securely behind
the top mounting rail. It should be level or
slightly tilted to the outside. Use a level; about
a 1/3 bubble will be the correct case slant to the
outside.
Extend the left and right accordion panels to
the vertical window sashes and attach, through
the holes in the panels, with 5 Type B screws,
as appropriate.
6
A
B
PREPARE THE WINDOW
Cut the window seal (2 long strips) to the proper
length. Peel off the backing and attach the seal to
the underside of the window sash. One attached
to sash and one attached to sill.
5
C
Top left
Top right
Top mounting rail
Bottom mounting rail
Type B screws
D
Top mounting rail
Bottom mounting rail
Sealing Strip
(with adhesive)
E
10
