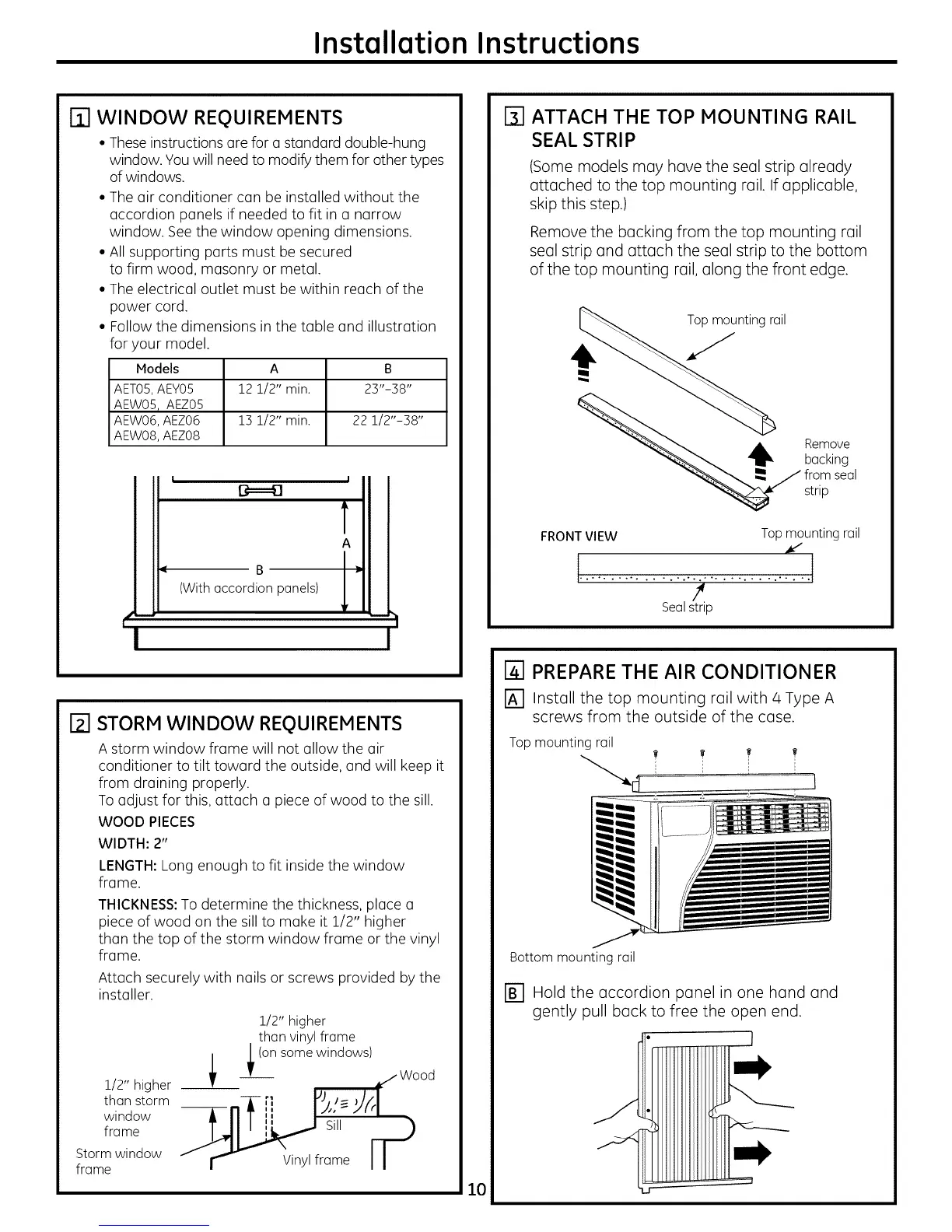

Installation Instructions
[] WINDOW REQUIREMENTS
Theseinstructions are for a standard double-hung
window. You will need to modify them for other types
of windows.
The air conditioner can be installed without the
accordion panels if needed to fit in a narrow
window. See the window opening dimensions.
All supporting parts must be secured
to firm wood, masonry or metal.
The electrical outlet must be within reach of the
power cord.
Follow the dimensions in the table and illustration
for your model.
Models A B
AET05, AEY05 12 1/2" min. 23"-38"
AEW05, AEZ05
AEW06,AEZ06 13 1/2" min. 22 1/2"-38"
AEW08, AEZ08
! I
B===8
(Withaccordion panels)
¢-
I I
I-}'1STORM WINDOW REQUIREMENTS
A storm window frame will not allow the air
conditioner to tilt toward the outside, and will keep it
from draining properly.
To adjust for this, attach a piece of wood to the sill.
WOOD PIECES
WIDTH: 2"
LENGTH:Long enough to fit inside the window
frame
THICKNESS: To determine the thickness, place a
piece of wood on the sill to make it 1/2" higher
than the top of the storm window frame or the vinyl
frame
Attach securely with nails or screws provided by the
installer.
1/2" higher
than storm
window
frame
Storm window
frame
1/2" higher
than vinyl frame
_ _ (°n s°me wind°ws),/,, Wood
F-n-_ :: #,-Jr l
- r r Vinylframe I I
r31ATTACH THE TOP MOUNTING RAIL
SEAL STRIP
(Some models may have the seal strip already
attached to the top mounting rail. If applicable,
skip this step.)
Remove the backing from the top mounting rail
seal strip and attach the seal strip to the bottom
of the top mounting rail, along the front edge.
Topmountingrail
Remove
backing
from seal
strip
FRONTVIEW Topmountingrail
.,-., . ..... , , . ..'...'...., . . , ,- . ..
/
Sealstrip
la] PREPARE THE AIR CONDITIONER
I_] Install the top mounting rail with 4 Type A
screws from the outside of the case.
Topmounting rail
Bottom mountingrail
r_ Hold the accordion panel in one hand and
gently pull buck to free the open end.
10
