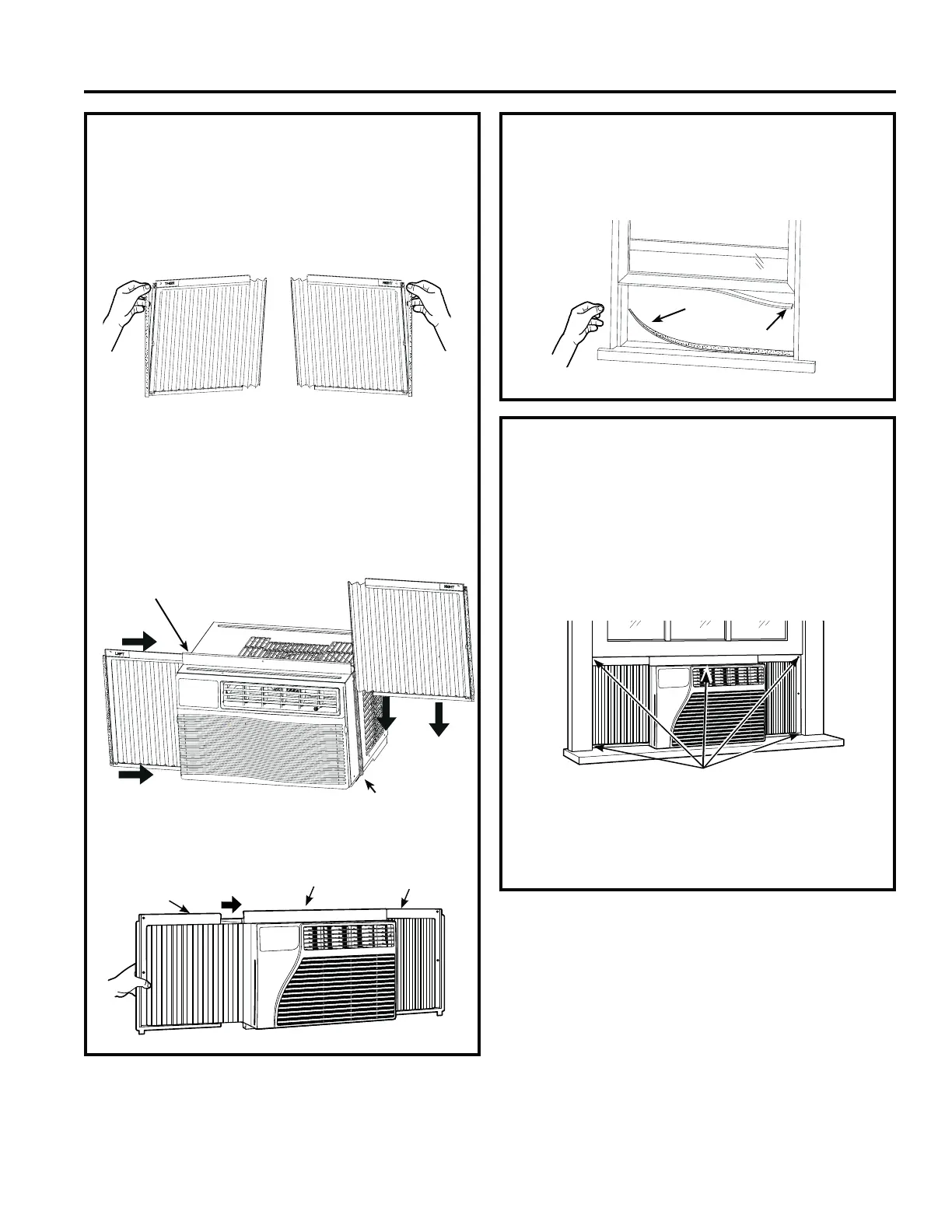

INSTALLATION INSTRUCTIONS
4. PREPARE THE AIR
CONDITIONER (cont.)
C. Remove the backing from the accordion seal
(two short strips). Stick one sealing strip
respectively on the left side and right side of
the accordion panels, as shown.
D. Slide the free end of the accordion panel into
the side panel rails. Slide the panel down. Be
sure to leave enough space to slip the top
and bottom of the frame into the rails on the
cabinet.
NOTE: There is a right and a left accordion
panel. Be sure to use the proper panel for each
side.
E. Slide the left and right accordion panels into the
top and bottom mounting rails.
6. INSTALL THE AIR CONDITIONER
IN THE WINDOW
A. Place the air conditioner on the sill with the
bottom mounting rail against its back edge.
Center it and close the window securely behind
the top mounting rail. It should be level or
VOLJKWO\WLOWHGWRWKHRXWVLGH8VHDOHYHODERXW
a 1/3 bubble will be the correct case slant to
the outside.
B. Extend the left and right accordion panels to
the vertical window sashes and attach, through
the holes in the panels, with 5 Type B screws,
as appropriate.
5 PREPARE THE WINDOW
Cut the window seal (2 long strips) to the proper
length. Peel off the backing and attach the seal
to the underside of the window sash.
Top left
Top right
Top mounting rail
Type B screws
Sealing Strip
(with adhesive)
Top mounting rail
Bottom
mounting rail
