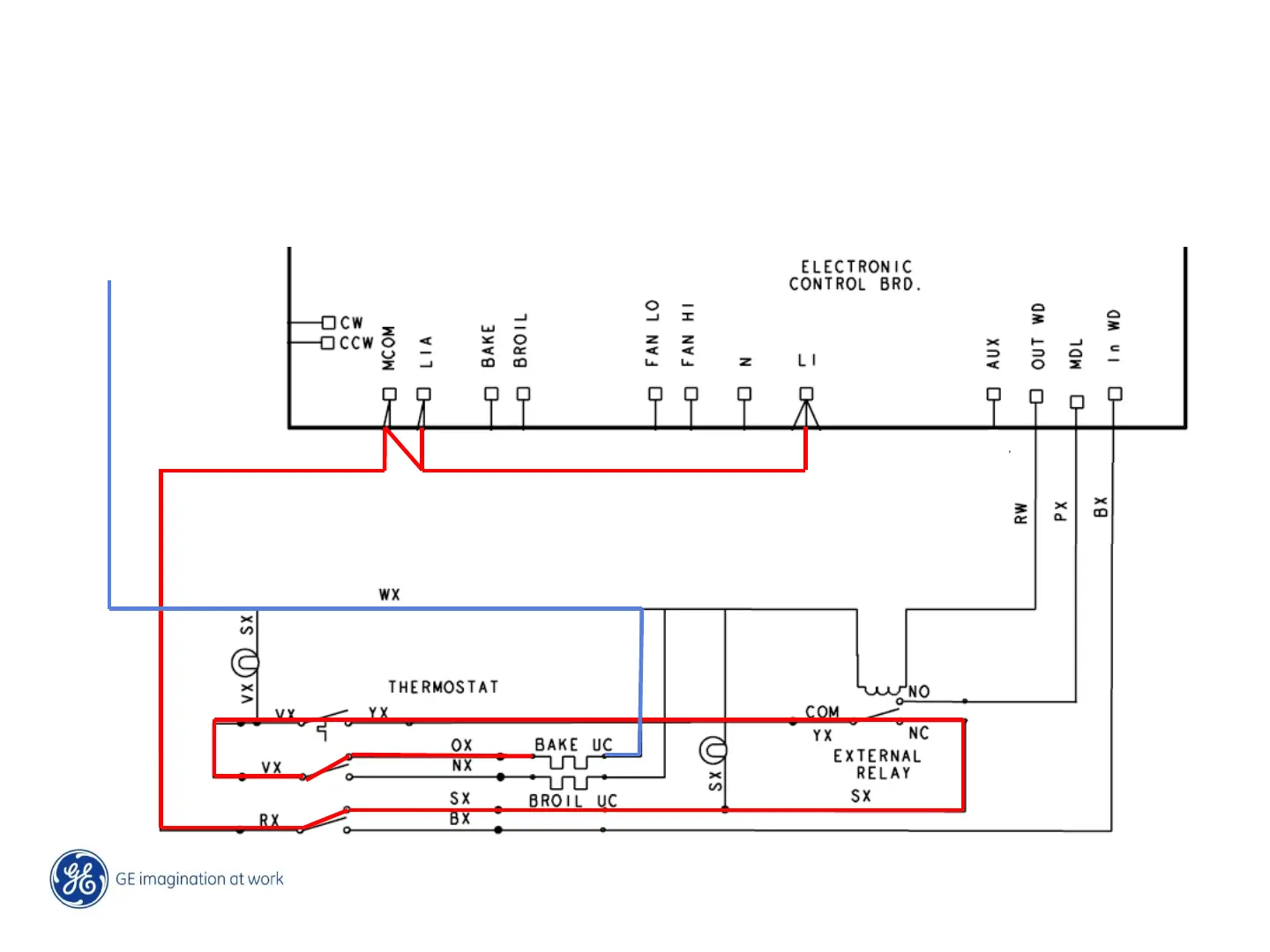

Upper Oven (DRT) Thermostat
The DRT is a hydraulic control thermostat. It receives L1 power from a jumper at the
ERC L1. Line power is sent through the RX to SX wire contact and then through the
External relay contact. The cycling contact is on the YX to VX wires. The VX to OX is
closed for bake and VX to NX for broil.
