GE Café series

45 /
Copyright General Electric 2011
11/28/2011

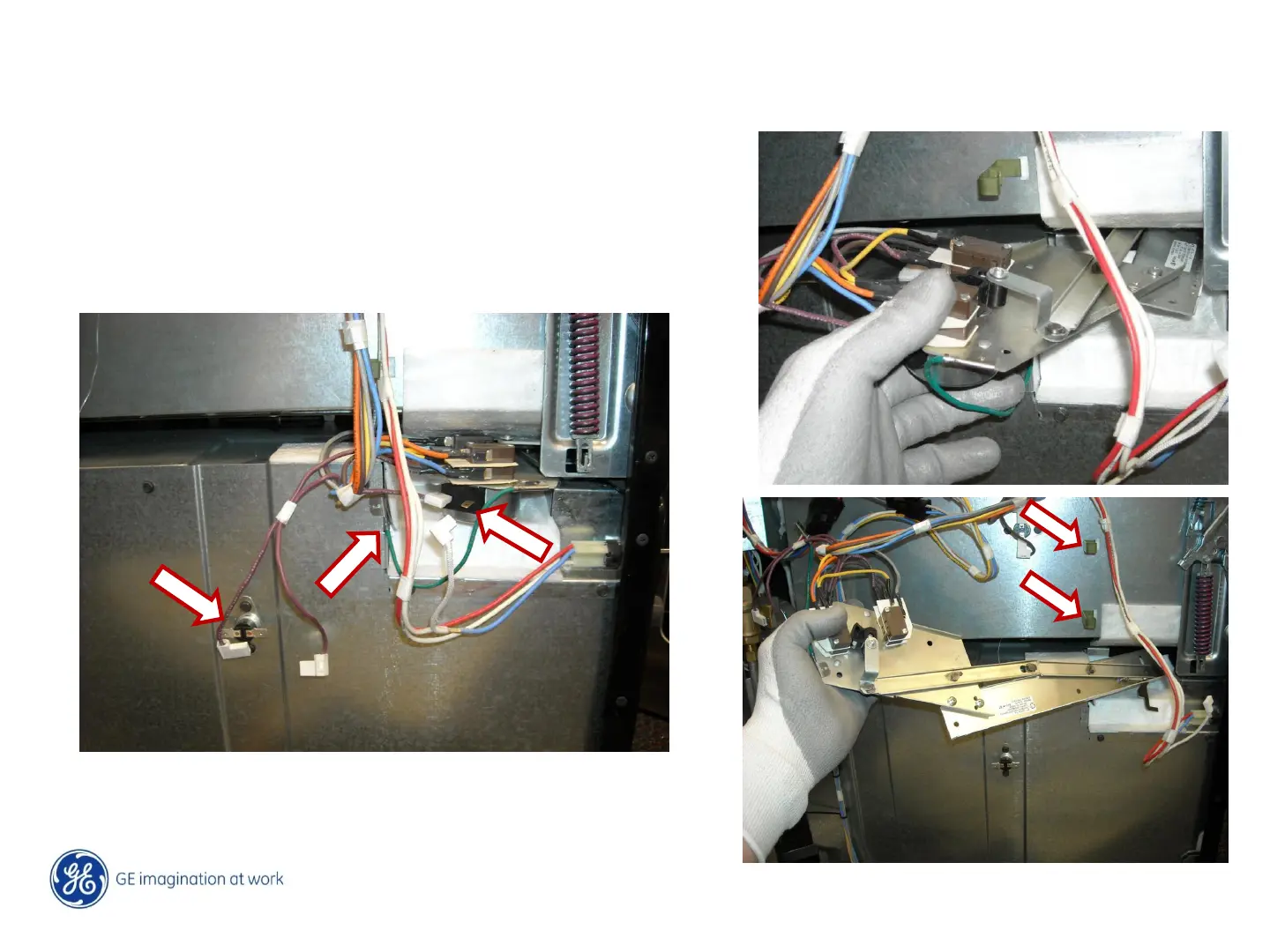

Lower Oven Latch Removal
The latch is replaced through the LH side with the side panel removed.
Disconnect the wiring to the TCO and white wire
that comes from the door switch to the latch motor,
disconnect the ground wire. Remove the wire
Bundle from the wire retainers.
Pull the latch assembly back and out of the frame.
Transfer the wires one at a time from the old
latch to the replacement latch.
