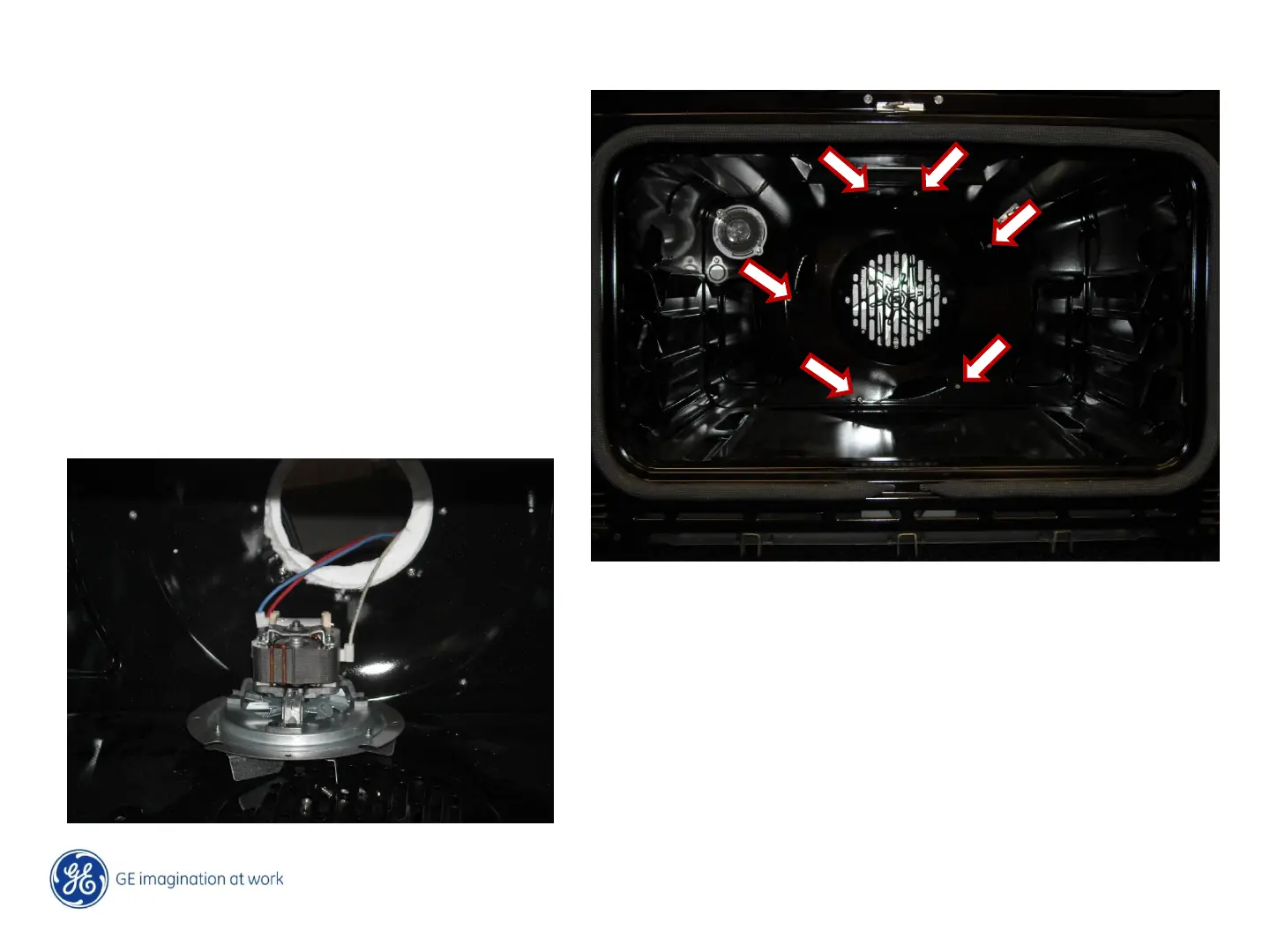

Convection Fan Motor
The convection fan motor is front
serviceable. Remove the 6 Phillips
screws from the cover.
Remove the fan blade and pull the
motor into the oven cavity. Remove
the ¼” hex screws that attach the
motor to the mounting plate.
