Bake & Broil Burners

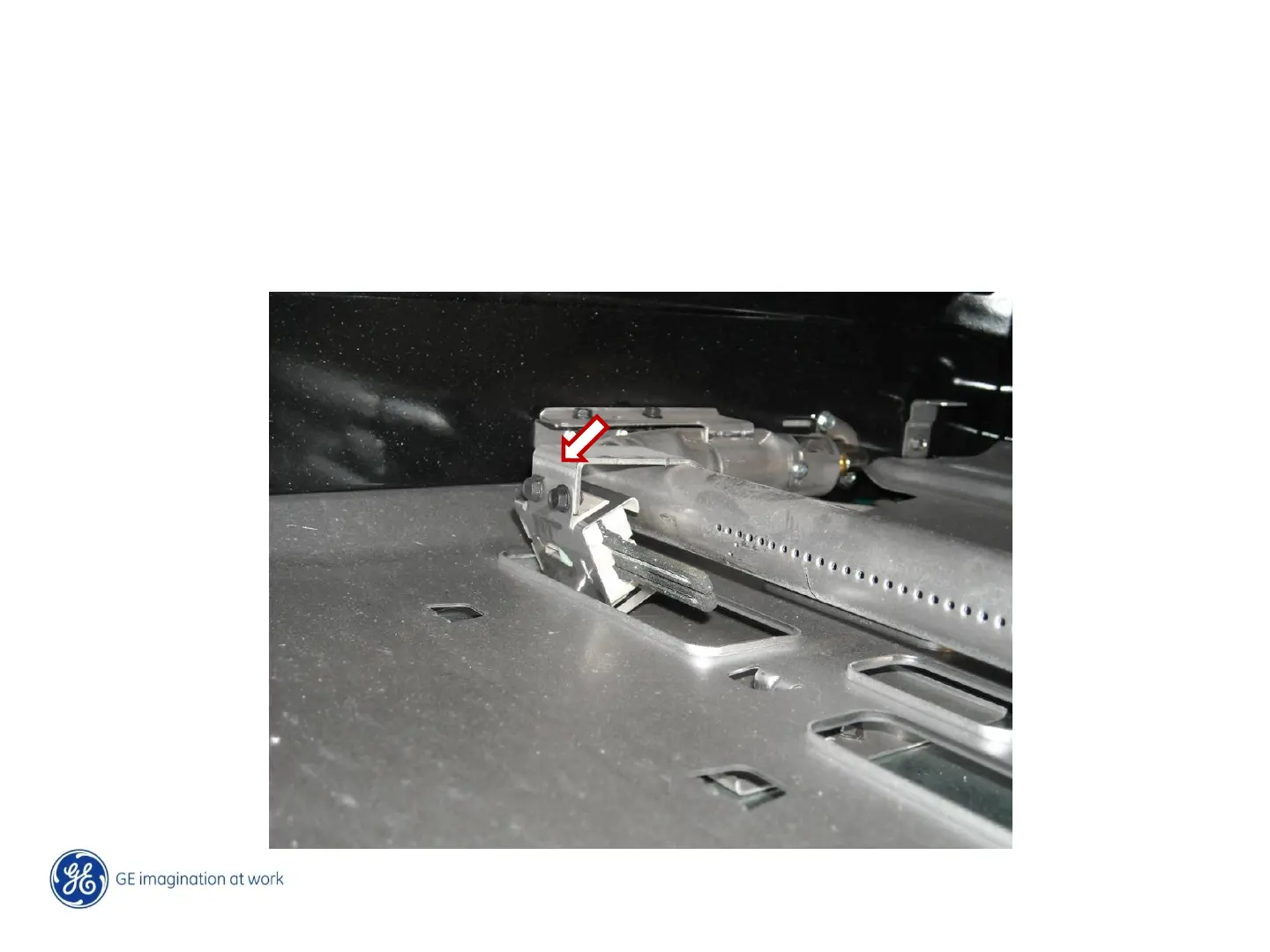

The bake burners utilize a non-caged glow bar igniter. Be sure to use the proper
replacement, these are NEW igniter parts, the wiring harness‟ are longer. The
igniter is secured to the burner bracket with two ¼” hex screws. To access the
harness plugs requires removal of the oven back panel. Glow bar amperage is
approximately 4 amps. The upper oven glow bar is caged since it is open to the
oven cavity.
