GE Café series

61 /
Copyright General Electric 2011
11/28/2011

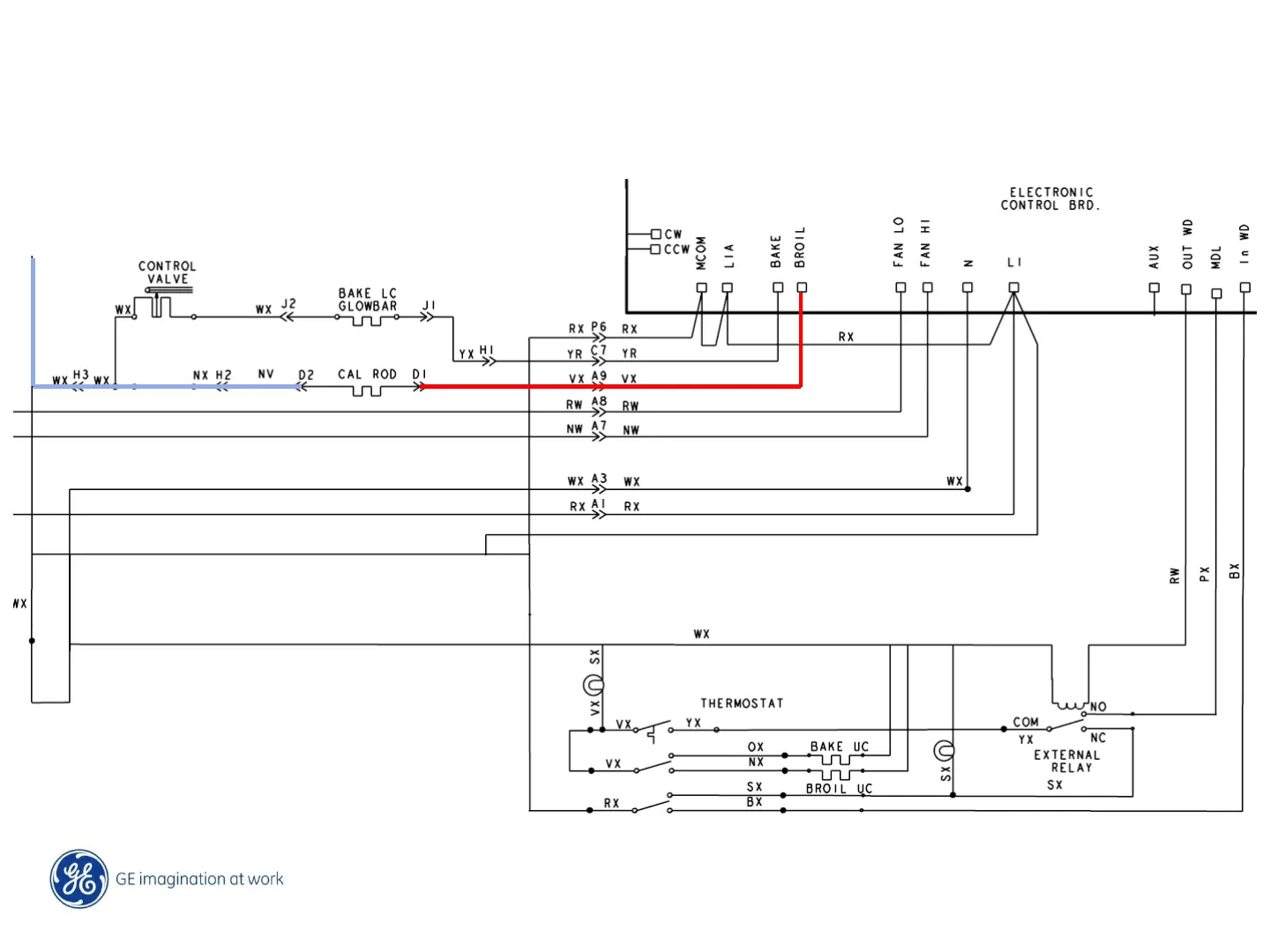

Café Lower Oven Broil Unit
Café‟ models utilize an upper broil calrod. The ERC closes the broil relay sending 120
volts to the element. The element resistance is 12 ohms and draws approximately 10
amps.
