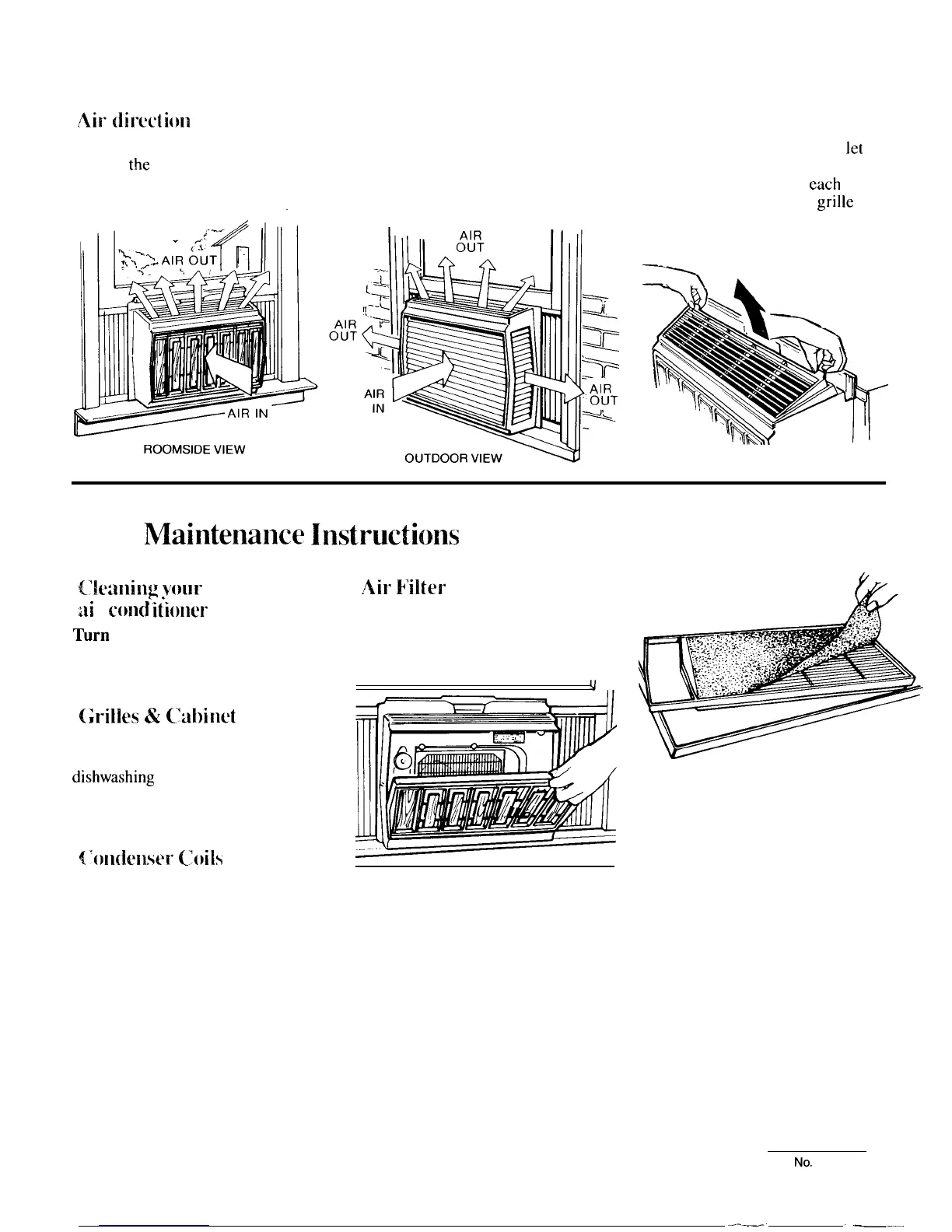

Air direction on the indoor side is
Air direction on the outdoor side is
through
the
front grille and out the
through the rear grille and out
top. Air flow out the top should not
through the top and side louvers.
be obstructed by curtains or drapes.
The top grille has 3 settings to
let
you vary the angle of the air
discharge. Grasp tabs on
each
end
and pull it up until the top
grille
stops at the setting you want.
User
Maintel~a~~ce
Instructions
<’leiilliIl$
yollr
k]i
r
c’()~ld
Iti(]ller
~rn
air conditioner off and
remove plug from wall receptacle
before cleaning.
{;rilles
&
(~ill~irlet
Wipe grilles with a clean cloth
lightly dampened with mild liquid
dishwashing
detergent. Wash
cabinet with mild soap or detergent
and lukewarm water.
(
‘OIl(ieiIst~r
CU(}ils
These coils on the weather side
of the unit should be checked
periodically and cleaned if clogged
with dirt or soot from the atmosphere.
If extremely soiled, they may need
to be steam cleaned, a service
available through your General
Electric service outlet.
.Air
E’ilter
The foam air filter behind the
inlet grille should be washed at
least every 30 days or as often as
it needs cleaning.
~
II
Remove the inlet grille by grasping
the tab at the top of the grille, pulling
out and lifting grille out.
Place the grille on a flat surface
and remove the filter. Wash the
filter in hot, soapy water, just as
you would a sponge. Squeeze dry.
To reinstall the filter, place it on
pins located on the back side of
the grille.
To replace the grille, place the two
tabs at the bottom of the grille into
slots on the case and push the grille
forward.
5
Pub.
No.
49-7162-0
—-—.
.—
