GE Industrial Control Systems GEEP-124-I Copyright 1997,1998 The General Electric Company, USA38
GEEP-124-I Horizontal Induction Motor
WPI, Antifriction Bearing
Parts Identification
1. Stator Frame
2. Stator Laminations
3. Rotor Laminations
4. Stator Windings
5. Fan
6. Air Deflector
7. Upper Half End Shield
8. Inner Bearing Cap
9. End Shield Gasket (when used)
10. Slinger Set Screw (when used)
11. Shaft
12. Bearing Locknut Assembly
13. Antifriction Bearing
14. Lower Half End Shield
15. Conduit Box
16. Exhaust Port Screen
17. Lower Half End Shield
18. Inner Bearing Cap
19. Bearing Insulation
20. Antifriction Bearing
21. Cover
22. Bearing Locknut Assembly
23. End Shield Gasket (when used)
24. Upper Half End Shield
25. Air Deflector
26. Fan
27. Dowel Pin
28. Heater

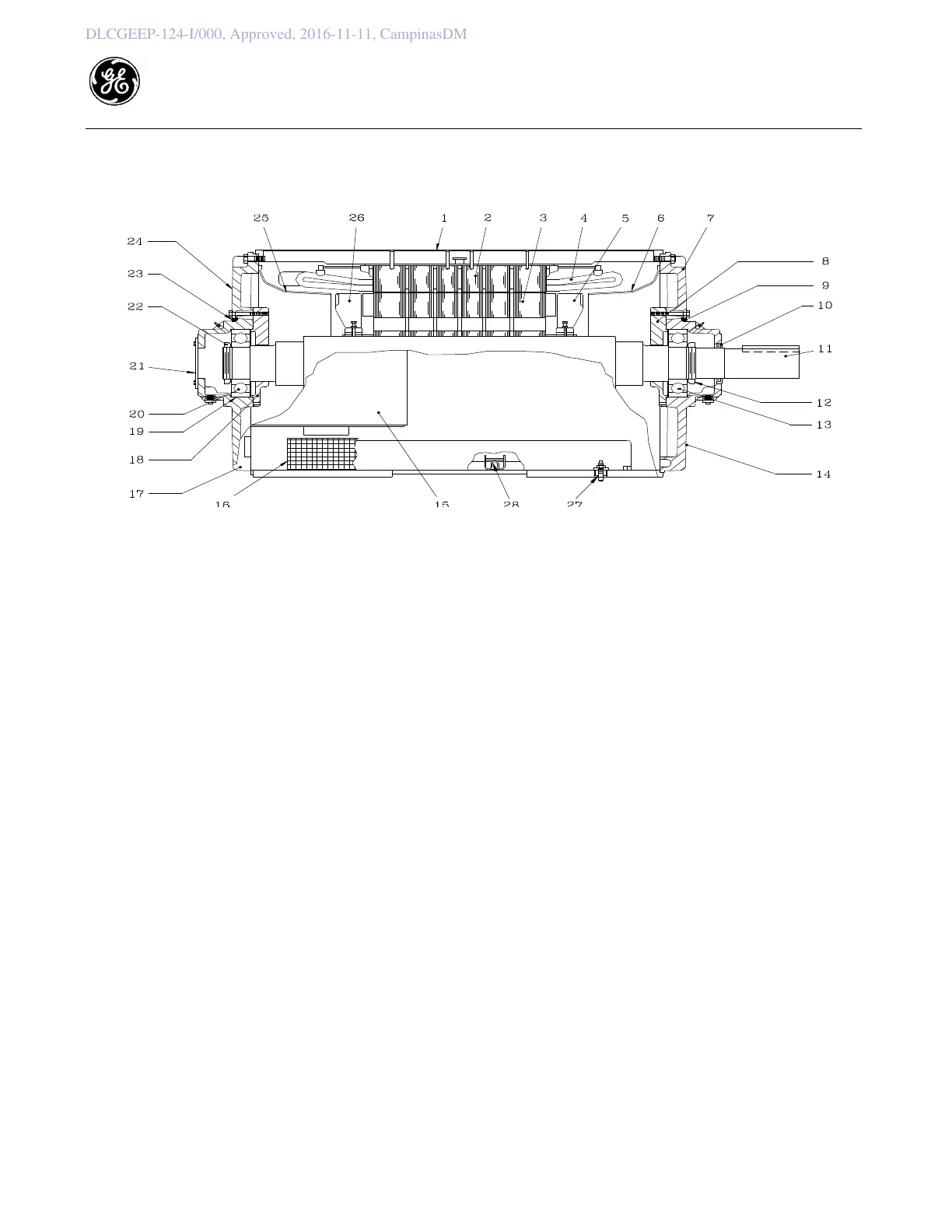

Fig. 1 General view -Antifriction Bearing
General
To assist in identifying the machine parts, and
general view Fig. 1 is presented in this page. Each parts
is marked by a reference number for identification. This
listing is generated from the parts list for this machine.
Use of the general view and the list permits easy
identification of each machine part by its actual number.
When ordering spare or renewal parts, include this part
number in addition to the model and serial number of
the machine.
