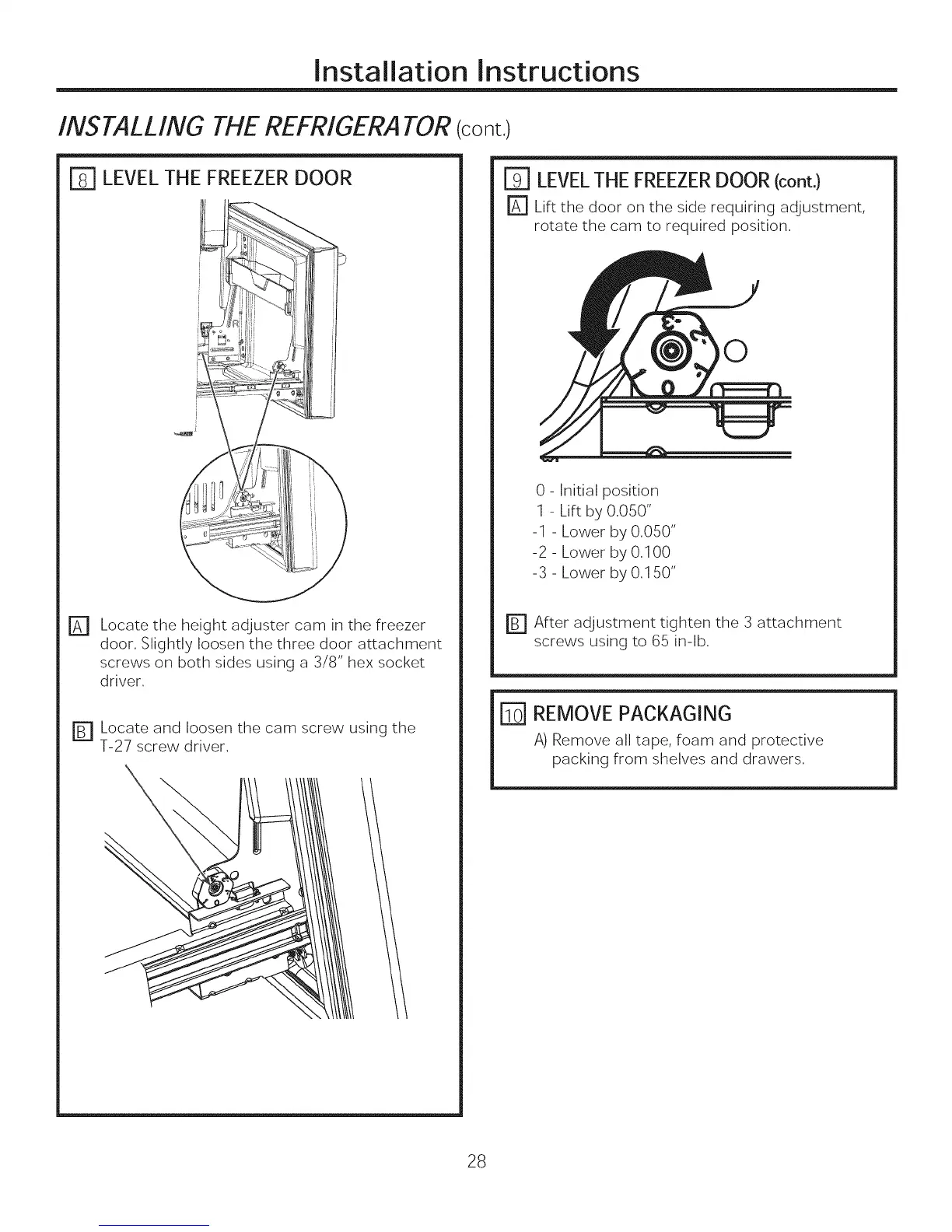

Installation Instructions
INSTALLING THE REFRIGERATOR (cont.)
LEVEL THE FREEZER DOOR
D
Locate the height adjuster cam in the freezer
door. Slightly loosen the three door attachment
screws on both sides using a 3/8" hex socket
driver.
r_ Locate and loosen the cam screw using the
T-27 screw driver.
\
LEVELTHE FREEZERDOOR(cont.)
[] Lift the door on the side requiring adjustment,
rotate the cam to required position.
0
0 - Initial position
1 - Lift by 0.050"
-1 - Lower by 0.050"
-2 - Lower by 0.100
-3 - Lower by 0.150"
r_ After adjustment tighten the 3 attachment
screws using to 65 in-lb.
[_1 REMOVE PACKAGING
A) Remove all tape, foam and protective
packing from shelves and drawers.
28
To Next Page
