REINSTALLING FRENCH DOORS (Cont.) (on some models)
3
REHANGING THE LEFT DOOR (Cont.)

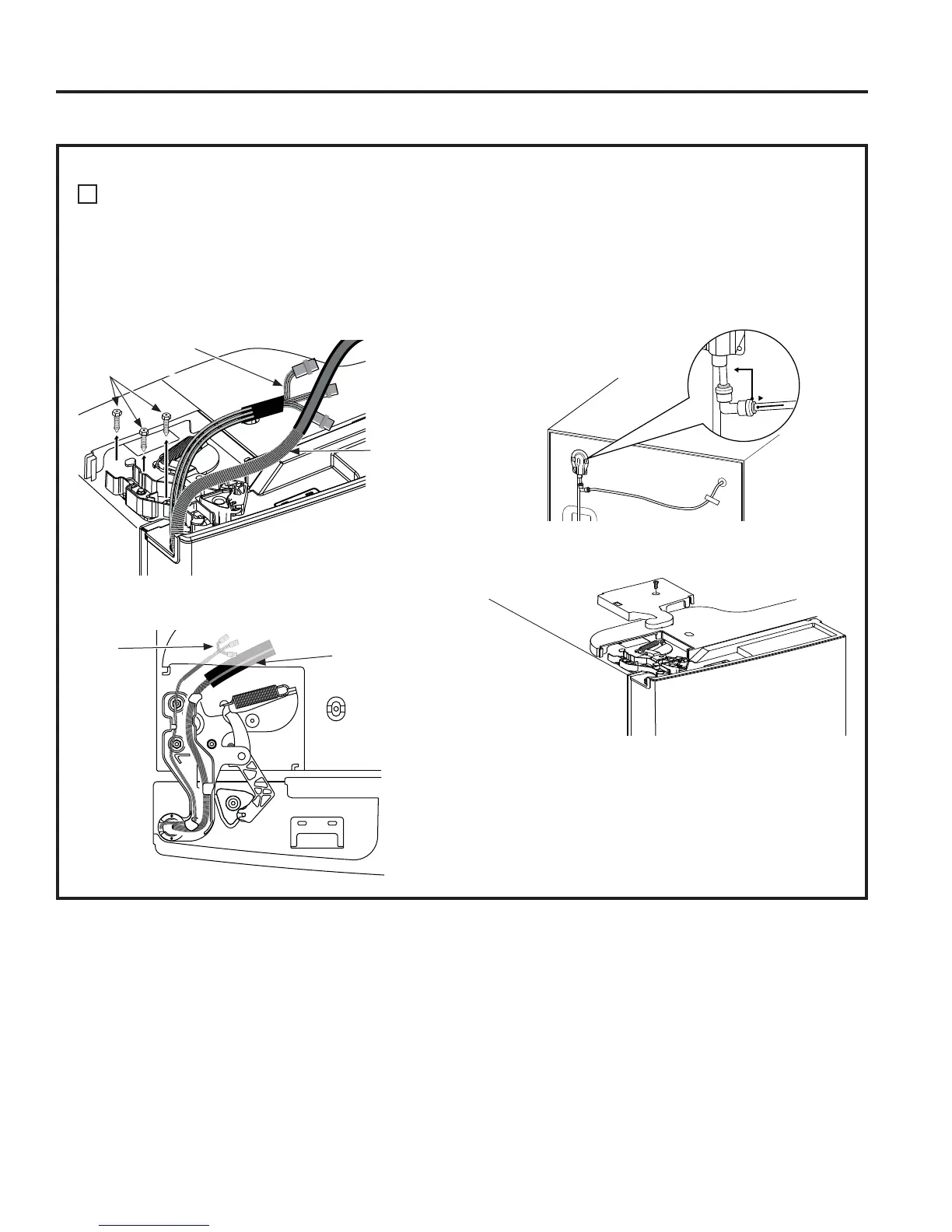

C. Make sure the door is aligned with the
cabinet. Attach the hinge to the top of the
cabinet loosely with bolts removed earlier.
D. Make sure the gasket on the door is flush
against the cabinet and is not folded. Tighten
the bolts to 60 lb/in. (6.78 Nm).
E. Plug the wire connectors together and rout the
wire inside the plastic port.
F. For Ice and Water Models Only: Put the
water line into the hole and pass through the
plastic port to the back of the refrigerator.
Plug the water line back into the fixture on
back of the refrigerator. Tape water line to
the refrigerator.
G. Replace the left hinge cover on top of the
refrigerator using a Phillips screwdriver.
Wire
Connectors
Water Line
,FHDQG:DWHU
Models Only)
Wire Connectors
Bolts
Water Line
,FHDQG
Water
Models
Only)
