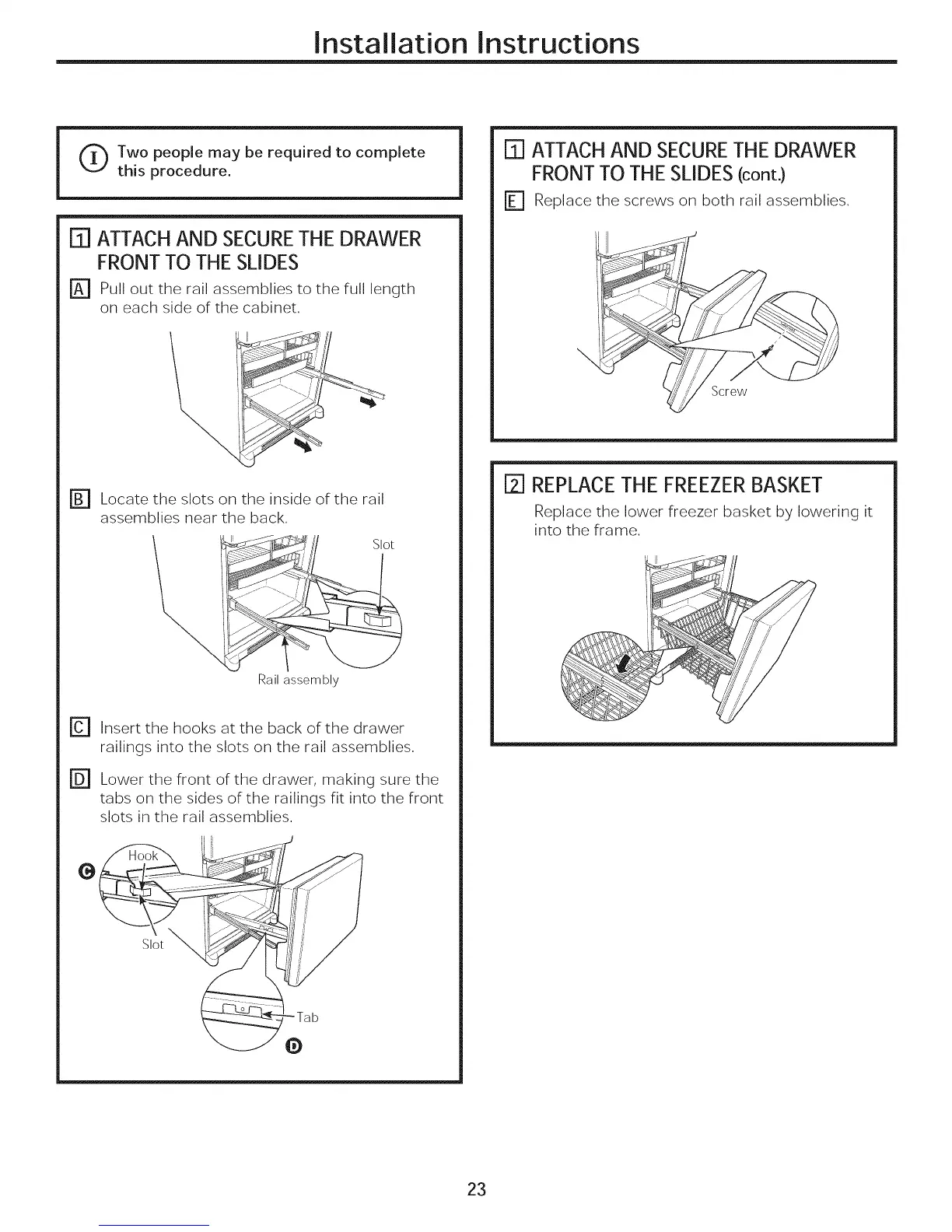

Installation Instructions
Two people may be required to complete
this procedure.
['{1 ATTACH AND SECURE THE DRAWER
FRONT TO THE SLIDES
[_] Pullout the rail assemblies to the full length
on each side of the cabinet.
[] Locate the slots on the inside of the rail
assemblies near the back.
Slot
Rail assembly
r_ Insert the hooks at the back of the drawer
railings into the slots on the rail assemblies.
r_ Lower the front of the drawer, making sure the
tabs on the sides of the railings fit into the front
slots in the rail assemblies.
G
--Tab
1]] ATTACH AND SECURE THE DRAWER
FRONTTO THE SLIDES(cont.)
[] Replace the screws on both rail assemblies.
\
Screw
[] REPLACE THE FREEZER BASKET
Replace the lower freezer basket by lowering it
into the frame.
23
