Installation Instructions
LOCATION OF YOUR WASHER
Do Not Install the Washer:
1. In an area exposed to dripping water or outside
weather conditions. The ambient temperature
should never be below 60°F (15.6°C) for proper
washer operation.
2. In an area where it will come in contact with curtains or
drapes.
3. On carpet. The floor MUST be a hard surface with
a maximum slope of 1/2s per foot (1.27 cm per
30 cm). To make sure the washer does not vibrate
or move, you may have to reinforce the floor.
NOTE: If floor is in poor condition, use 3/4s impregnated
plywood sheet solidly attached to existing floor covering.
*NOTE:
With Legs: 40 1/2” (102.5 cm) - (3/4” (1.9 cm) adjustability)
With Built-In Riser™: 46” (117 cm) - (3/4” (1.9 cm) adjustability)
With Optional Pedestal (GFXP1308): 52” (132.1 cm) - (3/4” (1.9 cm) adjustability)
Stacked: 78 1/4” (198.8 cm)
IMPORTANT:
Minimum Installation Clearances
• When installed in alcove: Sides, Rear,
Top = 0s (0 cm)
• When installed in closet: Sides, Rear,
Top = 0s (0 cm), Front = 1s (2.54 cm)
• Closet door ventilation openings required:
2 louvers each 60 square in. (387 cm), located 3s
(7.6 cm) from top and bottom of door

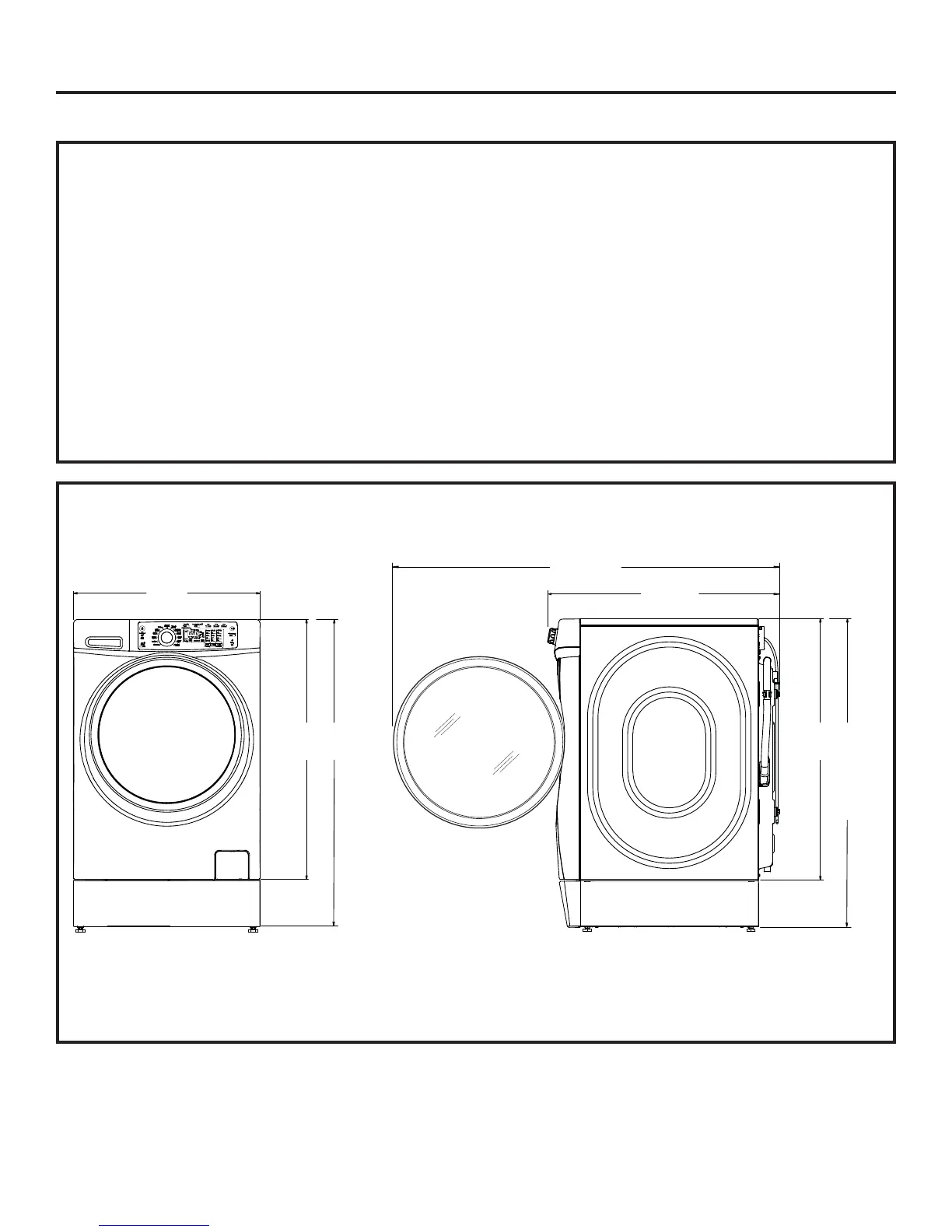

ROUGH-IN DIMENSIONS
19
FRONT
39”*
(99cm)
35”
(88.9cm)
28”
(71.12cm)
SIDE
46”*
(117cm)
39”*
(99cm)
46”*
(117cm)
Built-In
Riser™
models
only
54 3/8”
(138.2cm)
