4
Installation Instructions

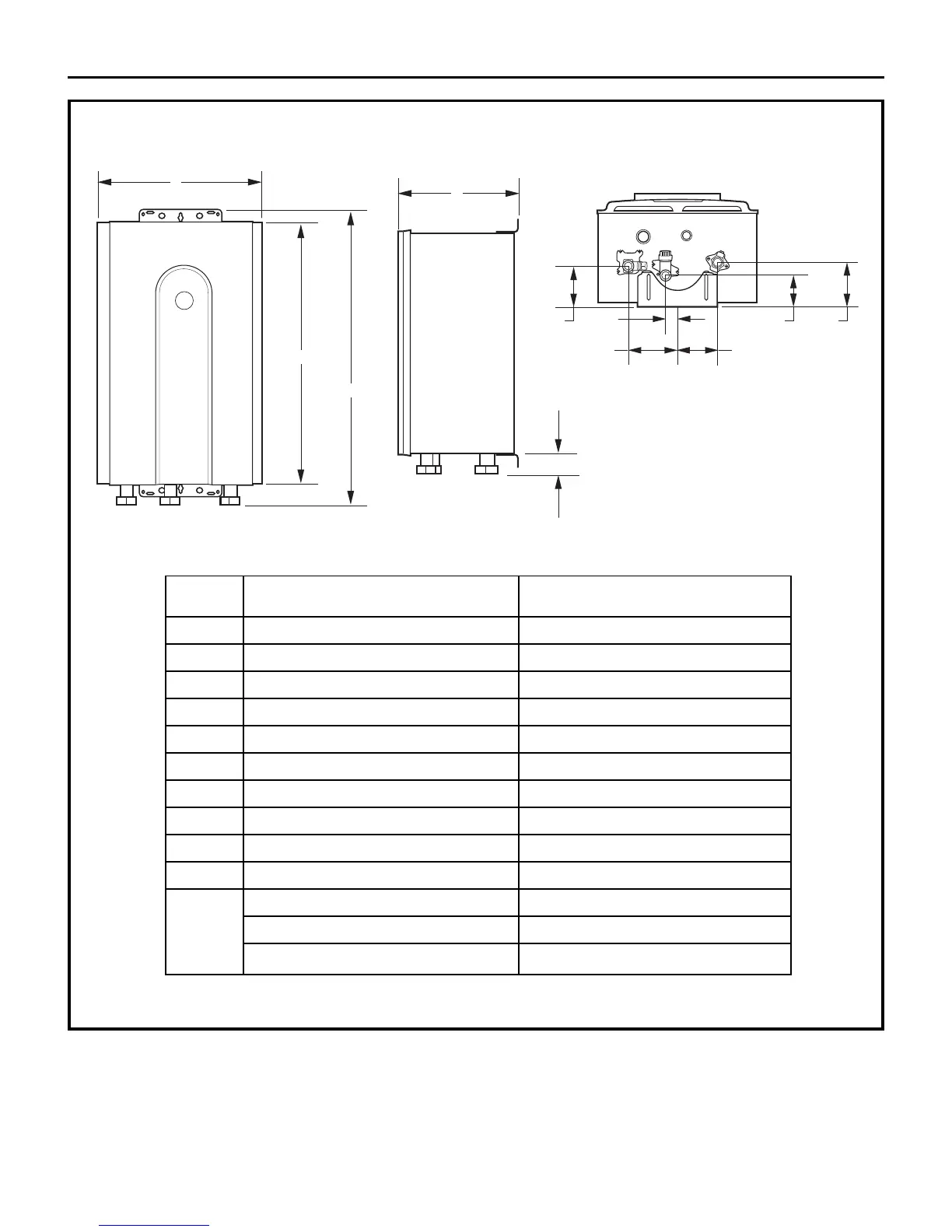

DIMENSIONS
*This is the minimum dimension from the wall. The wall bracket is adjustable to allow an additional 1.57 inches (40 mm).
GN75/GN94/GP94DNSRSA
DIM. DESCRIPTION IN. (MM)
A Width 14 (355.6)
B Depth 9
5
⁄8 (244.5)*
C Height – Unit 22
7
⁄8 (582)
D Height – with brackets 25
1
⁄2 (647.7)
E Hot Water Outlet – from wall 3
5
⁄8 (91)*
F Hot Water Outlet – from center 4
5
⁄16 (110)
G Cold Water Inlet – from wall 2
13
⁄16 (70)*
H Cold Water Inlet – from center 1
1
⁄8 (27)
I Gas Connection – from wall 3
7
⁄8 (99)*
J Gas Connection – from center 3
1
⁄2 (89)
From base to gas connection 1
5
⁄8 (40)
K From base to cold connection 2 (50)
From base to hot connection 1
5
⁄8 (41)
A
C
D
K
B
E
H
F
J
G
I
