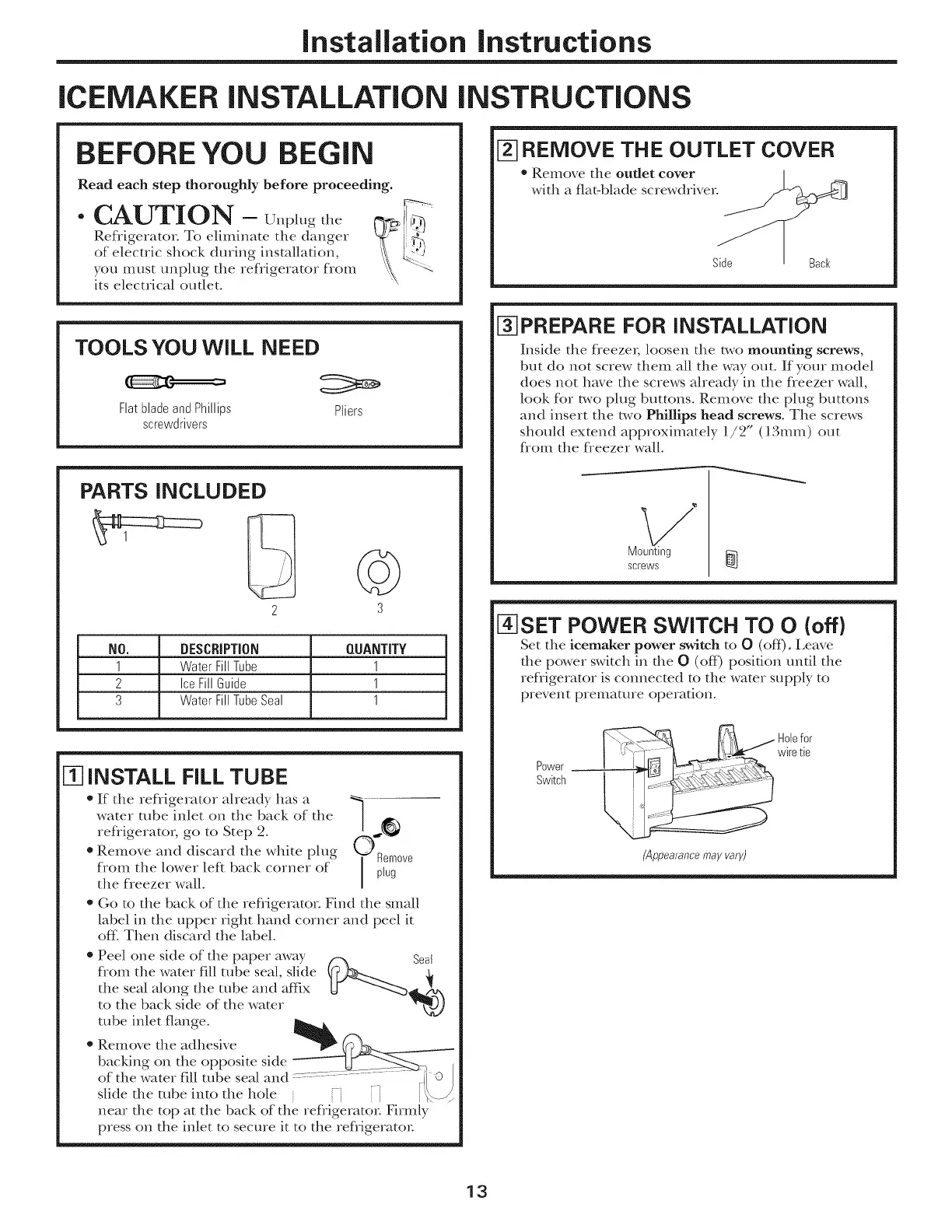

Installation instructions
ICENIAKER iNSTALLATiON
BEFORE YOU BEGIN
Read each step thoroughly before proceeding.
CAUTION - U,,pl.:the
Refligerator To eliminate the danger
of electric shock during installation,
you must unplug the refligerator flom
its electrical outlet.
TOOLS YOU WILL NEED
Flatblade andPhillips Pliers
screwdrivers
PARTS INCLUDED
2
©
3
NO. DESCRIPTION QUANTITY
1 Water Fill Tube 1
2 IceFill Guide 1
3 Water Fill TubeSeal 1
m INSTALL FILL TUBE
• If the refligerator aheady has a
water tube inlet on the back of the
refiigerator, go to Step 2.
• Remove and discard the white plug
flom the lower left back corner of
the fleezer wall.
* Go to the back of the refligerator. Find the small
label in the upper right band corner and peel it
off_Then discard the label.
Peel one side of the paper away _ Seat
flom the water fill tube seal, slide Ir'___
the seal along the tube and affix u -_-o4_._,'X,x
to the back side of the water
robe inlet flange.
Remove the adhesive
bacMng on the opposite side
of the water fill robe sea/and
slide the robe into the hole _
near the top at the back of the refiigeratcn: Fhmly
press on the inlet to secure it to the refligerator
iNSTRUCTIONS
_] REMOVE THE OUTLET COVER
• Remove the outlet cover
with a fiat-blade screwdriver
Side Back
_PREPARE FOR INSTALLATION
Inside the fleezeL loosen the h,vo mounting screws,
but do not screw them all the way out. If your model
does not have the screws aheady in the fieezer wall,
look for t_,vo plug buttons. Remove the plug buttons
and insert the two Phillips head screws. The screws
should extend approximately 1/2" (13ram) out
flom the fleezer wall
Mounting
screws
[-4-]SETPOWER SWITCH TO 0 (off)
Set the icemaker power switch to O (of_). Leave
the power switch in the O (offc) position undl the
refiigerator is connected to the water supply to
prevent premature operation.
_ Holef?r
wiretie
SwitchP°wer ......__+...........- -%
(Appearance may vary)
13
To Next Page
