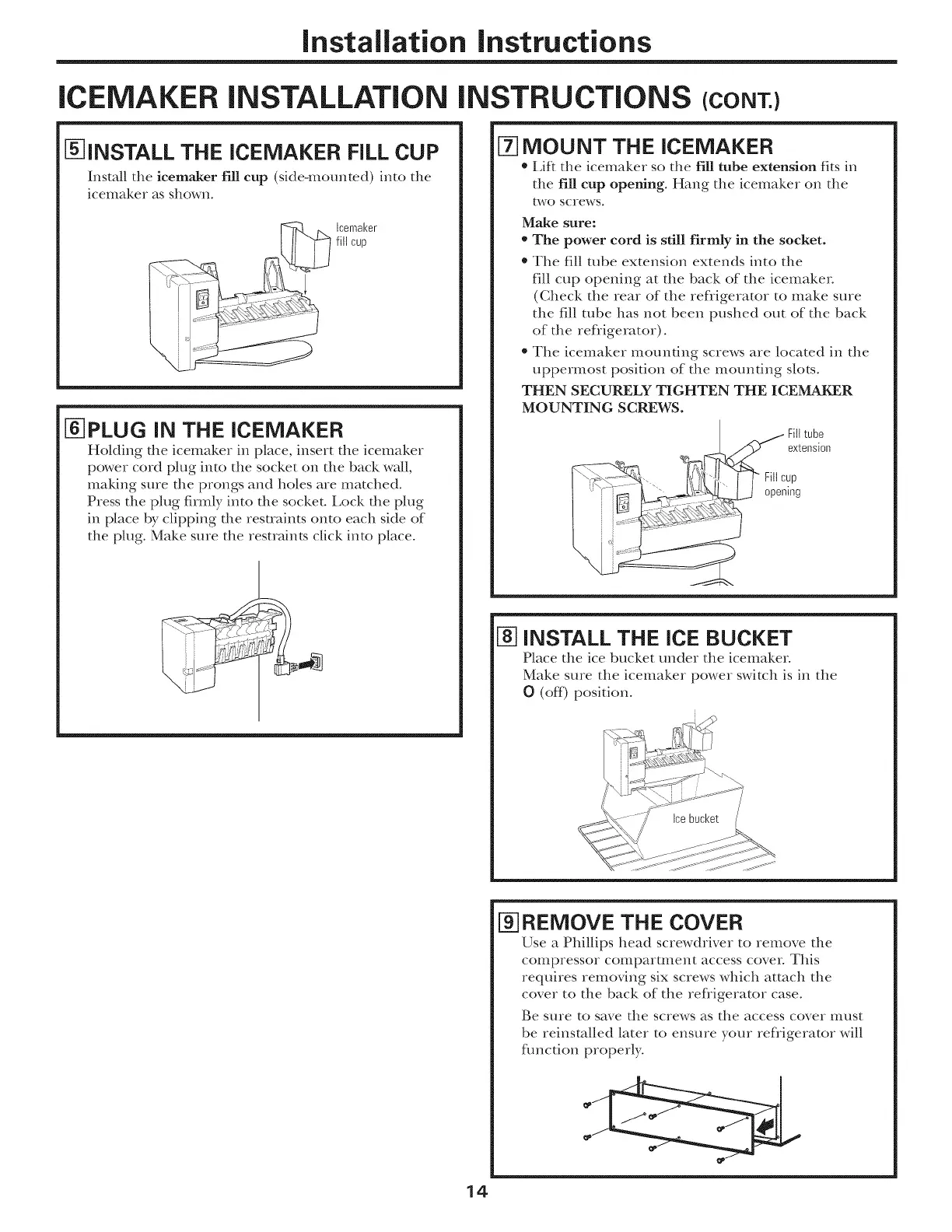

Installation instructions
ICEMAKER
[_INSTALL THE ICEMAKER FiLL CUP
Install tile icemaker fill cup (skte-mounted) into tile
icemaker as shown.
iNSTALLATiON iNSTRUCTiONS (CONT.I
Icemal<er
fill cup
[_PLUG IN THE ICEMAKER
Hokling die icemaker in place, insert tile icemaker
power cord plug into the socket on tile back wall,
maMng sure tile prongs and boles are matched.
Press tile plug firmly into tile socket, i,ock the plug
in place by clipping the resuaints onto each side of
tile plug. Make sure tile restraints click into place.
[-/-]MOUNT THE ICEMAKER
, Lift tile icemaker so tile fill tube extension fits in
tile fir cup opening. Hang tile icemaker on tile
two screws.
Make sure:
*The power cord is still firmly in the socket.
* Tile fill tube extension extends into the
fill cup opening at tile back of tile icemaker
(Check tile rear of file refligerator to make sure
tile fill tube has not been pushed out of tile back
of tile refligerator).
* Tile icemaker Illotlnfing sclews are located in tile
uppermost position of tile mounting slots.
THEN SECURELY TIGHTEN THE ICEMAKER
MOUNTING SCREWS.
[_ INSTALL THE ICE BUCKET
Place tile ice bucket under tile icemaker.
Make sure tile icemaker power switch is in tile
0 (off) position.
_]REMOVE THE COVER
Use a Phillips head screwdriver to remove tile
conlpressor compartulent access cover. This
requires removing six screws which attach tile
cover to tile back of tile refligerator case.
Be sure to save tile screws as the access cover must
be reinstalled later to ensure your refligerator will
flmcdon properl>
