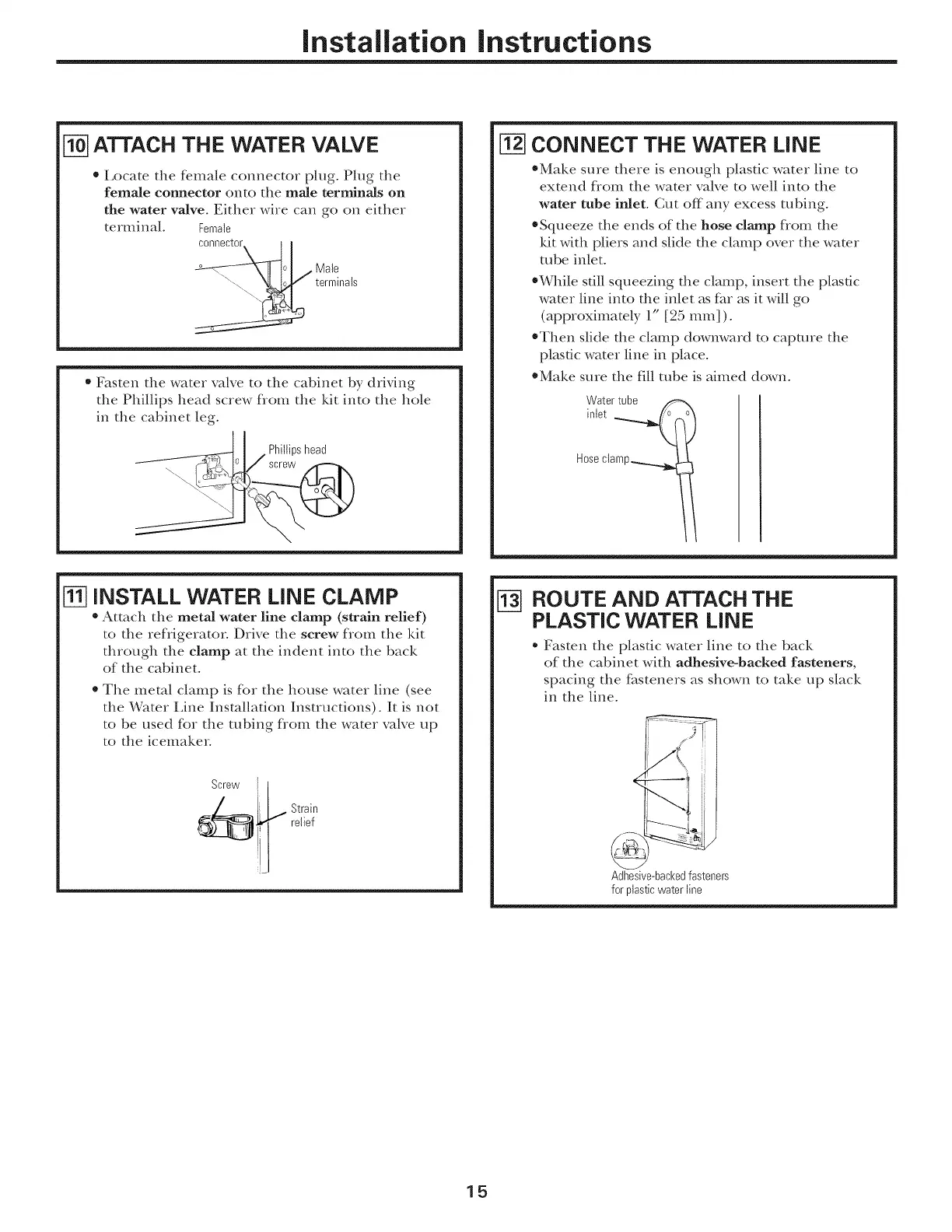

Installation instructions
[TO-]ATTACH THE WATER VALVE
* Locate the female connector plug. Plug the
female connector onto the male terminals on
the water valve. Either wire can go on either
terminal. Female
0I/Male
_,_ terminals
* Fasten the water valve to the cabinet by driving
the Phillips head screw flom the kit into the hole
in the cabinet leg.
_ I Phiitipshead
o / screw
[i-27CONNECT THE WATER LINE
*Make sure there is enough plastic water line to
extend flom the water valve to well into the
water tube inlet. Cut off any excess robing.
*Squeeze the ends of the hose clamp flom the
ldt with pliers and slide the clamp over the wamr
robe inlet.
*While still squeezing the clamp, insert the plastic
water line into the inlet as flu as it will go
(approximately 1" [25 IIlIIl]).
*Then slide the clamp dowm,vard to capture the
plasdc water line in place.
*Make sure the fill robe is aimed down.
Water tube
inlet __
Hose clamp._
[_] INSTALL WATER LINE CLAMP
• Attach the metal water line clamp (strain relief)
to the refligerator. Drive the screw flom the kit
through the clamp at the indent into the back
of the cabinet.
* The metal clamp is for the house water line (see
the Water Line Installation Instructions). It is not
to be used for the robing flom the water valve up
to the icemaker.
ROUTE AND ATTACH THE
PLASTIC WATER LINE
Fasten the plastic water line to the back
of the cabinet with adhesive-backed fasteners,
spacing the f_steners as shown to take up slack
in the line.
Adhesive-backedfasteners
for plasticwater line
