GE GXOF18K User Manual

5

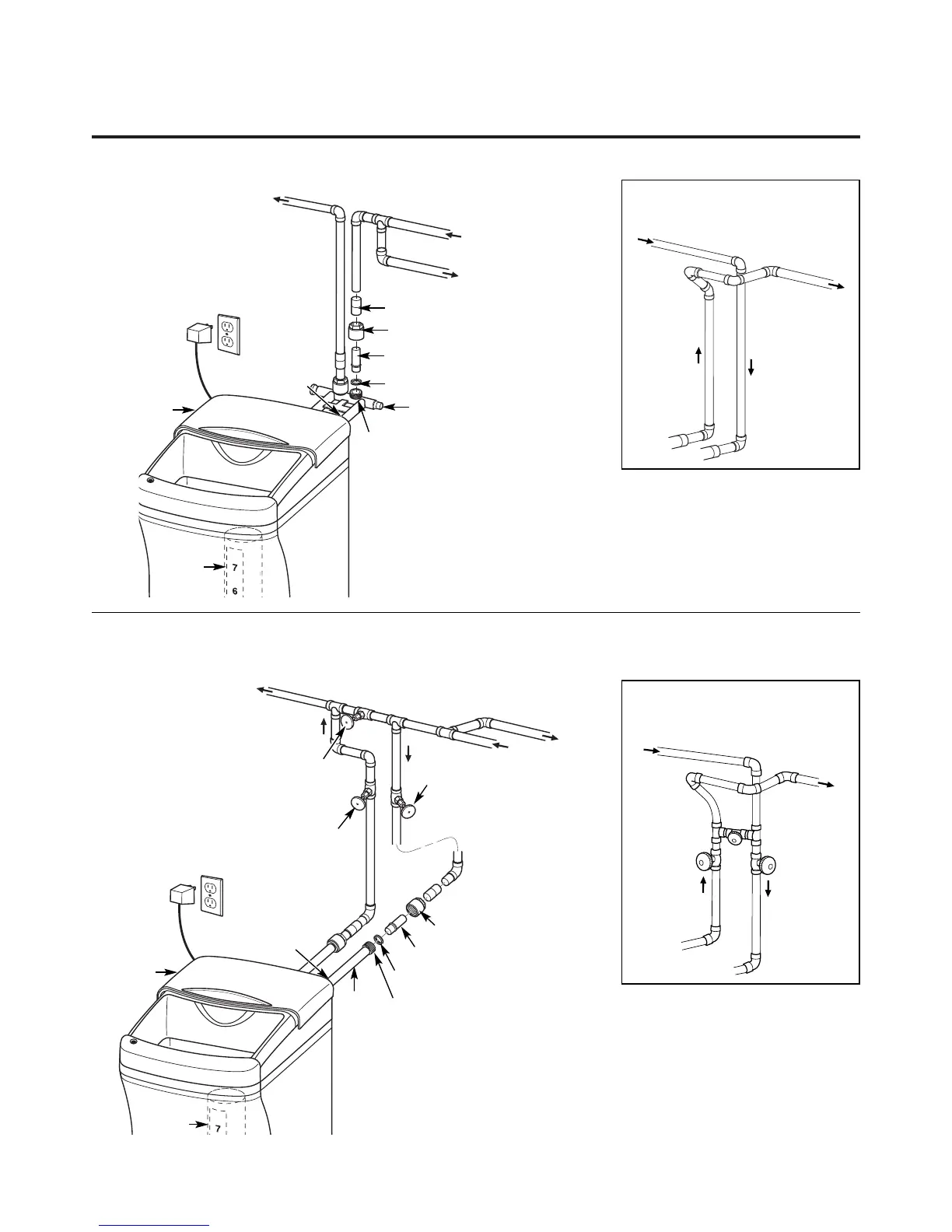

Typical Installation Illustration
Soft water
Hard water to
outside faucets
MAIN WATER PIPE
Hard water
NOTE: See Drain Hose Connections section.
24V transformer
220 -240 volt outlet
Bypass valve
Hard water to
outside faucets
Inlet valve
Outlet valve
3-Valve Bypass System
For soft water service:
• Open the inlet and
outlet valves
• Close the bypass valve
For bypass hard water:
• Close the inlet and
outlet valves
• Open the bypass valve
SALT
GOES HERE
Brinewell
INLET
Washer (2) (not supplied)
Copper tube, 3/4″ (2) (not supplied)
Installation nut (2) (not supplied)
Bypass Valve
• Pull out for soft water service
• Push in for bypass
Nut (2) (not supplied)
Copper tube, 3/4″ (2) (not supplied)
Washer (2) (not supplied)
Installation adapter (2) (see above)
INLET
Union (not supplied) (2)
Optional 3-Valve Bypass Installation Illustration
Adapters for this installation are not supplied with the softener.
Fig. 1
CROSSOVER
Use if water supply flows from the left.
Include single or 3-valve bypass.
Hard water
From softener
outlet
Soft water
To softener
inlet
Fig. 2
CROSSOVER
Use if water supply flows from the left.
Include single or 3-valve bypass.
Hard water
From softener
outlet
Soft water
To softener
inlet
MAIN WATER PIPE
Hard water
Soft water
220 - 240 volt outlet
24V
transformer
Brinewell
SALT
GOES HERE
Drain
(not shown)
Drain
(not shown)
Salt hole
cover
Salt hole
cover
