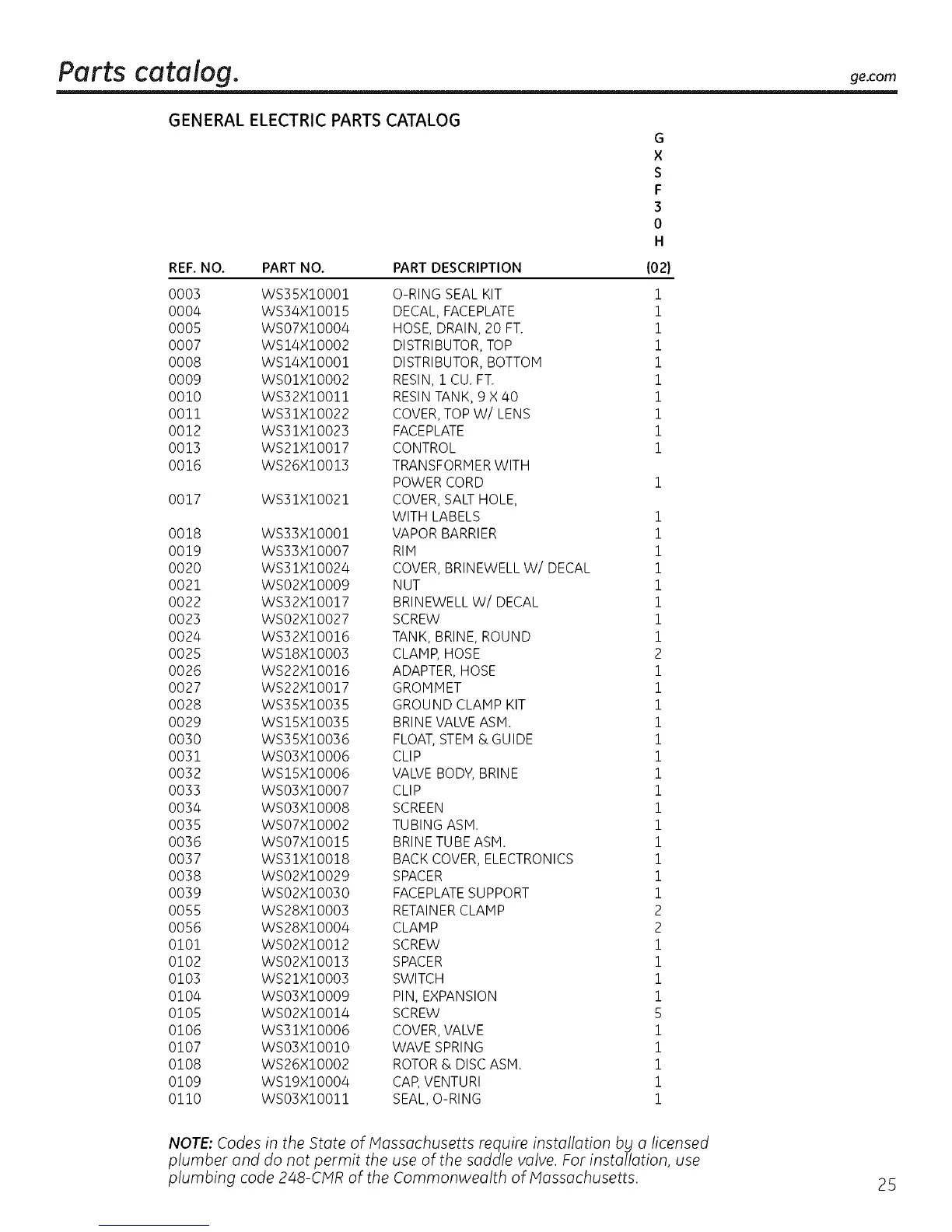

Parts catalog, go. o
GENERAL ELECTRIC PARTS CATALOG
G
X
S
F
3
0
H
REF. NO. PART NO. PART DESCRIPTION (02)
0003 WS35XlO001 O-RING SEAL KIT 1
0004 WS34XlO015 DECAL, FACEPLATE 1
0005 WSO7XlO004 HOSE, DRAIN, 20 FT. i
0007 WS14XlO002 DISTRIBUTOR, TOP i
0008 WS14XlO001 DISTRIBUTOR, BOTTOM i
0009 WSO1XIO002 RESIN, i CU. FT. i
0010 WS32XlO011 RESIN TANK, 9 X 40 i
0011 WS31XlO022 COVER, TOP W/LENS i
0012 WS31XlO023 FACEPLATE 1
0013 WS21XlO017 CONTROL 1
0016 WS26XlO013 TRANSFORMER WITH
POWER CORD i
0017 WS31XlO021 COVER, SALT HOLE,
WITH LABELS 1
0018 WS33XlO001 VAPOR BARRIER i
0019 WS33XIO007 RIM 1
0020 WS31XlO024 COVER, BRINEWELL W/DECAL 1
0021 WSO2XlO009 NUT 1
0022 WS32XlO017 BRINEWELL W/DECAL 1
0023 WSO2XlO027 SCREW 1
0024 WS32XlO016 TANK, BRINE, ROUND 1
0025 WS18XIO003 CLAMP, HOSE 2
0026 WS22XlO016 ADAPTER, HOSE 1
0027 WS22XlO017 GROMMET 1
0028 WS35XlO035 GROUND CLAMP KIT 1
0029 WS15XlO035 BRINE VALVE ASM. 1
0030 WS35XlO036 FLOAT, STEM & GUIDE 1
0031 WSO3XIO006 CLIP 1
0032 WS15XIO006 VALVE BODY, BRINE 1
0033 WSO3XIO007 CLIP 1
0034 WSO3XIO008 SCREEN 1
0035 WSO7XIO002 TUBING ASM. 1
0036 WSO7XIO015 BRINE TUBE ASM. 1
0037 WS31XIO018 BACK COVER, ELECTRONICS 1
0038 WSO2XlO029 SPACER 1
0039 WSO2XIO030 FACEPLATESUPPORT 1
0055 WS28XlO003 RETAINER CLAMP 2
0056 WS28XlO004 CLAMP 2
0101 WSO2XIO012 SCREW 1
0102 WSO2XIO013 SPACER 1
0103 WS21XIO003 SWITCH 1
0104 WSO3XIO009 PIN, EXPANSION 1
0105 WSO2XIO014 SCREW 5
0106 WS31X10006 COVER, VALVE 1
0107 WS03X10010 WAVE SPRING 1
0108 WS26X10002 ROTOR & DISC ASM. 1
0109 WS19X10004 CAP, VENTURI 1
0110 WS03X10011 SEAL, O-RING 1
NOTE: Codes in the State ofMassachusetts require installation bg a licensed
plumber and do not permit the use of the saddle valve. For installation, use
plumbing code 248-CMR of the Commonwealth of Massachusetts.
25
