Safety and Quick Start Guide IO61X-BAT-KIT
Page 10 of 11 [EN] English – 109M7337 Rev -
Install Dry Cell Batteries 1.4
1. Remove the battery cover by loosening the captive battery
cover fixing screw and lifting the cover upwards.
2. If the rechargeable battery has been fitted, remove it.
3. If the rechargeable battery cradle has been fitted, remove it by
gently pulling it straight up. Avoid touching the metal contacts
on the cradle. Note the cradle is attached to the unit with the
charging cable.
4. Disconnect the charging cable from the back of the cradle and
keep it loose in the small compartment then fit battery holder.
5. Fit the foam block to the battery cover.
6. Place the batteries in the battery compartment with the correct
+/– orientation. Incorrect Insertion of batteries can cause
battery failure.
7. Replace the battery cover by pressing the lugs inside the slots (A)
and bring down the cover, securing by tightening the fixing
screw. (See Figure 4).

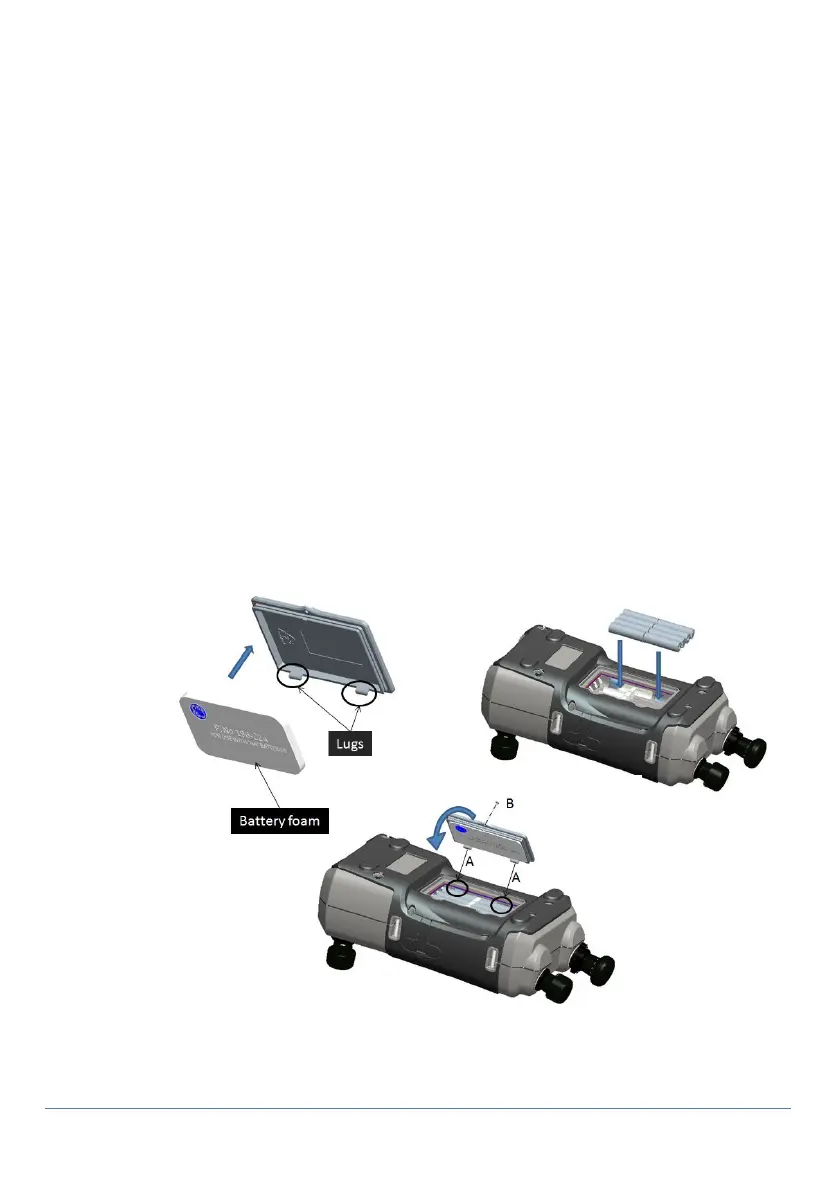

Figure 4 Fit Dry Cell Batteries
