Safety and Quick Start Guide IO61X-BAT-KIT
Page 9 of 11 [EN] English – 109M7337 Rev -
Install the rechargeable battery in DPI612 units. 1.3
1. Remove the battery cover by unscrewing the retaining screw and
lifting the cover upwards.
2. Remove the old CC3800GE battery if fitted.
3. Insert the CC3800GE rechargeable battery into the compartment
as shown in Figure 3.
4. Refit the battery cover by locating the lugs of the cover (A) at an
angle into the slots and close the compartment as shown in
Figure 3.
5. Refit the battery cover retaining screw.

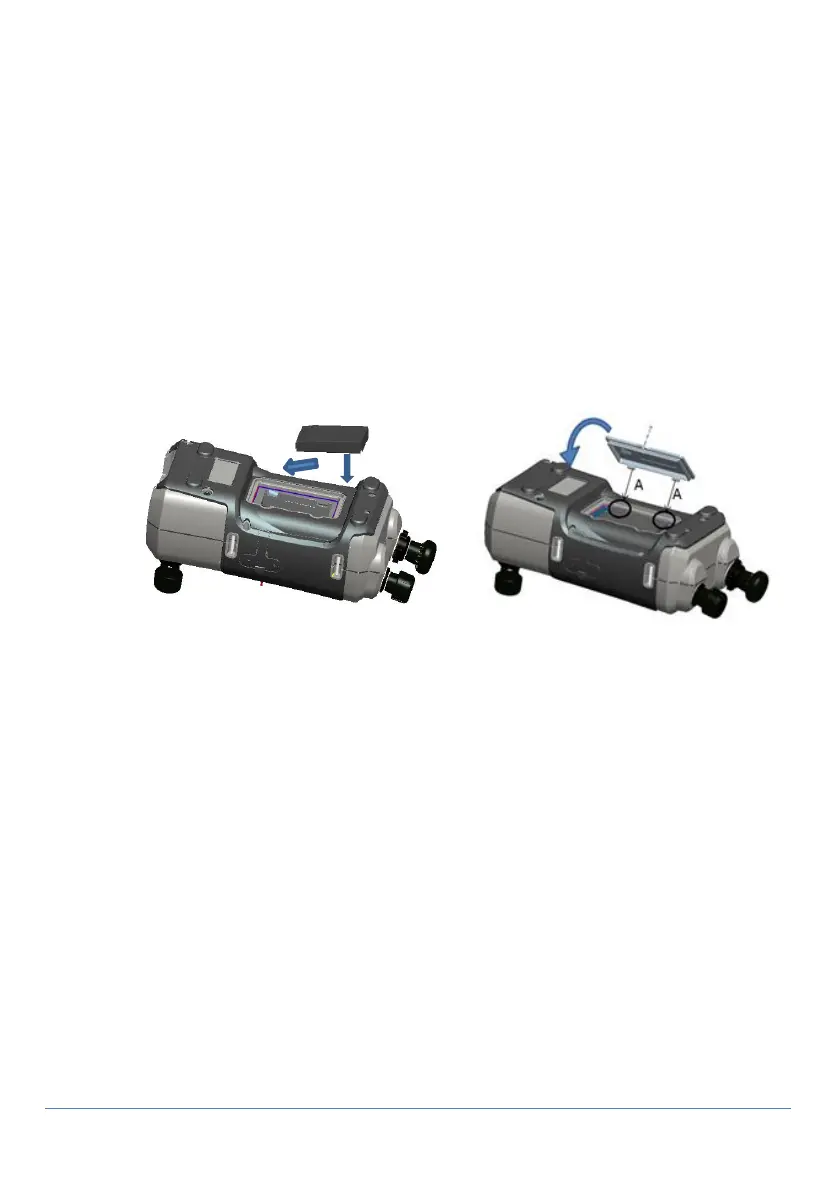

Figure 3 Fit Rechargeable Battery
Fit Rechargeable Battery Kit
