4
Installation Instructions

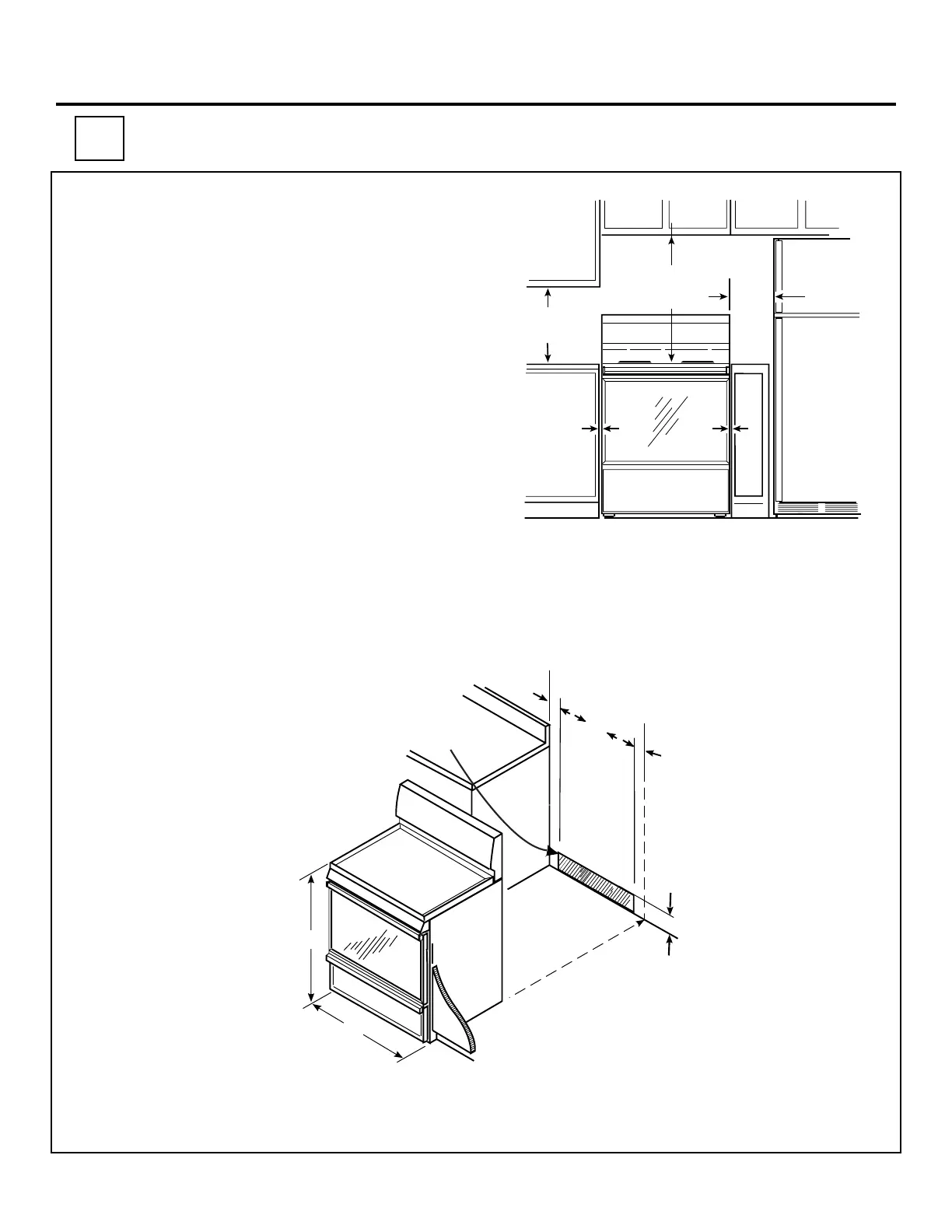

Installation Required Clearances
A
***6"
MIN
**30" MIN
**15" MIN
*0"
*0"
See Ilustrations below for all rough-in and spacing
dimensions.
The range may be placed with 0” clearance (flush) at
the back wall and side walls of the cabinet.
MINIMUM DIMENSIONS BETWEEN
COOKTOP, WALLS, AND ABOVE THE
COOKTOP.
* Make sure the wall covering, countertop
and cabinets around the range can with-
stand the heat (up to 200°F.) generated by
the range.
** Allow 30” Minimum clearance between
surface units and bottom of unprotected
wood or metal cabinet, and 15” Minimum
between countertop and adjacent cabinet
bottom.
*** Recommended spacing to heat sensitive
surfaces.
7 1/2"
30"
36"
2 1/2"
Acceptable electrical
outlet area.
Orient the electrical
receptacle so the
length is parallel to the floor.
25"
2 1/2"
NOTE: Use a 4 foot power cord to prevent interference
with the storage drawer. Power cords 4.5 or 6 foot long
may have to be dressed to allow for proper drawer closing.
