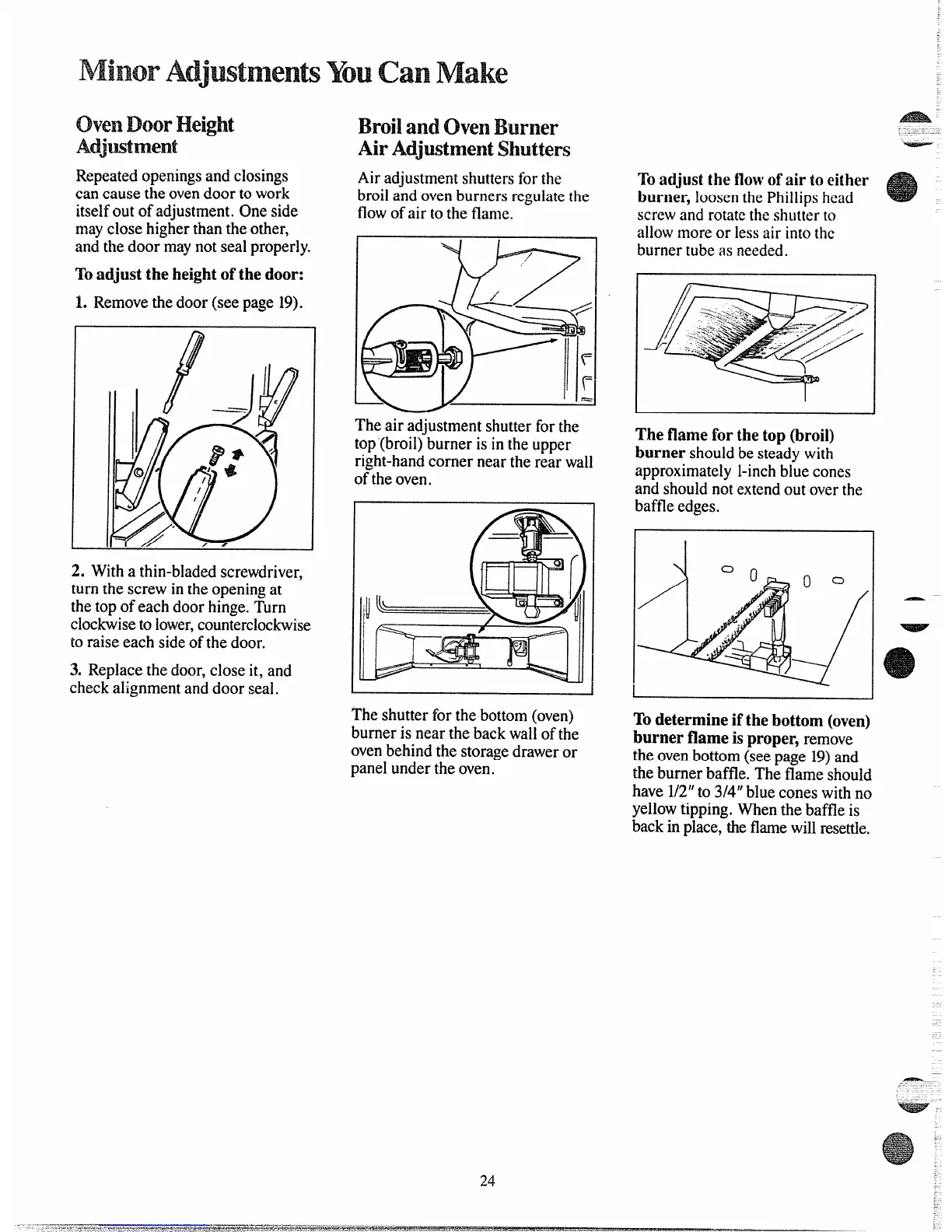

h4inorAdjwtmen@YouCanMake
ovenDoorHeight
Adjmtment
Repeatedopeningsandclosings
cancausetheovendoortowork
itselfoutofadjustment.Oneside
mayclosehigherthantheother,
andthedoormaynotsealproperly.
BroilandovenBtwner
AirAdjwtmentShutters
Airadjustmentshuttersforthe
broilandovenburnersregulatethe
flowofair totheflame.
T’ adjusttheheightofthedoor:
L Removethedoor(seepage19).
Theairadjustmentshutterforthe
top(broil;burneris intheupper
right-handcomerneartherearwall
of_theoven.
2. Withathin-bladedscrewdriver,
turnthescrewintheopeningat
thetopofeachdoorhinge.Turn
clockwisetolower,counterclockwise
toraiseeachsideofthedoor.
3. Replacethedoor,closeit, and
checkalignmentanddoorseal.
Theshutterforthebottom(oven)
burneris nearthebackwallofthe
ovenbehindthestoragedraweror
panelundertheoven,
24
TOadjusttheflowofairtoeither
burner,kmsenthePhillips
head
screwandrotatetheshutterto
allowmoreor lessair intothe
burnertubeasneeded.
Theflameforthetop(broil)
burnershouldbesteadywith
approximatelyl-inchbluecones
andshouldnotextendoutoverthe
baffleedges.
Todetermineifthebottom(oven)
burnerflameisproper,remove
theovenbottom(seepage19)and
theburnerbaffle.Theflameshould
have1/2”to3/4”blueconeswithno
yellowtipping.Whenthebaffleis
backinplace,theflamewillresettle.
